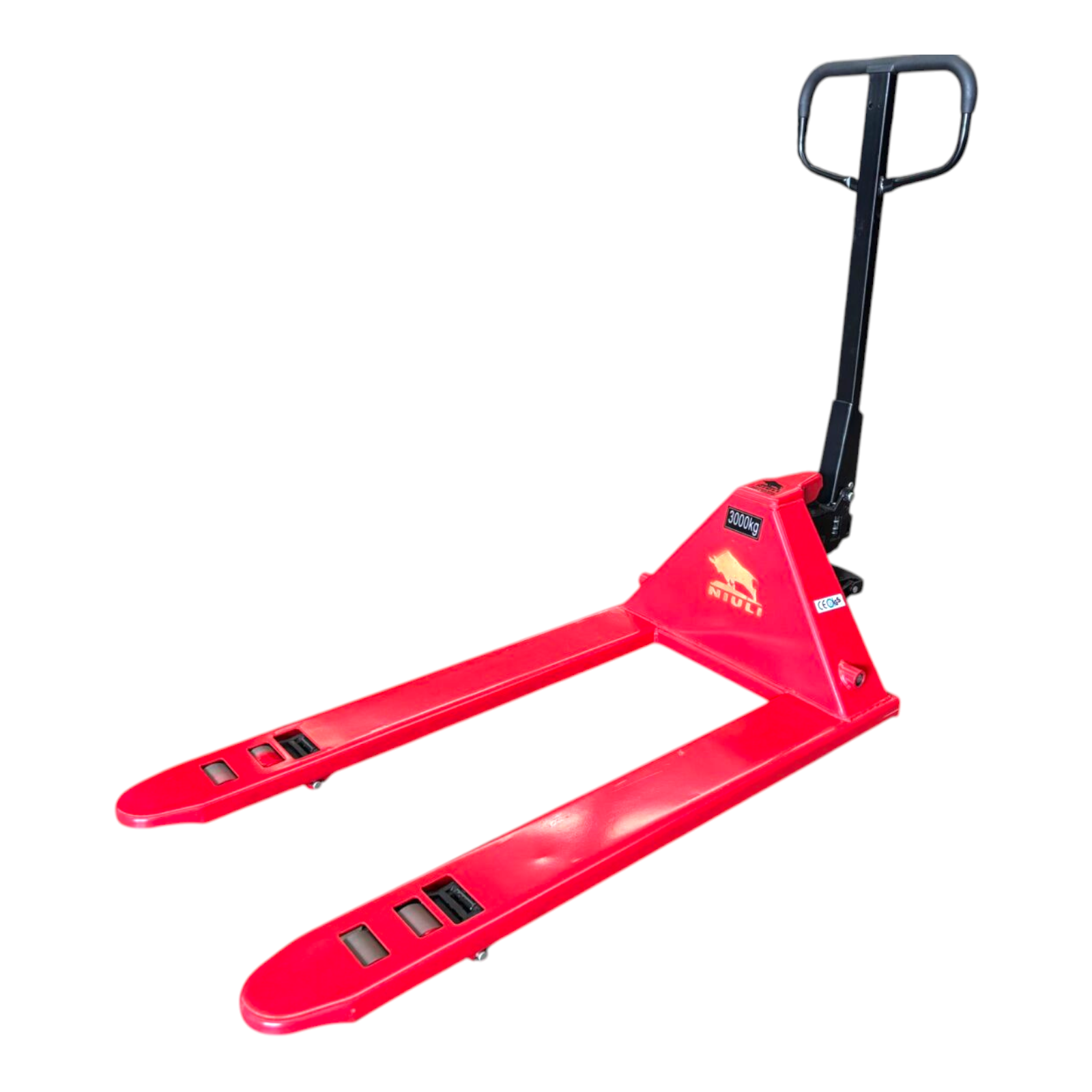

The Niuli S30L is a 3,000 kg capacity standard low profile manual pallet jack with a 65 mm minimum fork height - 20 mm lower than standard pallet jacks. Designed for low-clearance pallets, equipment, machinery, and skids where standard 85 mm forks can't fit underneath. The 685 mm standard fork width fits Australian Standard, CHEP, and Loscam pallets.
Dual front polyurethane wheels provide non-marking, anti-slip operation. Also available in narrow width (N25L – 550 mm) and short narrow (SN25L – 700 mm forks).
Why buyers choose the S30L
65 mm Low Profile Entry
Gets under loads with restricted ground clearance that standard 85 mm forks can't reach. Ideal for low pallets, machinery bases, skids, and equipment with minimal lifting points.
3,000 kg Capacity
500 kg more capacity than the narrow N25L variant. Handles heavier machinery, loaded pallets, and industrial equipment in the standard 685 mm width.
Standard 685 mm Width
Fits Australian Standard pallets, CHEP pallets, Loscam pallets, and Euro pallets. The go-to width for general warehouse use with low-clearance loads.

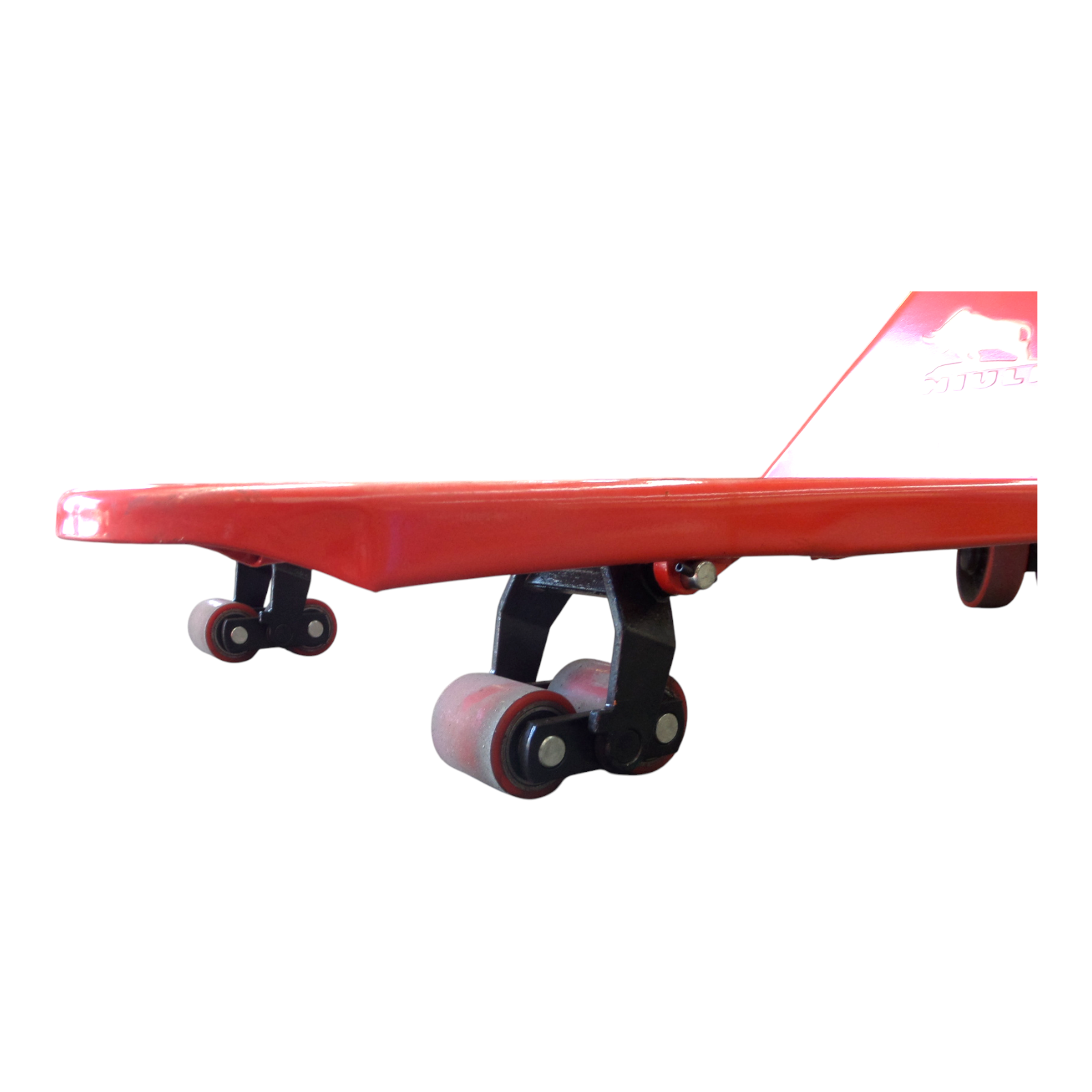

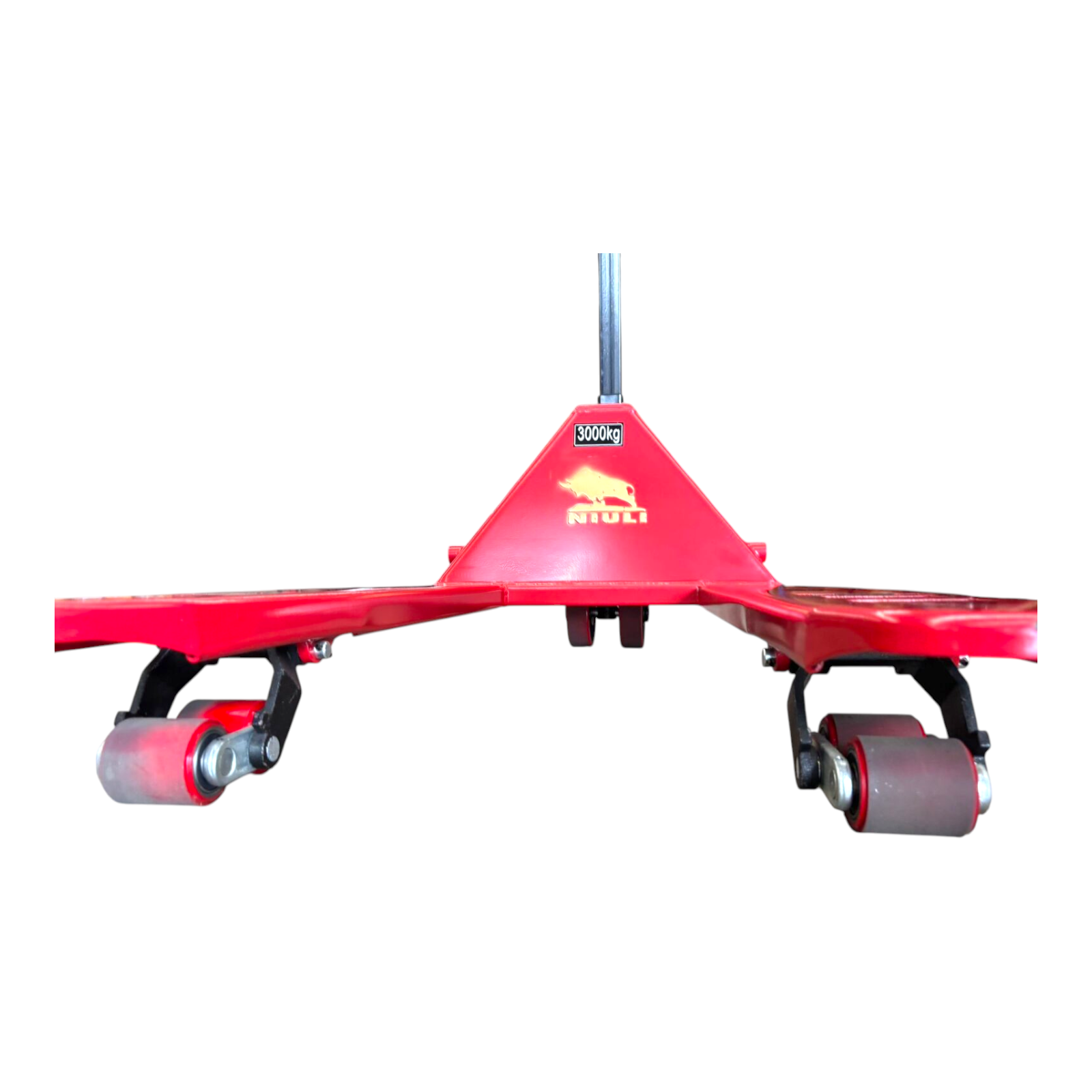

Dual Front Polyurethane Wheels
Non-marking, smooth drive, anti-slip. Dual front configuration provides stable tracking under load.
Specifications
| Specification |
Value |
| Load Capacity |
3,000 kg |
| Fork Length |
1,150 mm |
| Forks Outer Width |
685 mm (Standard) |
| Clearance Between Forks |
365 mm |
| Min Fork Height |
65 mm (low profile) |
| Max Fork Height |
180 mm |
| Wheel Material |
Polyurethane - non-marking, anti-slip |
| Wheel Configuration |
Dual front |
Dimensions & Weight
| Measurement |
Value |
| Overall Dimensions (L × W × H) |
155 × 68.5 × 124 cm |
| Unit Weight |
73 kg |
| Shipping Dimensions (skid, handle off) |
168 × 70 × 58 cm |
| Shipping Weight |
83 kg |
About Niuli
Niuli Machinery Manufacture Co., Ltd. is a specialist material handling equipment manufacturer founded in 1999 and based in Heshan City, Guangdong Province, China. Operating from a 330,000 m² production facility certified to ISO 9001:2015, Niuli exports to more than 120 countries and produces over 100 models of material handling equipment.
