The Niuli NA25 is a narrow-body manual pallet jack rated up to 2,500 kg (5,511 lbs). With a 550 mm outer fork width and 230 mm clearance between the forks, it's built for Euro-style pallets, custom-made narrow pallets, and skids that a standard-width pallet jack can't access.

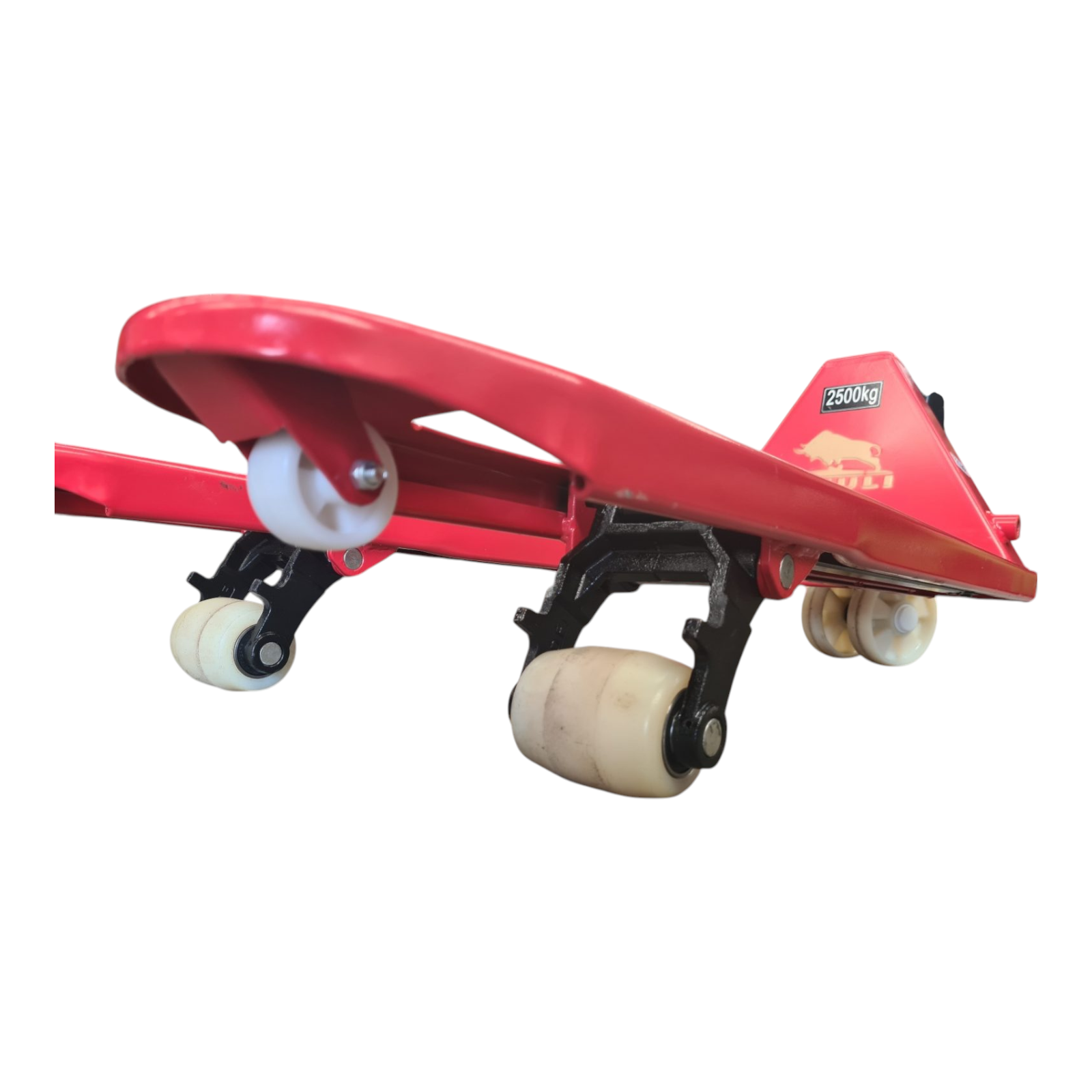

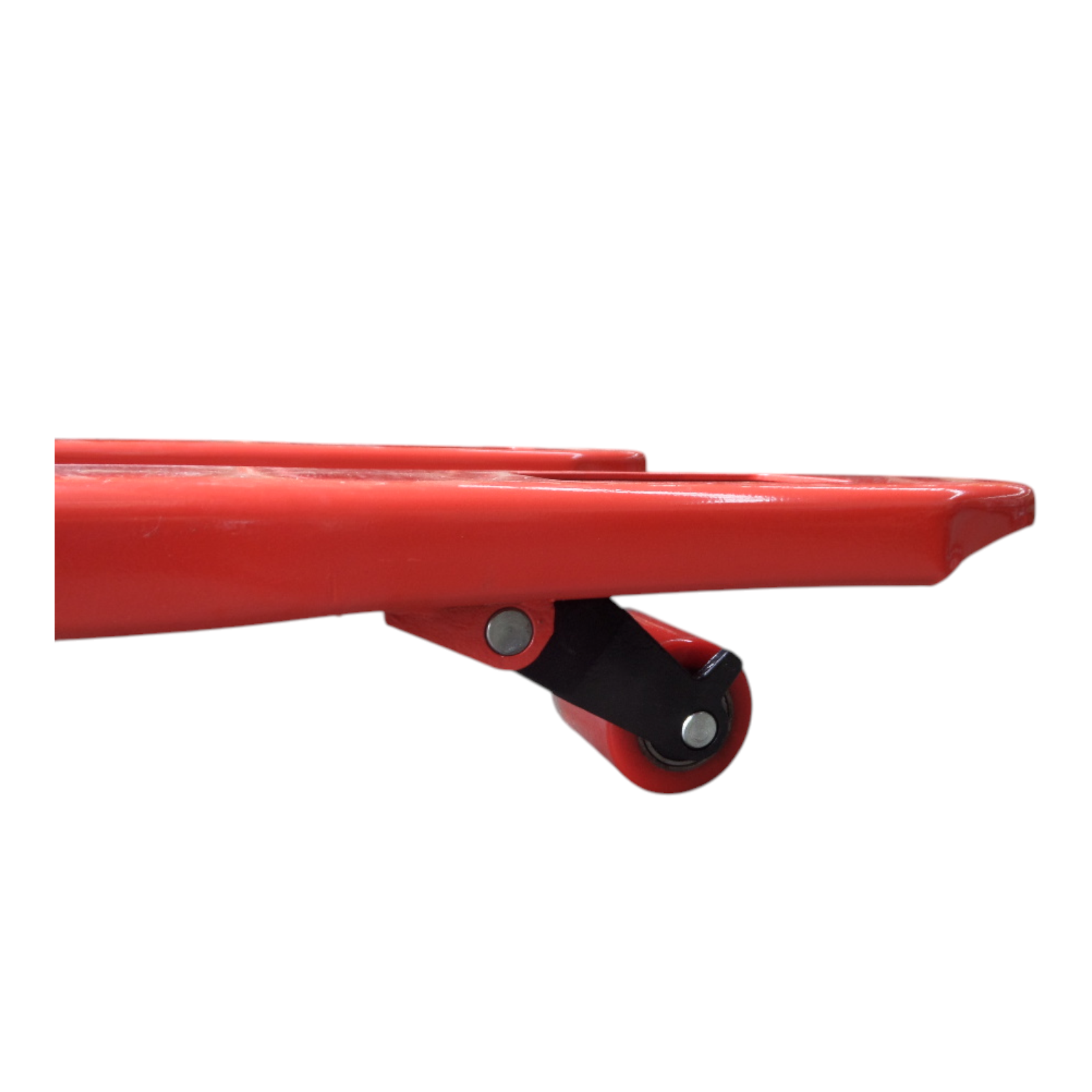

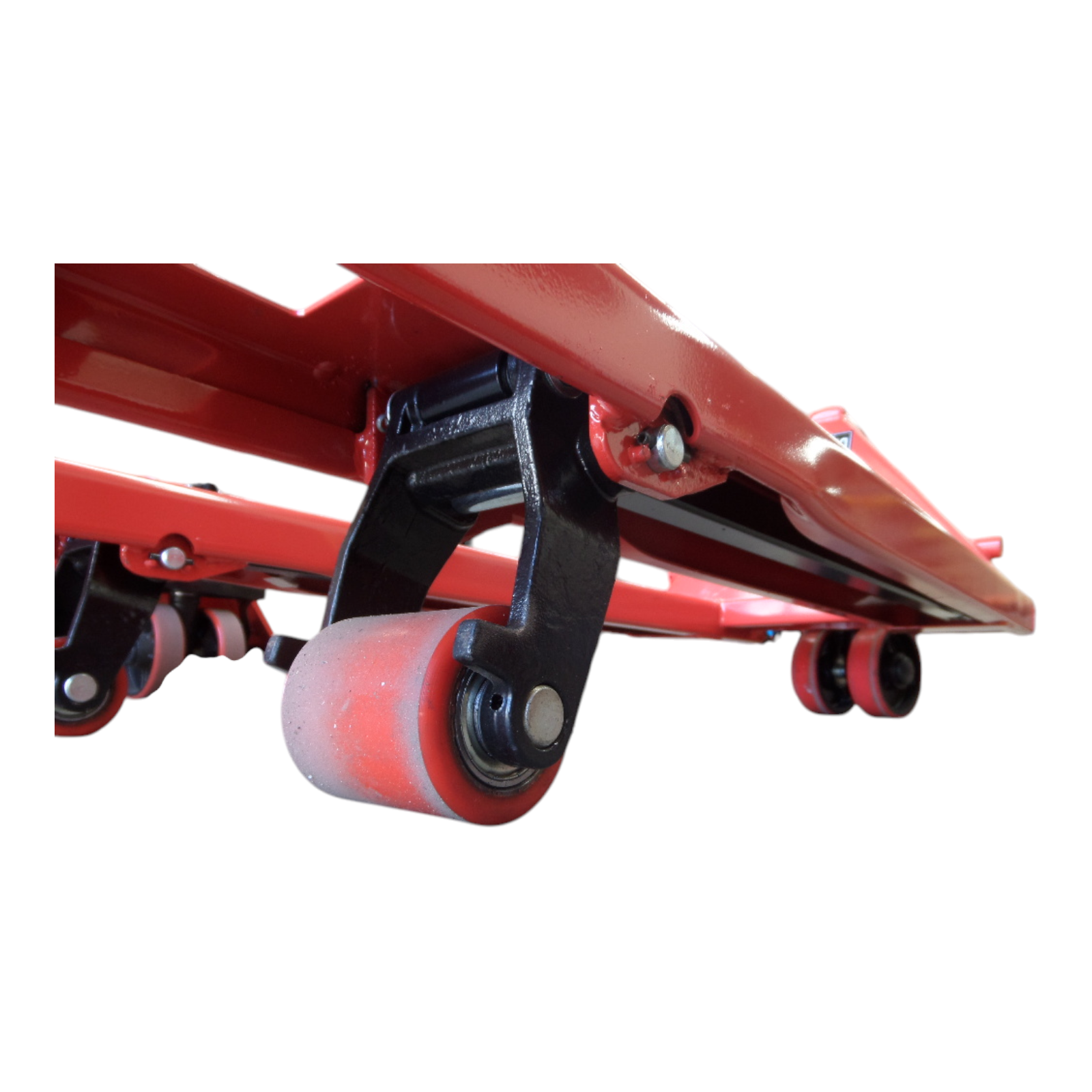

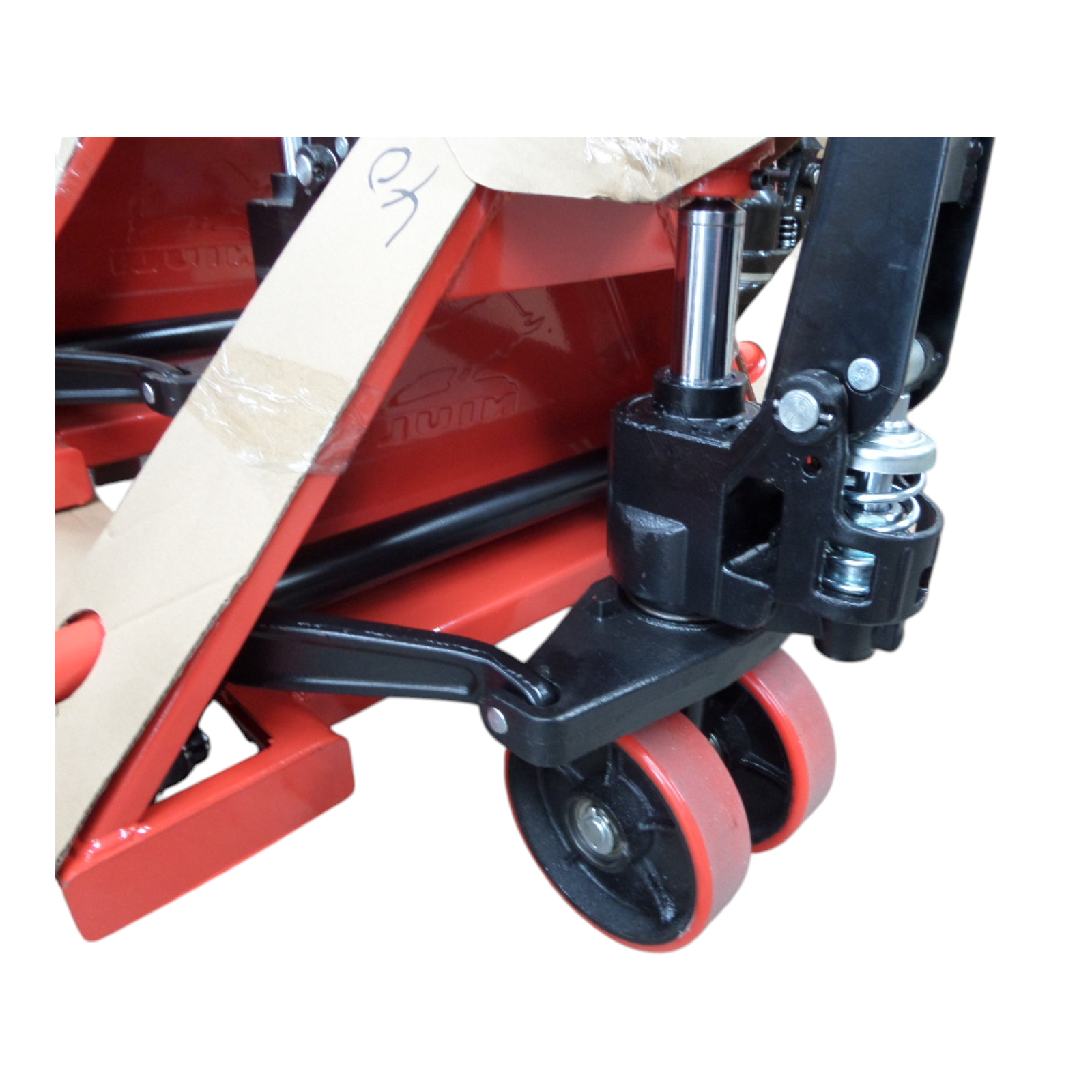

Polyurethane wheels in a single front configuration keep floors non-marked, deliver a smooth drive, and provide anti-slip grip across the load range. At 67 kg the jack itself is manageable for one-person operation.
Why buyers choose the NA25
Fits Narrow Loads The 550 mm outer fork width is specifically sized for Euro pallets (1,200 × 800 mm), custom-built narrow pallets, and skids that wider-frame jacks can't enter. The 1,150 mm fork length also accommodates Australian Standard / CHEP pallets (1,165 × 1,165 mm) with standard overhang.
Non-Marking on Finished Flooring Polyurethane wheels leave no marks on concrete, tiles, or epoxy-coated floors — ideal for retail back-of-house, showrooms, clean manufacturing areas, and polished warehouse floors.
Manoeuvrable in Tight Spaces The single front wheel configuration pivots cleanly in confined areas, working well in aisle-constrained warehouses, retail stockrooms, and custom-built storage layouts.
Low-Entry Forks The 85 mm minimum fork height allows the forks to slide into standard pallet openings without pre-lifting. Maximum raised fork height is 195 mm.
Proven Manufacturer Built by Niuli Machinery Manufacture Co., producing material handling equipment since 1999 and exporting to over 120 countries.
Pallet Compatibility
✔ Euro pallets — 1,200 × 800 mm
✔ Australian Standard / CHEP pallets - 1,165 × 1,165 mm
✔ Custom-made narrow pallets
✔ Skids
Specifications
| Specification |
Value |
| Load Capacity |
2,500 kg |
| Fork Length |
1,150 mm |
| Forks Outer Width |
550 mm |
| Clearance Between Forks |
230 mm |
| Minimum Fork Height |
85 mm |
| Maximum Fork Height |
195 mm |
| Wheel Material |
Polyurethane - non-marking, anti-slip |
| Wheel Configuration |
Single front |
Dimensions & Weight
| Measurement |
Value |
| Overall Dimensions (L × W × H) |
155 × 55 × 124 cm |
| Jack Weight |
67 kg |
| Shipping Dimensions (skid, handle off) |
168 × 60 × 60 cm |
| Shipping Weight |
85 kg |
About Niuli
Niuli Machinery Manufacture Co., Ltd. is a specialist material handling equipment manufacturer founded in 1999 and based in Heshan City, Guangdong Province, China. Operating from a 330,000 m² production facility certified to ISO 9001:2015, Niuli exports to more than 120 countries and produces over 100 models of material handling equipment.
