The Niuli SM5 is a 500 kg capacity mini manual pallet stacker with a 1,200 mm maximum lift height. The most compact stacker in the Niuli range, the SM5 is designed for lifting small equipment, machinery, safes, and cartons in workshops, stockrooms, and retail environments where space is limited.
Fully manual operation with hand or foot pedal pump for lifting and manual push/pull for movement. At 122 kg and 125 × 58.5 × 165 cm, the SM5 stores in tight spaces and requires minimal floor area when not in use.
Why buyers choose the SM5
Most Compact Stacker in the Range
At 122 kg and 125 × 58.5 cm footprint, the SM5 fits in spaces where larger stackers can't. Ideal for small workshops, retail stockrooms, and one-person operations.
1,200 mm Lift Height
Lifts loads from 100 mm to 1,200 mm with 300 kg retained at maximum height and 500 kg at ground level. Reaches workbench height and low-level racking.
Entry-Level Price Point
The most affordable stacker in the Niuli range. A practical first stacker for small businesses that need occasional elevated lifting without forklift investment.
Fully Manual - No Charging Required
Hand or foot pedal pump for lifting. Manual push/pull for floor movement. No batteries, no charging, no electrical maintenance.
Note: Narrow base legs cannot enter closed (double-faced) pallets - pallet must be one-faced (open pallet).
Specifications
| Specification |
Value |
| Load Capacity |
500 kg (ground) / 300 kg (at 1,200 mm) |
| Operation Type |
Fully Manual - hand/foot pedal pump, manual push/pull |
| Max Lift Height |
1,200 mm |
| Min Fork Height |
100 mm |
| Fork Length |
760 mm |
| Fork Width |
80 mm |
| Adjustable Forks Width |
180–360 mm (outer tips) |
| Clearance Between Forks |
0–180 mm |
| Clearance Between Legs |
405 mm |

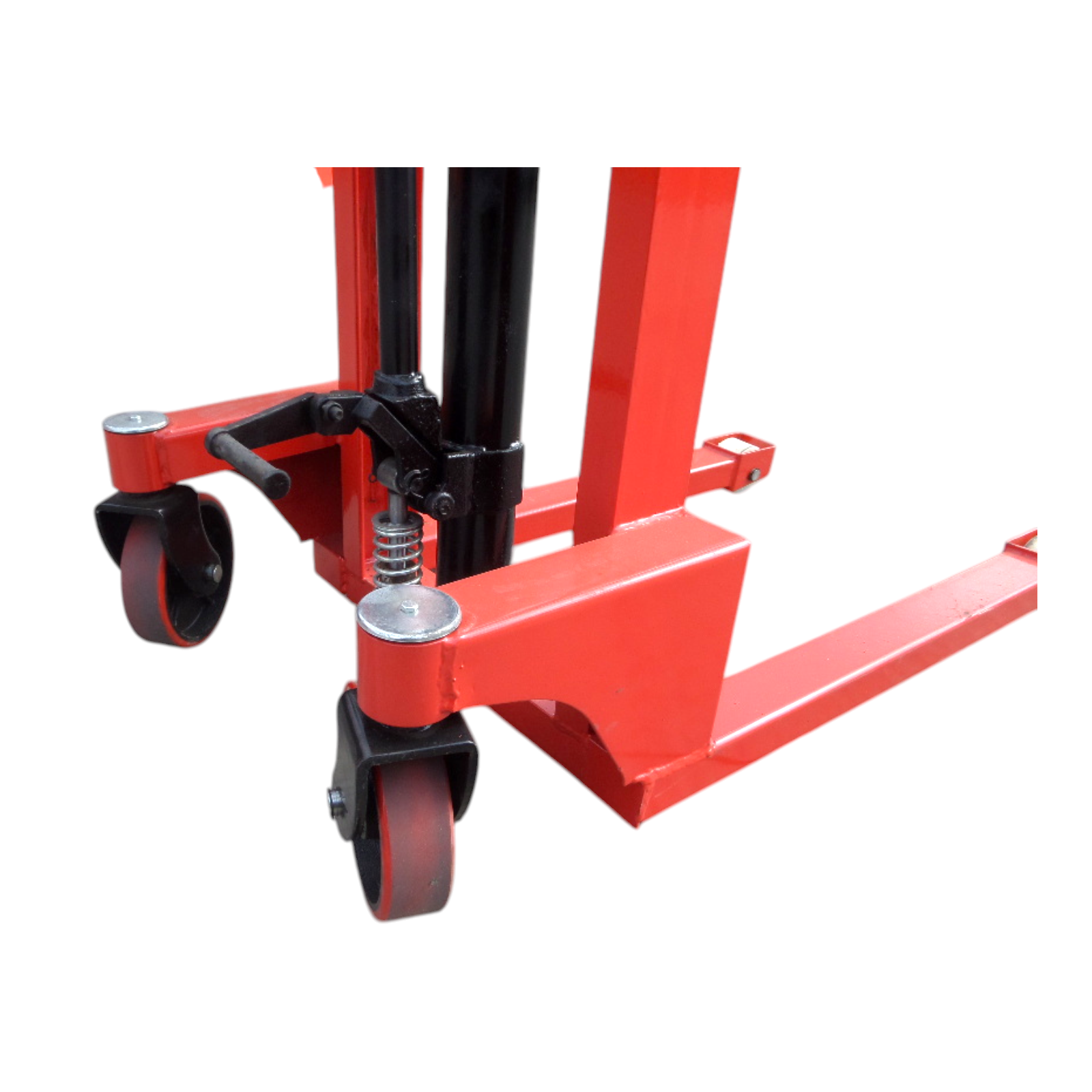

| Front Wheels |
Ø80 × 50 mm |
| Rear Wheels |
Ø180 × 50 mm |
Dimensions & Weight
| Measurement |
Value |
| Overall Dimensions (L × W × H) |
125 × 58.5 × 165 cm |
| Unit Weight |
122 kg |
| Shipping Dimensions (skid) |
155 × 100 × 180 cm |
| Shipping Weight |
148 kg |
About Niuli
Niuli Machinery Manufacture Co., Ltd. is a specialist material handling equipment manufacturer founded in 1999 and based in Heshan City, Guangdong Province, China. Operating from a 330,000 m² production facility certified to ISO 9001:2015, Niuli exports to more than 120 countries and produces over 100 models of material handling equipment.
