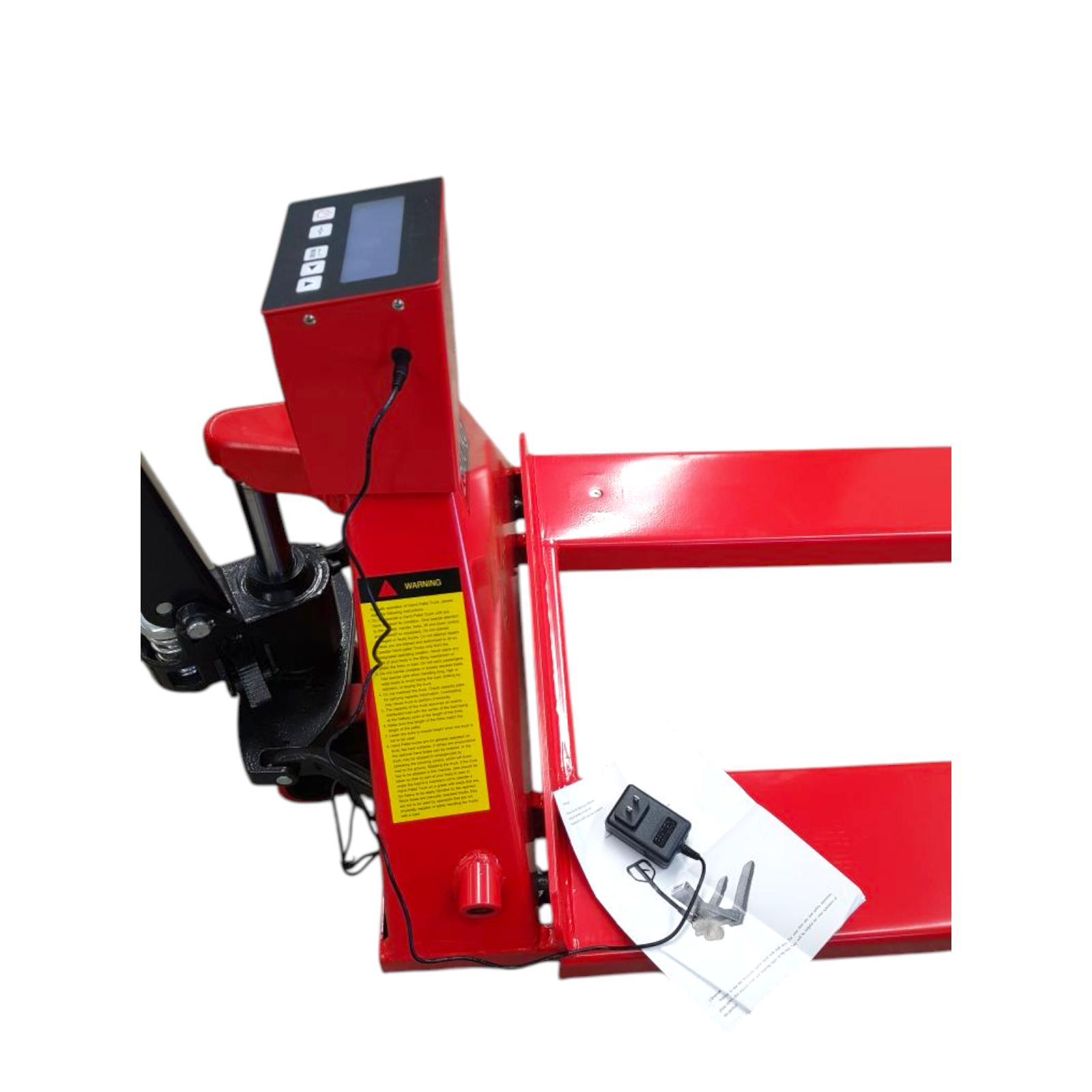

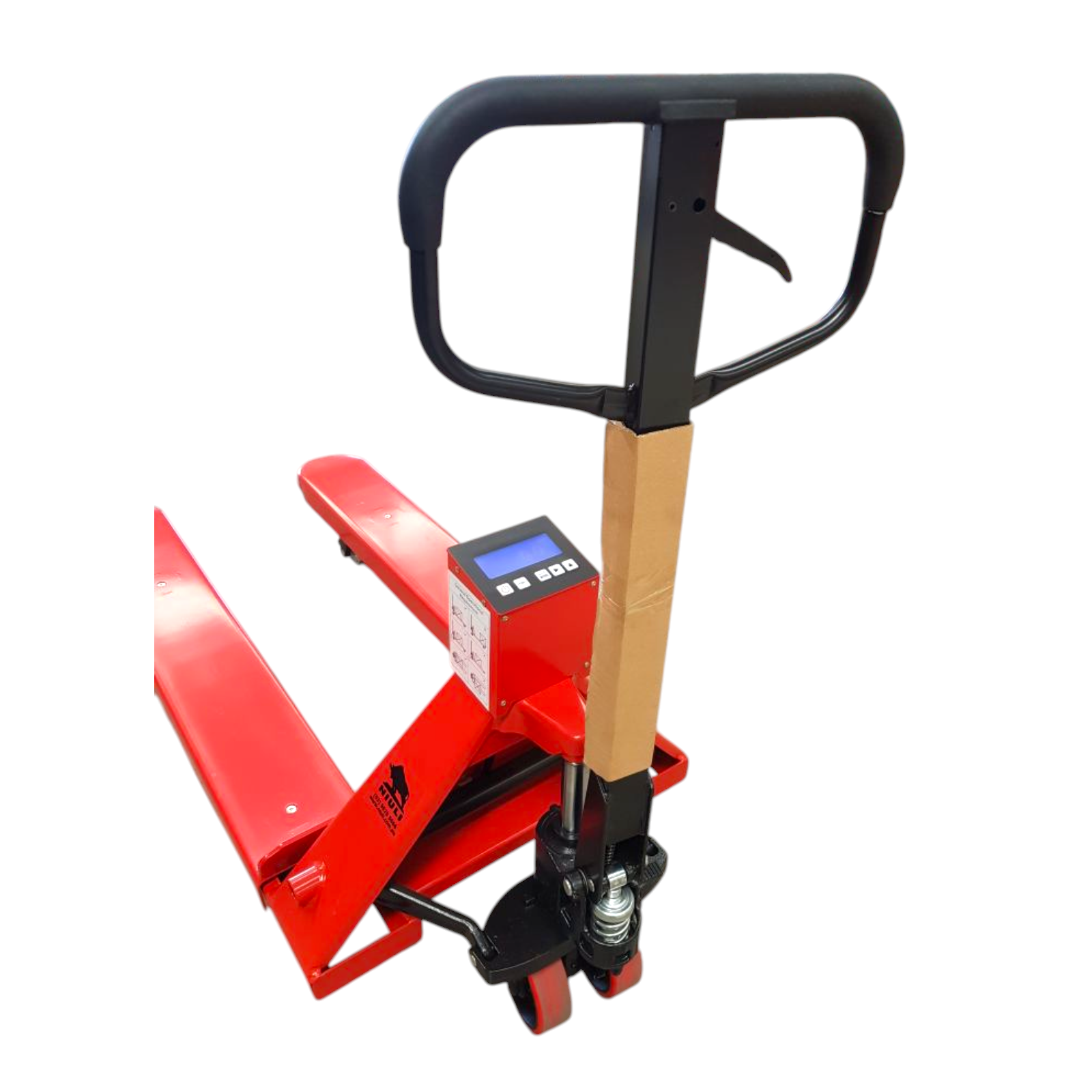

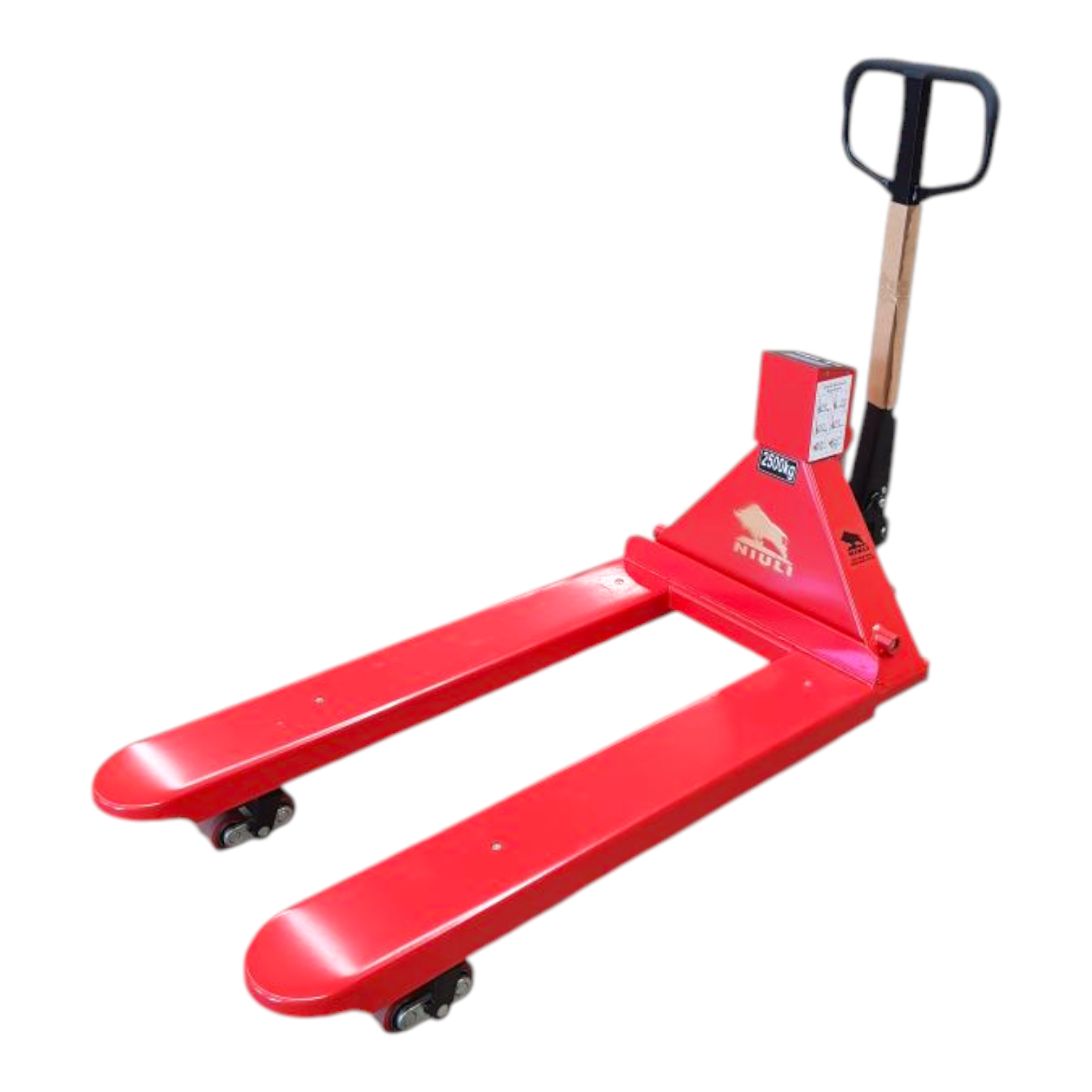

The Niuli PDS25 is a 2,500 kg capacity manual pallet jack with a built-in weighing scale, allowing operators to weigh loads as they lift - no separate platform scale required. The scale measures in 0.5 kg increments, providing an economical weighing solution for warehouse dispatch, incoming goods verification, and inventory management.
Available in Standard (685 mm) or Narrow (550 mm) fork width. Dual front polyurethane wheels provide non-marking, anti-slip operation. Suitable for use with open one-faced pallets, plastic pallets, skids, and custom pallets.
Why buyers choose the PDS25
Built-In Weighing Scale

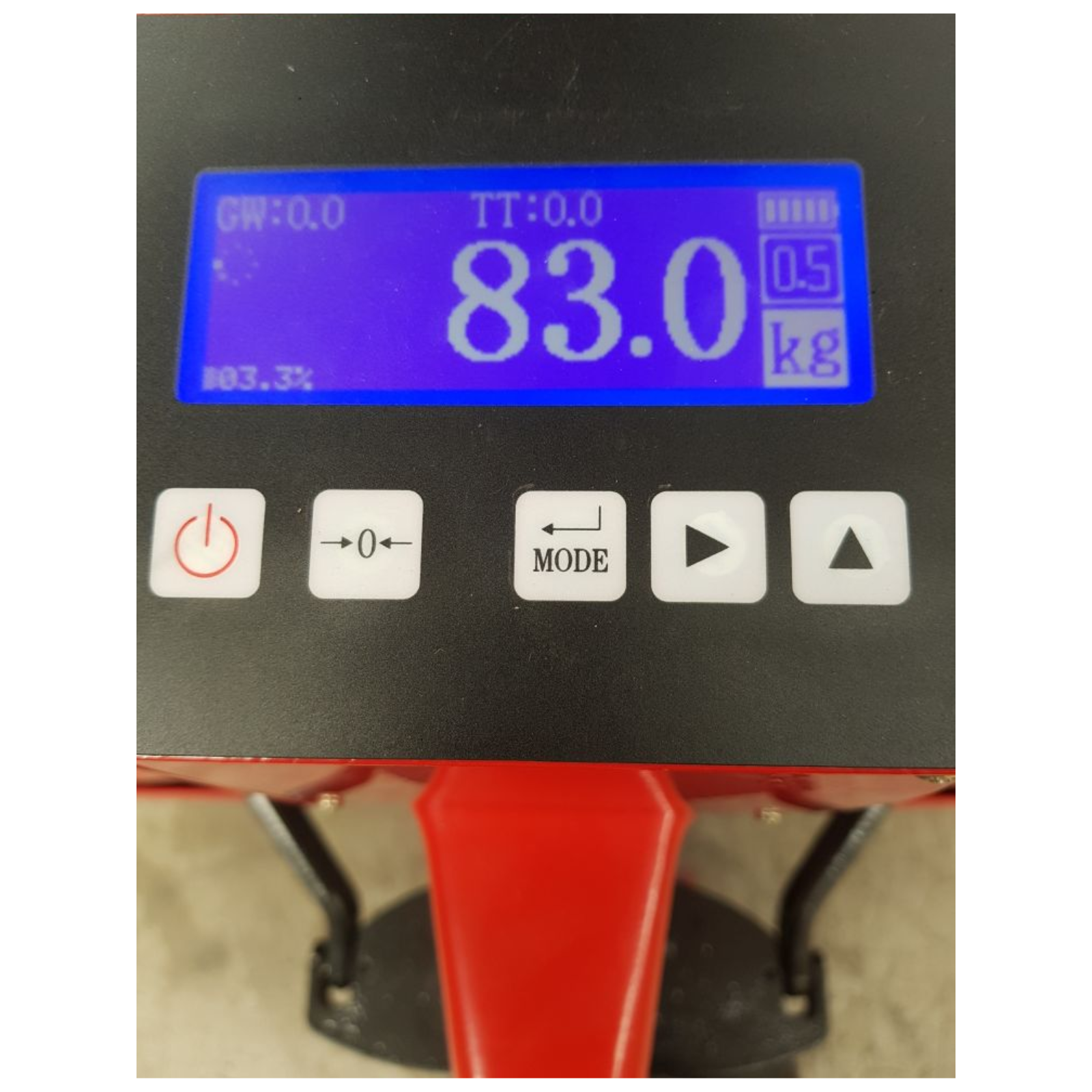

Weigh palletised loads as you lift - no detour to a separate platform scale. 0.5 kg increment measurement for accurate dispatch weights, incoming goods checks, and stock management.
Standard or Narrow Width
Choose Standard (685 mm) for Australian Standard, CHEP, and Loscam pallets. Choose Narrow (550 mm) for Euro pallets and custom narrow pallets.
2,500 kg Capacity
Full 2,500 kg load capacity covers the entire range of standard pallet weights while providing integrated weighing functionality.
Non-Marking Polyurethane Wheels

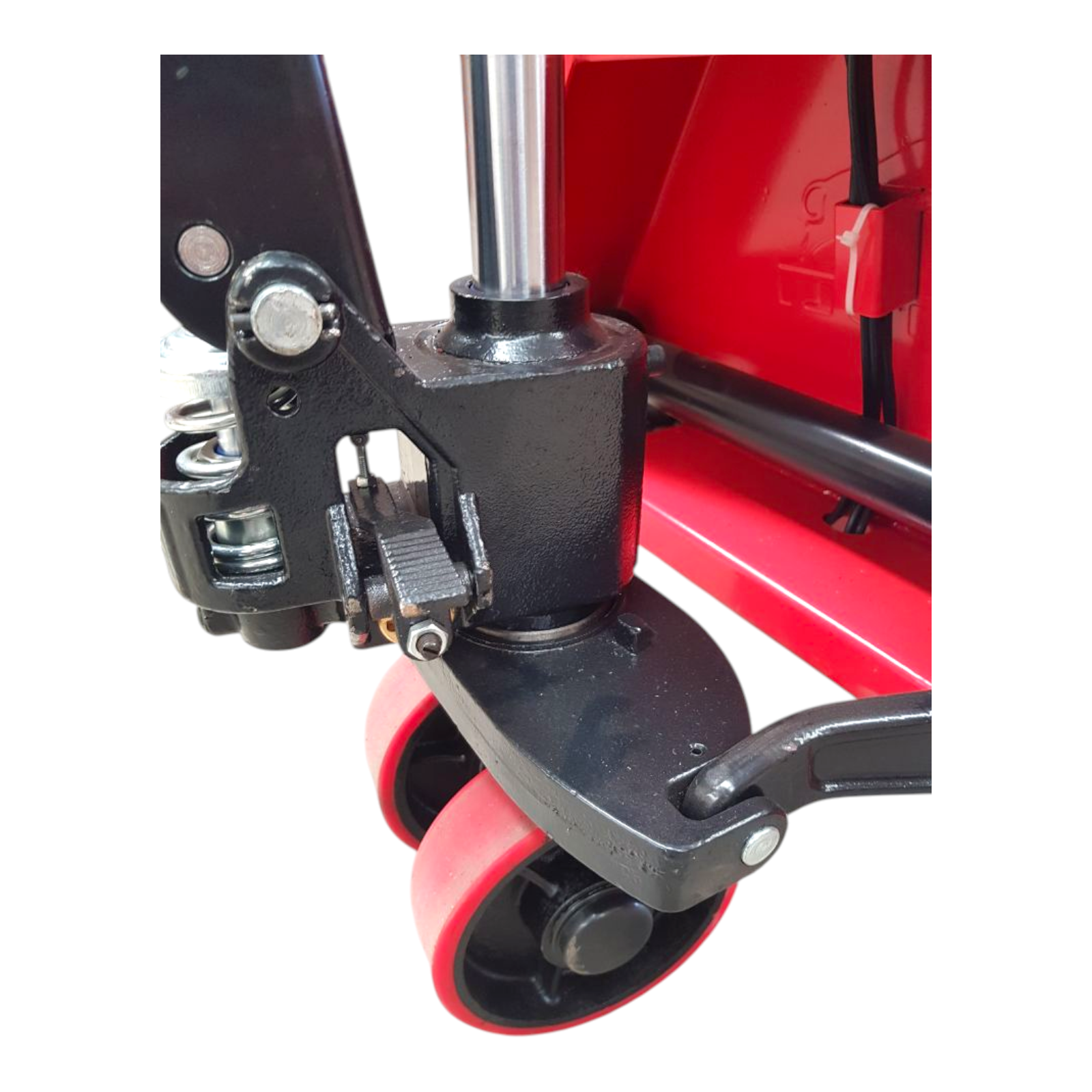

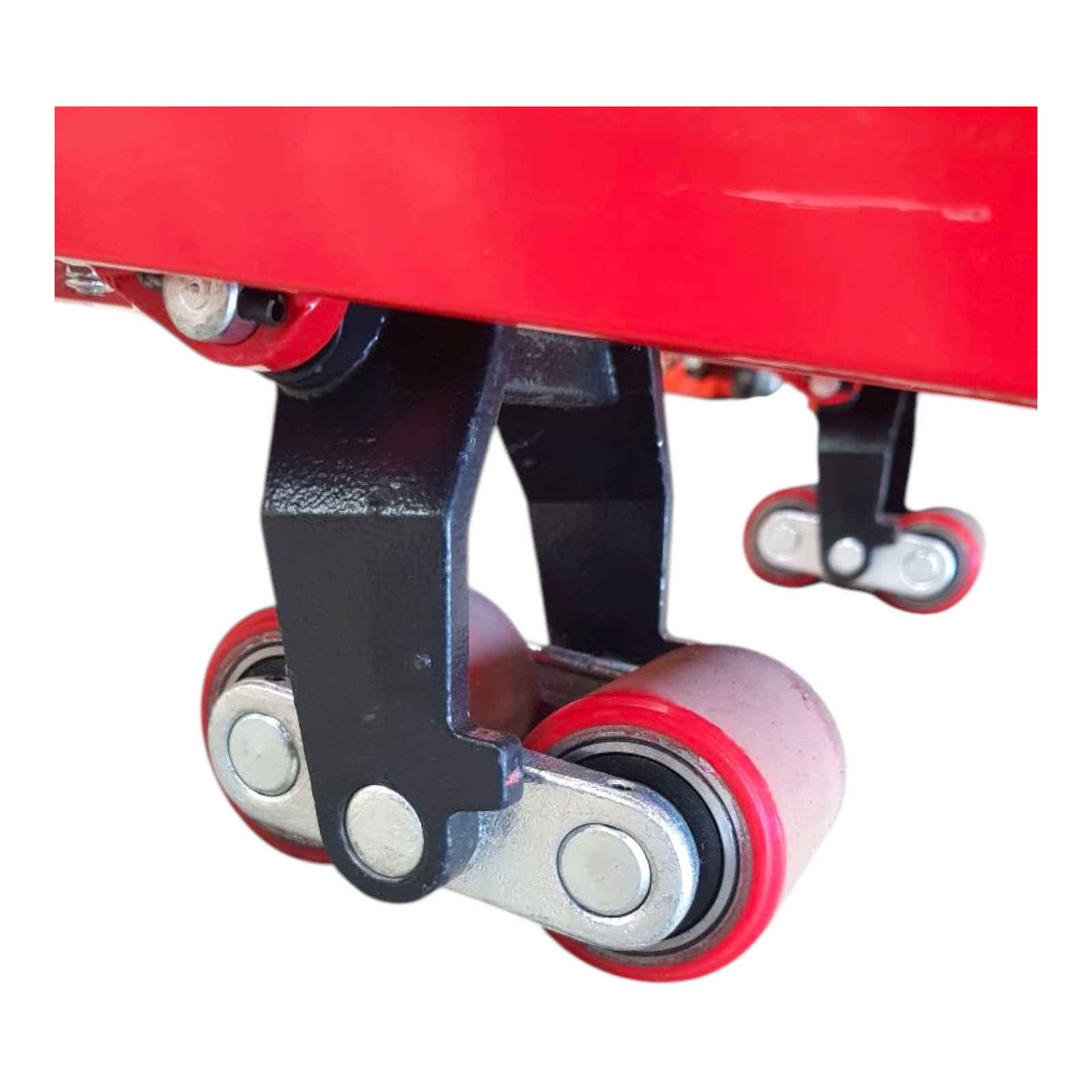

Dual front polyurethane wheels provide smooth drive and anti-slip grip without marking floors.
Note: Suitable only for open one-faced pallets.
Specifications — Standard (PDS25)
| Specification |
Value |
| Load Capacity |
2,500 kg |
| Scale Increment |
0.5 kg |
| Fork Length |
1,150 mm |
| Forks Outer Width |
685 mm (Standard) - Narrow 550 mm also available |
| Clearance Between Forks |
320 mm |
| Min Fork Height |
85 mm |
| Max Fork Height |
190 mm |
| Wheel Material |
Polyurethane - non-marking, anti-slip |
| Wheel Configuration |
Dual front |
Dimensions & Weight
| Measurement |
Value |
| Overall Dimensions (L × W × H) |
155 × 68.5 × 122 cm |
| Unit Weight |
112 kg |
| Shipping Dimensions (skid, handle off) |
168 × 100 × 85 cm |
| Shipping Weight |
135 kg |
About Niuli
Niuli Machinery Manufacture Co., Ltd. is a specialist material handling equipment manufacturer founded in 1999 and based in Heshan City, Guangdong Province, China. Operating from a 330,000 m² production facility certified to ISO 9001:2015, Niuli exports to more than 120 countries and produces over 100 models of material handling equipment.
