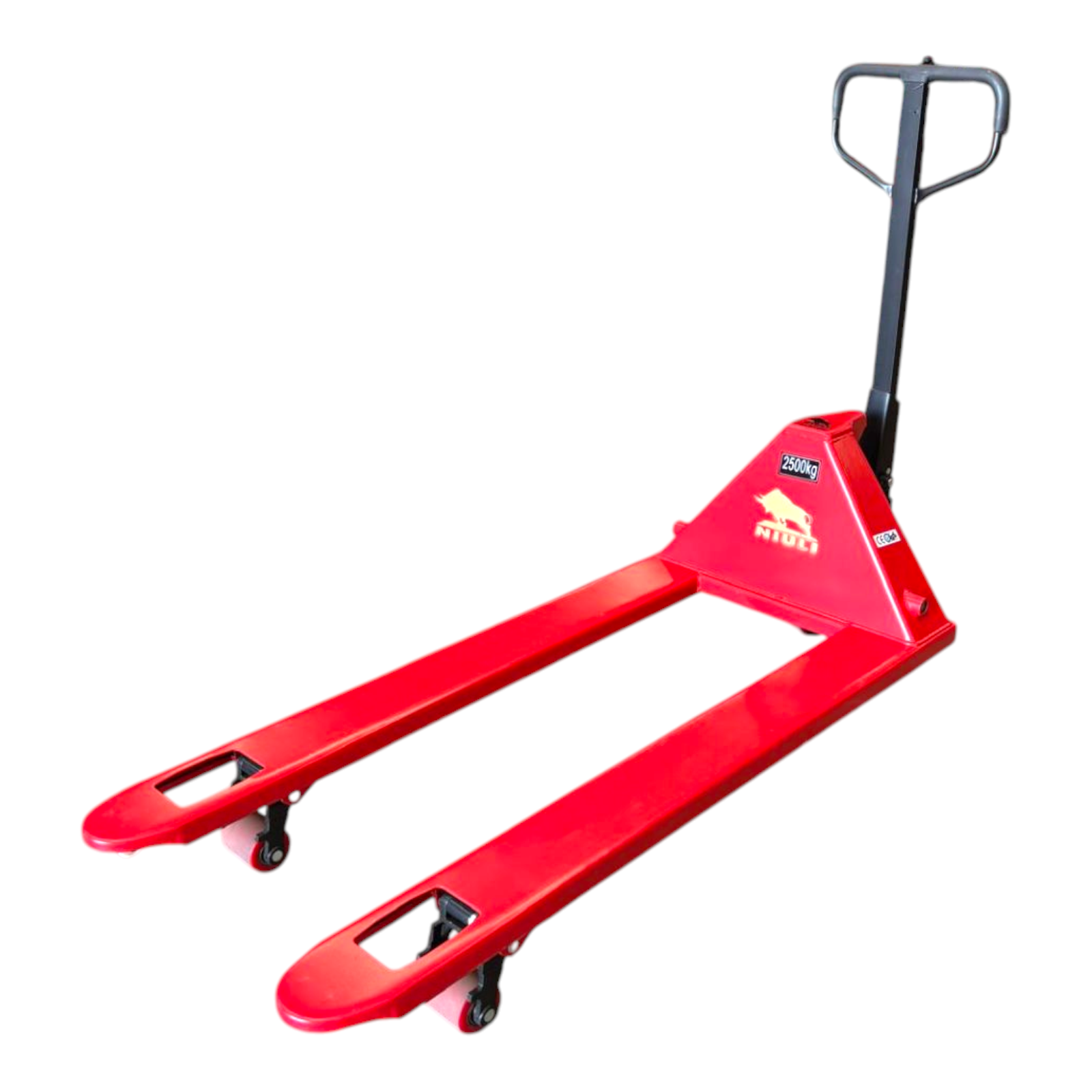

The Niuli EL140 is a 2,500 kg capacity extra long manual pallet jack with 1,400 mm forks. Built with a heavy-duty steel frame, the EL140 provides 250 mm of extra reach beyond the standard 1,150 mm - enough to fully support oversized pallets and long loads without the additional weight and bulk of the 1.6 m, 1.8 m, or 2.0 m models.

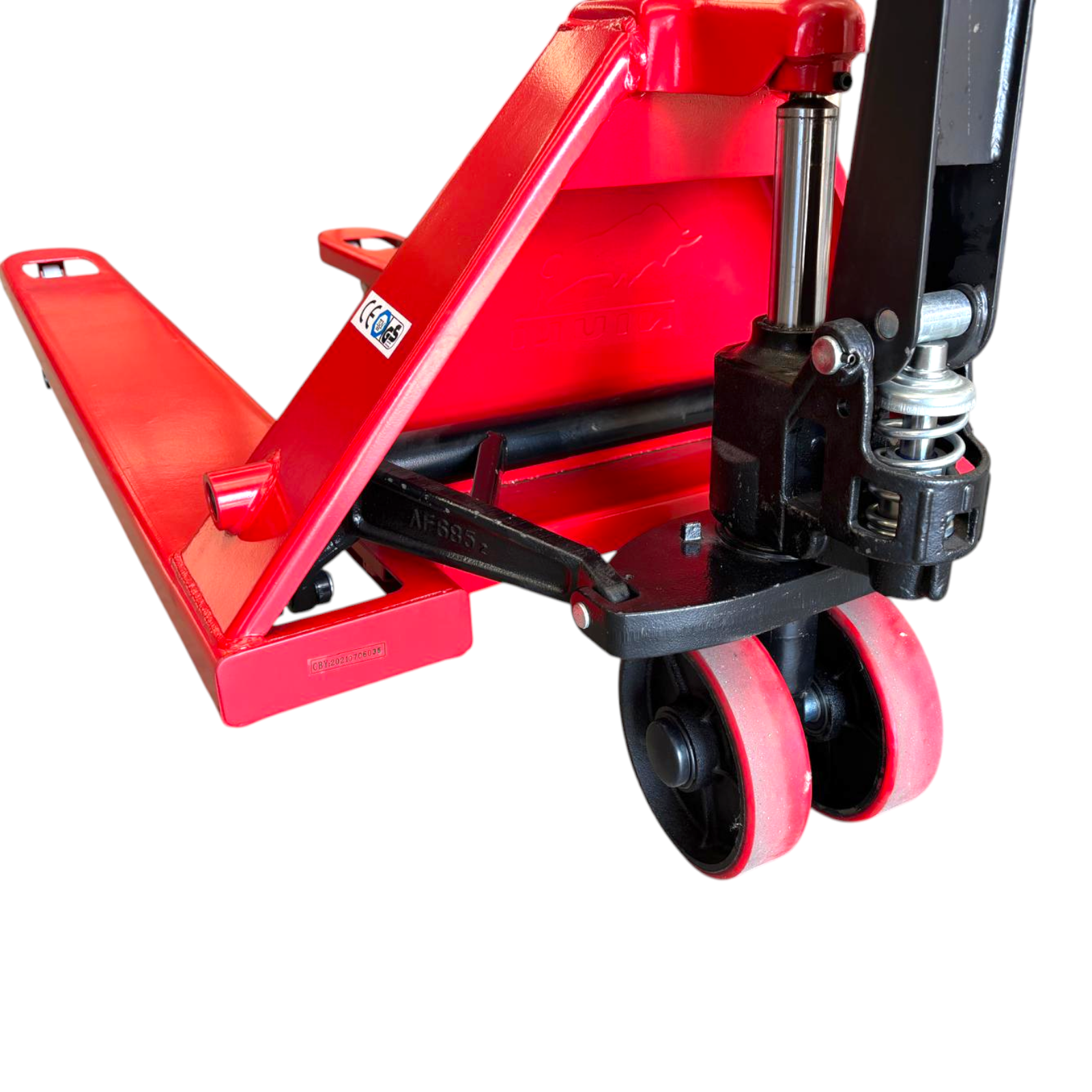

Pallet entry wheels make it easier to enter pallets. The 685 mm standard fork width fits Australian Standard, CHEP, and Loscam pallets. Single front polyurethane wheels provide non-marking, anti-slip operation.
Why buyers choose the EL140
1,400 mm Extra Long Forks
250 mm longer than standard 1,150 mm forks. The most practical upgrade for operations that occasionally handle oversized loads without needing significantly longer forks.
Full 2,500 kg Capacity
Retains the same 2,500 kg rated capacity as standard-length models - no capacity trade-off for the extra fork length.
Pallet Entry Wheels
Built-in pallet entry wheels at the fork tips make it easier to slide into pallets - reducing the physical effort of initial entry under load.
Lightest and Most Compact Extra Long
At 88 kg, the EL140 is the lightest extra long option and only 15 kg heavier than a standard-length pallet jack. Minimal size and weight trade-off for meaningful extra reach.
Important: Loading extra long pallet jacks with heavy loads from the front only will damage the unit. Always push all the way under the load.
Specifications
| Specification |
Value |
| Load Capacity |
2,500 kg |
| Fork Length |
1,400 mm |
| Forks Outer Width |
685 mm (Standard) |
| Clearance Between Forks |
365 mm |
| Min Fork Height |
85 mm |
| Max Fork Height |
195 mm |
| Pallet Entry Wheels |
Yes - fork tip mounted |
| Wheel Material |
Polyurethane - non-marking, anti-slip |
| Wheel Configuration |
Single front |
Dimensions & Weight
| Measurement |
Value |
| Overall Dimensions (L × W × H) |
170 × 68.5 × 123 cm |
| Unit Weight |
88 kg |
| Shipping Dimensions (skid) |
180 × 70 × 60 cm |
| Shipping Weight |
100 kg |
About Niuli
Niuli Machinery Manufacture Co., Ltd. is a specialist material handling equipment manufacturer founded in 1999 and based in Heshan City, Guangdong Province, China. Operating from a 330,000 m² production facility certified to ISO 9001:2015, Niuli exports to more than 120 countries and produces over 100 models of material handling equipment.
