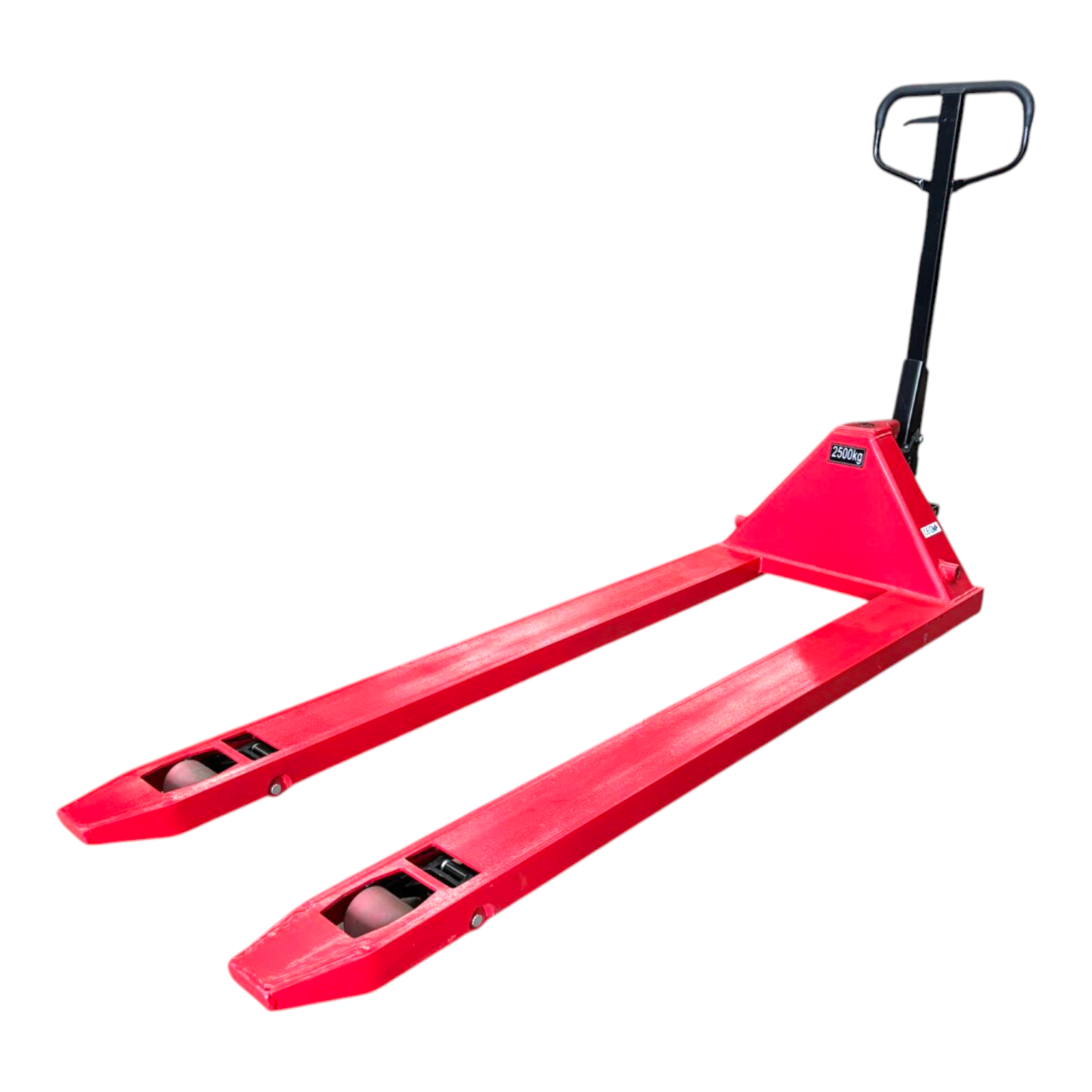

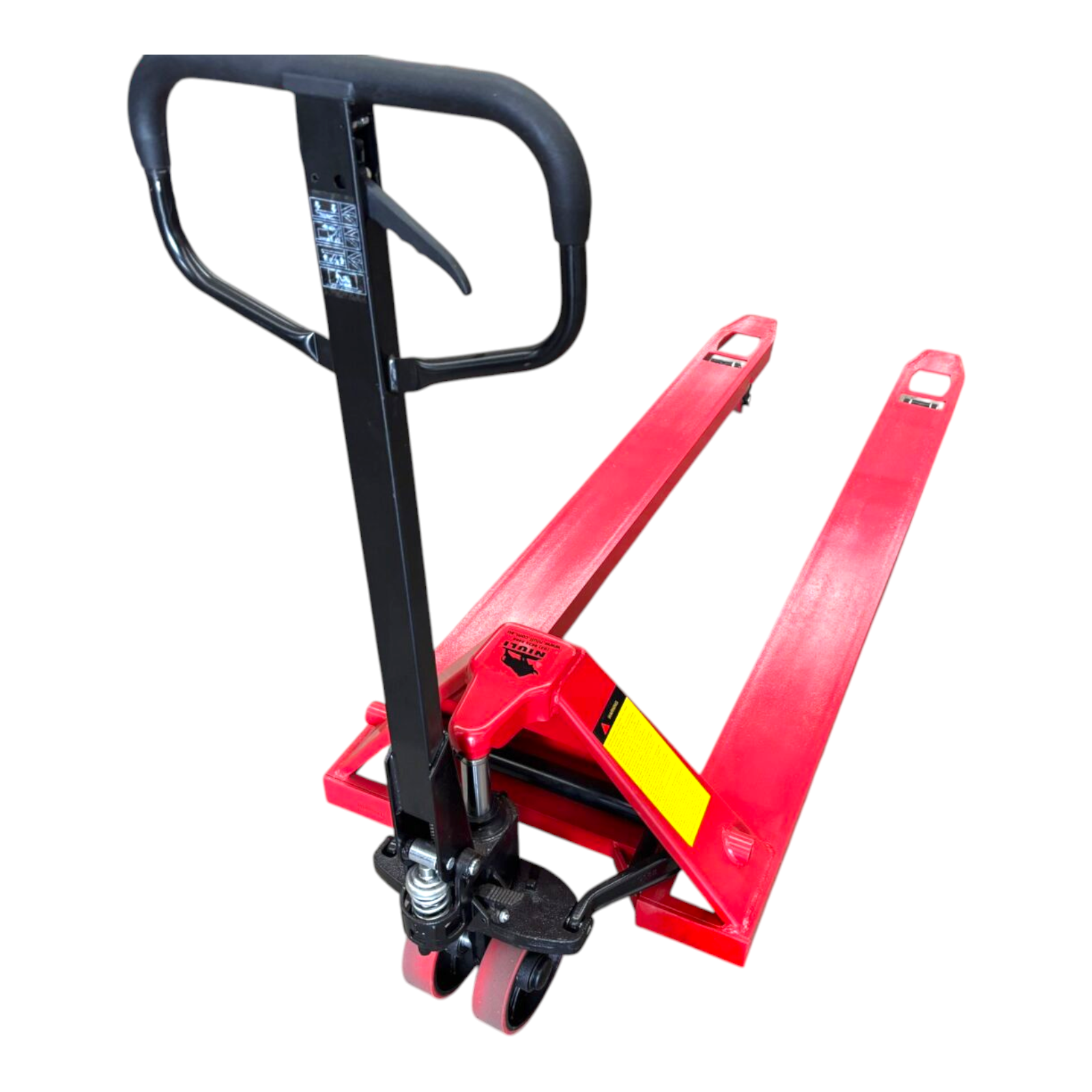

The Niuli EL180 is a 2,500 kg capacity extra long manual pallet jack with 1,800 mm forks. Built with extra heavy-duty 5 mm thick channel steel frame for long-term durability, the EL180 handles standard Australian-sized pallets, long custom pallets, formwork, furniture, machinery, and any load that benefits from extra fork reach beyond the standard 1,150 mm.

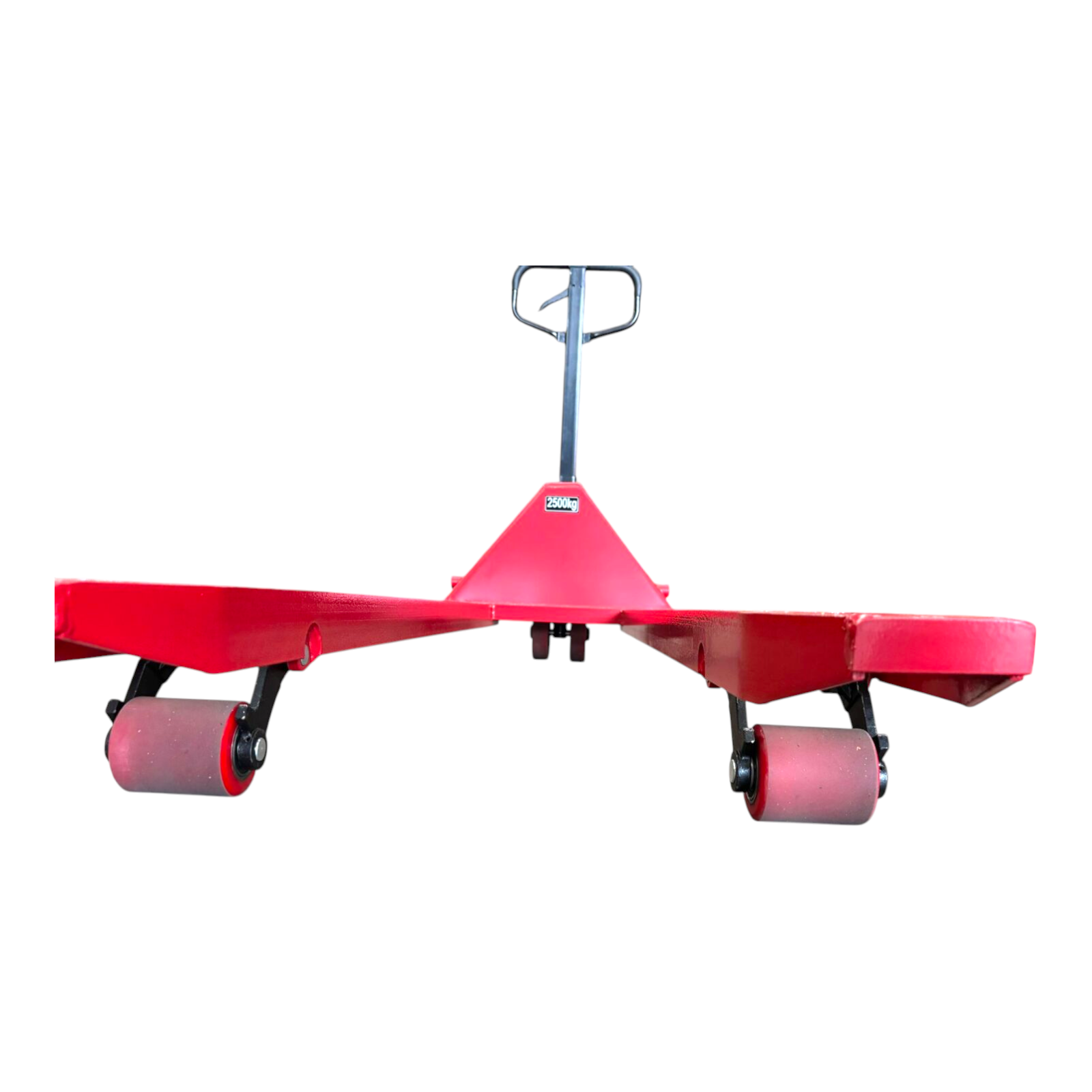

Available in Standard (685 mm) or Narrow (550 mm) fork width at the same price. Single front polyurethane wheels provide non-marking, anti-slip operation.
Why buyers choose the EL180
1,800 mm Extra Long Forks
650 mm longer than standard 1,150 mm forks. Handles long timber, steel sections, formwork panels, furniture, and custom pallets that extend beyond standard fork reach.
Full 2,500 kg Capacity
Retains the same 2,500 kg rated capacity as standard-length models - no capacity trade-off for the extra fork length.
5 mm Thick Channel Steel Frame
Extra heavy-duty 5 mm thick channel steel construction for structural rigidity across the extended fork length.
Standard or Narrow Width
Choose Standard (685 mm) for Australian Standard, CHEP, and Loscam pallets. Choose Narrow (550 mm) for Euro pallets and custom narrow loads. Both variants are the same price.
Important: Loading extra long pallet jacks with heavy loads from the front only will damage the unit. Always push all the way under the load.
Specifications
| Specification |
Standard (EL180) |
Narrow (EL180N) |
| Load Capacity |
2,500 kg |
| Fork Length |
1,800 mm |
| Forks Outer Width |
685 mm |
550 mm |
| Clearance Between Forks |
365 mm |
230 mm |
| Min Fork Height |
85 mm |
| Max Fork Height |
195 mm |
| Frame |
5 mm thick channel steel |
| Wheel Material |
Polyurethane - non-marking, anti-slip |
| Wheel Configuration |
Single front |
Dimensions & Weight
| Measurement |
Value |
| Overall Dimensions (L × W × H) |
210 × 68.5 × 123 cm |
| Unit Weight |
140 kg |
| Shipping Dimensions (skid) |
220 × 72 × 60 cm |
| Shipping Weight |
165 kg |
About Niuli
Niuli Machinery Manufacture Co., Ltd. is a specialist material handling equipment manufacturer founded in 1999 and based in Heshan City, Guangdong Province, China. Operating from a 330,000 m² production facility certified to ISO 9001:2015, Niuli exports to more than 120 countries and produces over 100 models of material handling equipment.
-
