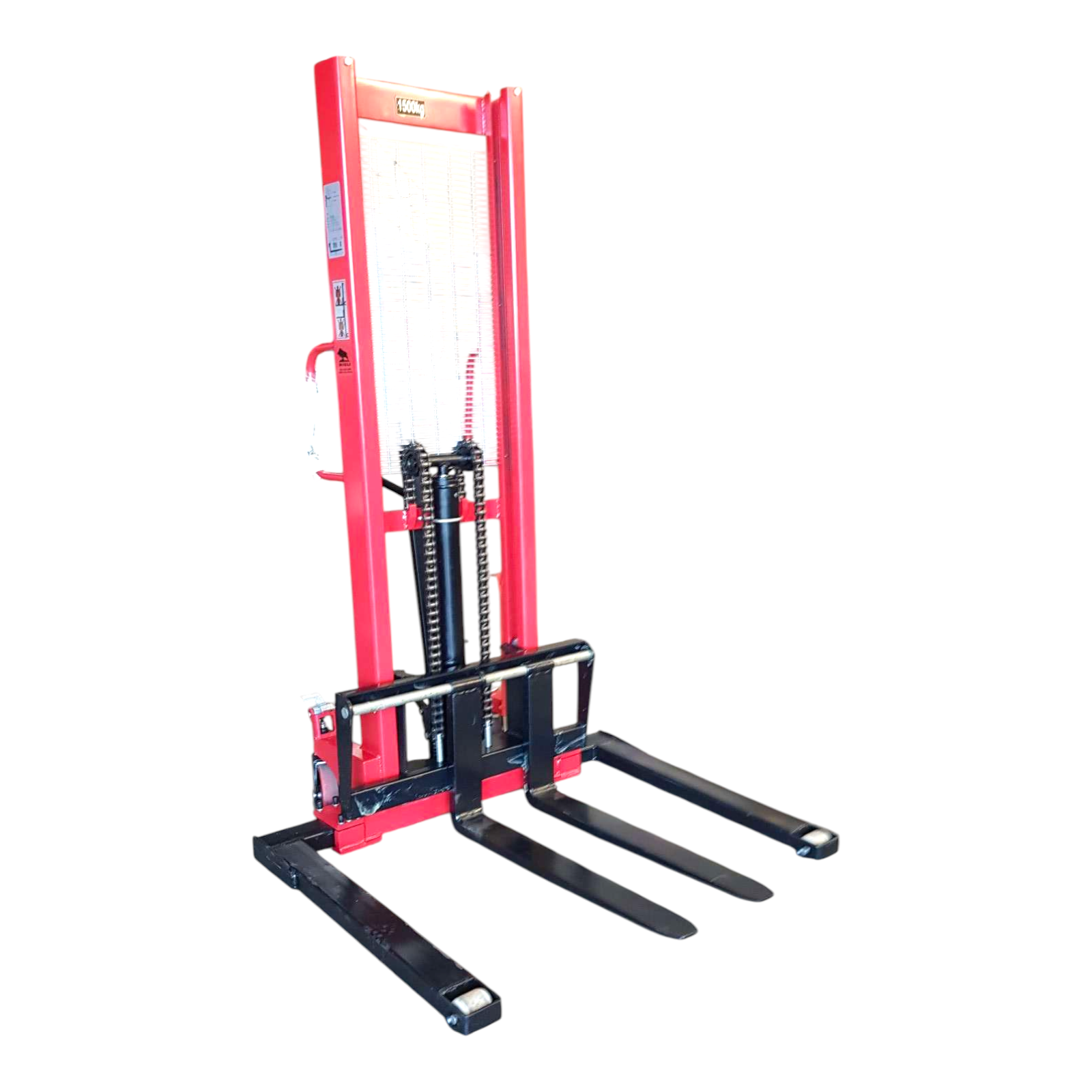

The Niuli S15H is a 1,500 kg capacity manual pallet stacker with a 1,600 mm maximum lift height and an adjustable base that converts from narrow to straddle configuration. This eliminates the need to choose between a narrow and a straddle stacker - the S15H handles both pallet types by adjusting the leg width between 895 mm and 1,220 mm clearance.

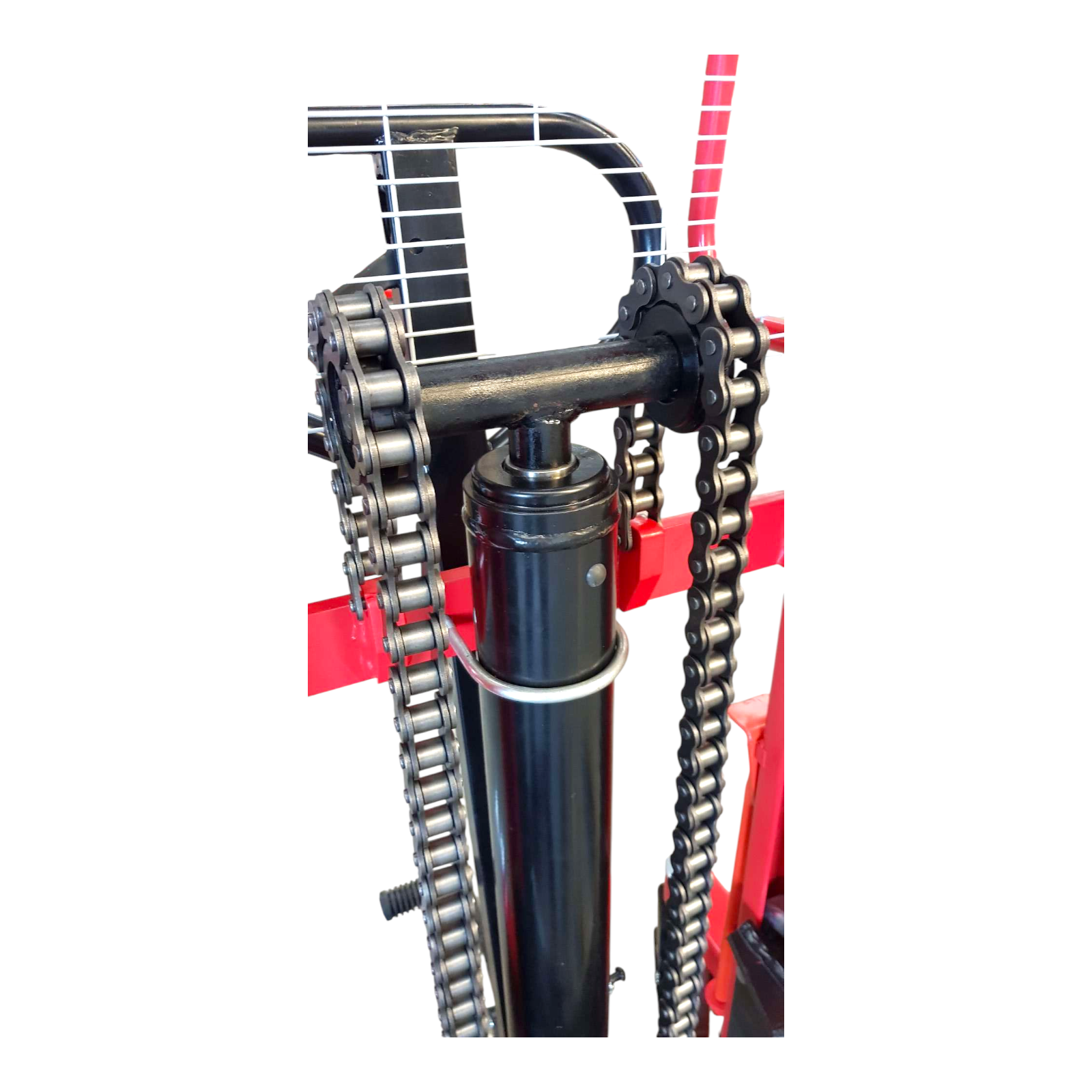

Fully manual operation - hand or foot pedal pump for lifting, manual push/pull for movement, and a foot-operated brake system for safety. Solid steel cast forks are built for a lifetime of use. Extra heavy-duty steel frame with chain and ram mast.
Why buyers choose the S15H
Adjustable Base - Narrow to Straddle
The leg width adjusts from 895 mm to 1,220 mm clearance between legs (1,135 mm to 1,470 mm overall). One unit handles open one-faced pallets in narrow mode and standard closed pallets in straddle mode - no need to own both.
1,600 mm Lift Height
Lifts loads from 100 mm to 1,600 mm with 1,200 kg retained at maximum height and 1,500 kg at ground level. Suitable for racking first and second levels, truck loading, and elevated positioning.
Solid Steel Cast Forks
The forks are solid steel castings - not fabricated sheet steel - for maximum durability and resistance to bending under heavy loads. Fork width adjusts from 215 mm to 860 mm outer tips.

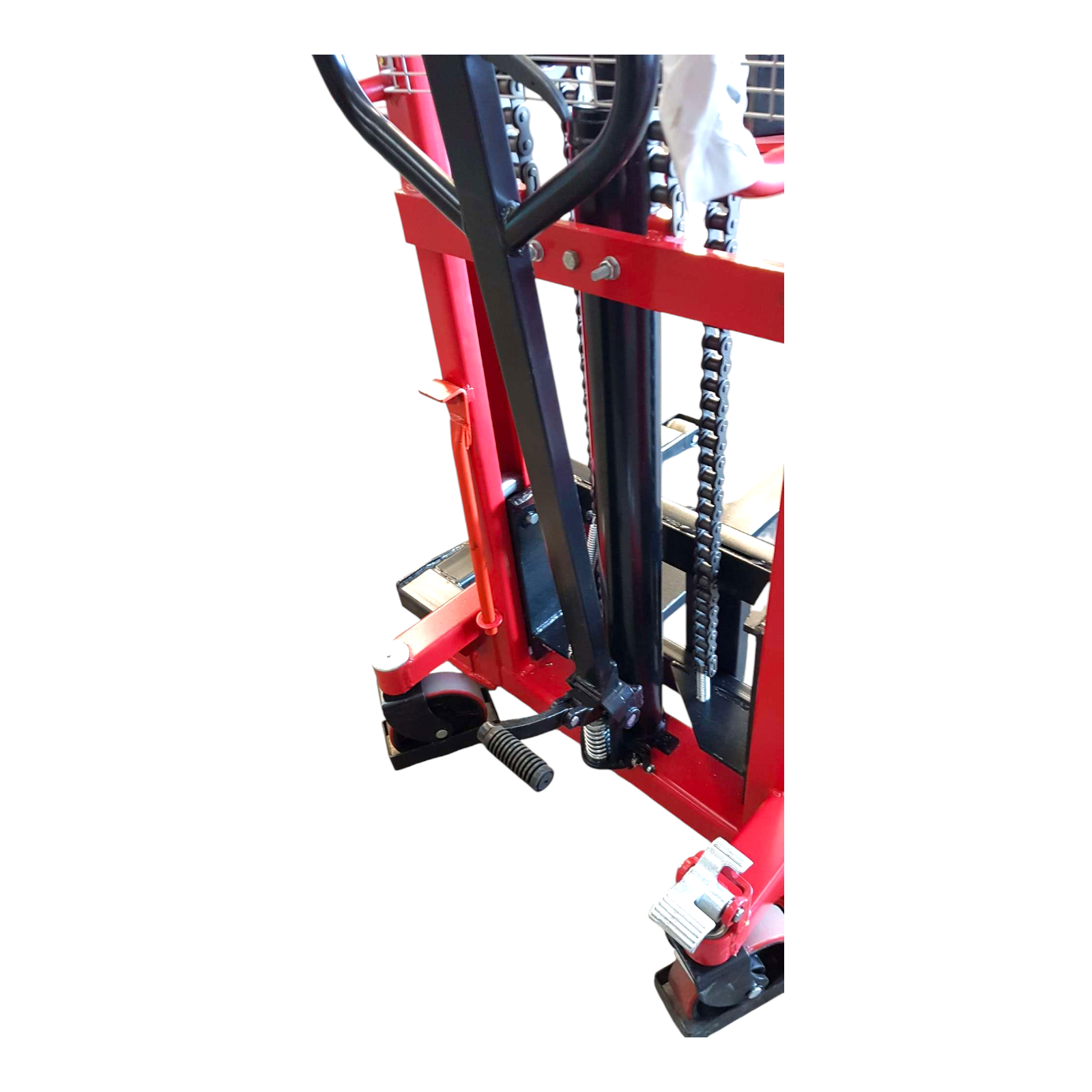

Fully Manual - No Charging Required
Hand or foot pedal pump for lifting. Manual push/pull for floor movement. No batteries, no charging, no electrical maintenance. The S15H works anywhere, anytime.

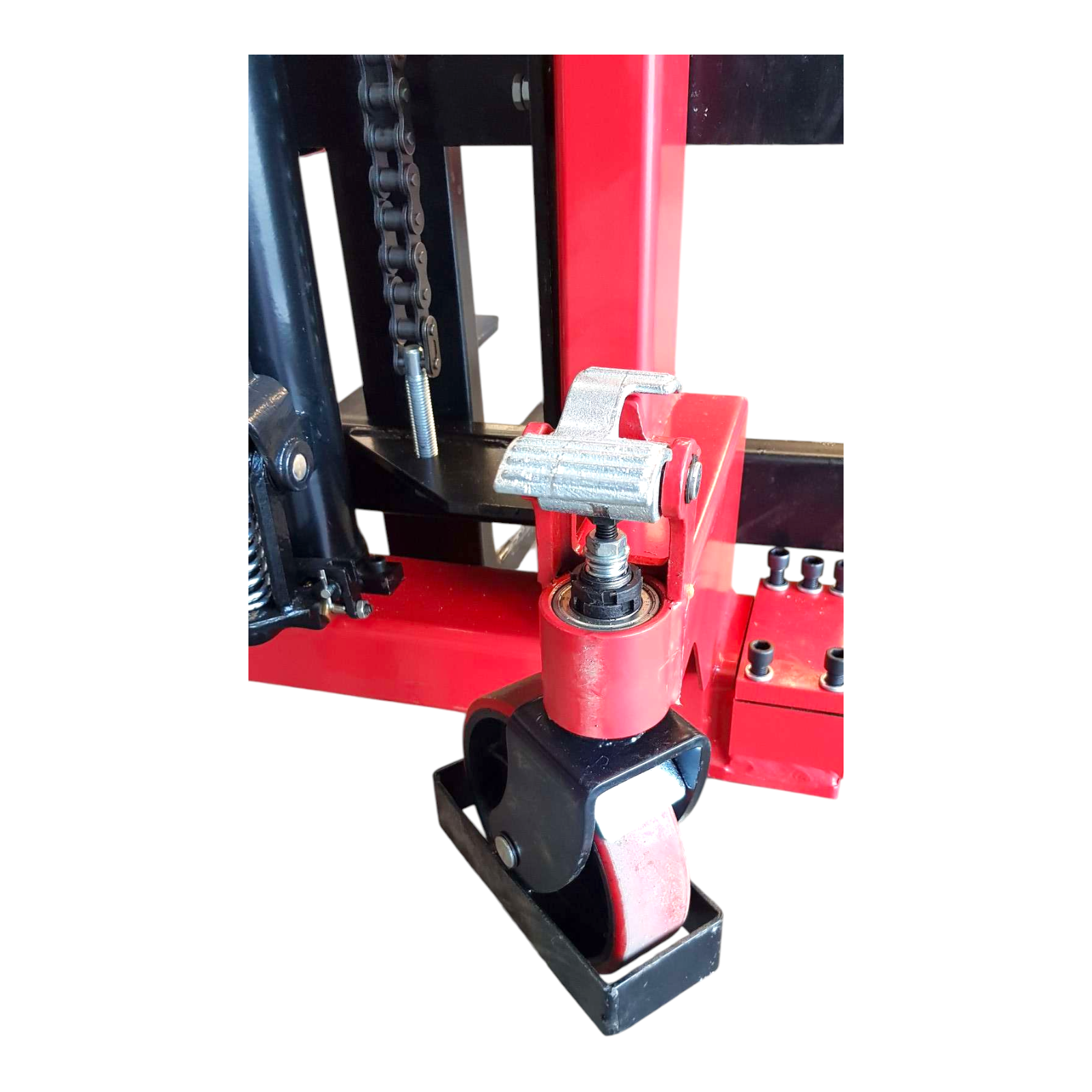

Foot-Operated Brake
A foot-operated brake system locks the unit in position during loading and unloading for added safety on flat and slightly inclined surfaces.
Specifications
| Specification |
Value |
| Load Capacity |
1,500 kg (ground) / 1,200 kg (at 1,600 mm) |
| Operation Type |
Fully Manual - hand/foot pedal pump, manual push/pull |
| Max Lift Height |
1,600 mm |
| Min Fork Height |
100 mm |
| Single Fork Dimensions (L × W × T) |
900 × 100 × 40 mm - solid steel cast |
| Adjustable Forks Width (outer tips) |
215–860 mm |
| Clearance Between Forks |
15–660 mm |
| Clearance Between Legs (adjustable) |
895–1,220 mm |
| Overall Legs Width (adjustable) |
1,135–1,470 mm |
| Mast Construction |
Extra heavy-duty steel frame, chain and ram |
| Brake |
Foot-operated |
| Front Wheels |
Ø70 × 70 mm |
| Rear Wheels |
Ø180 × 50 mm |
Dimensions & Weight
| Measurement |
Value |
| Overall Dimensions (L × W × H) |
165 × 147 × 211 cm |
| Unit Weight |
292 kg |
| Shipping Dimensions (pallet) |
170 × 152 × 226 cm |
| Shipping Weight |
342 kg |
