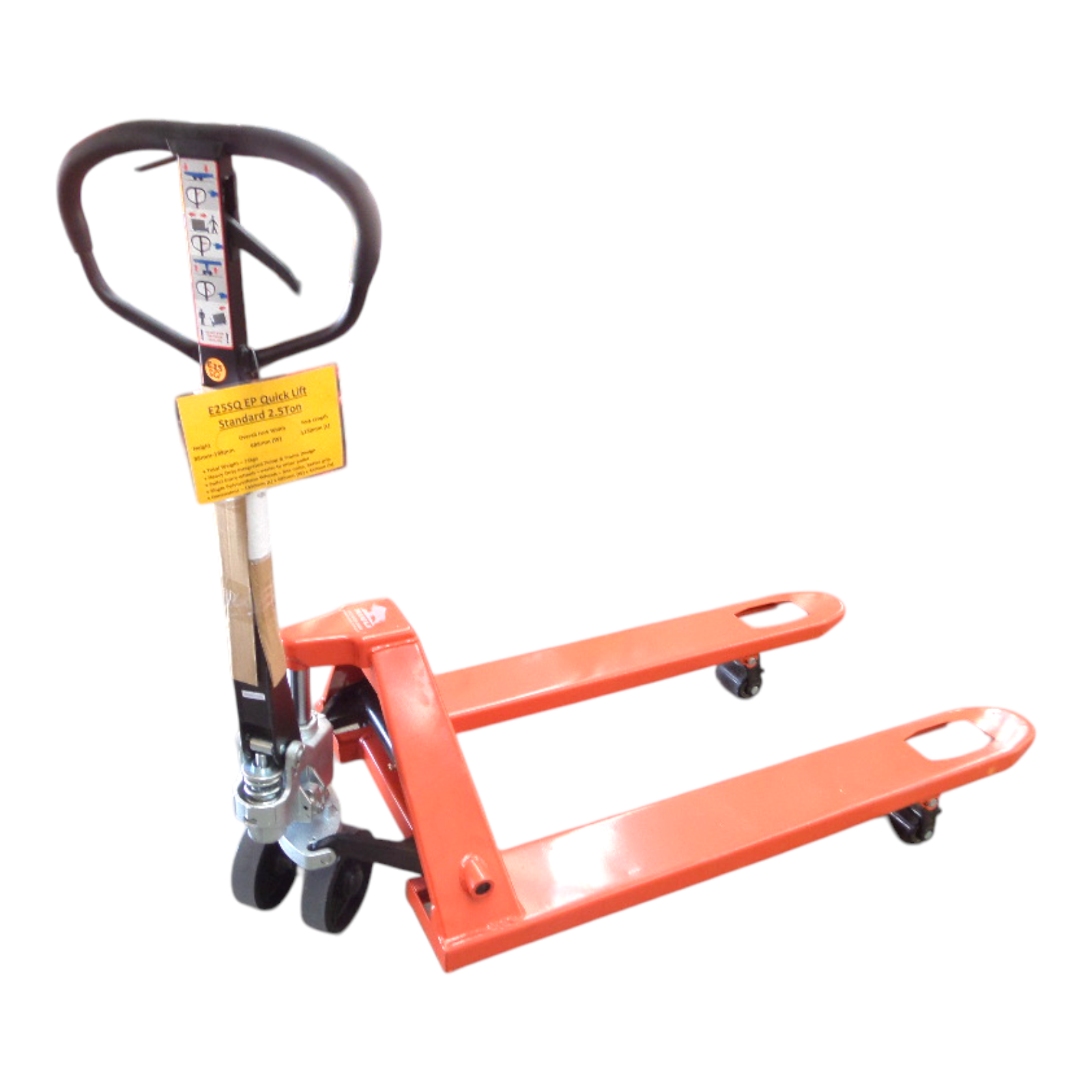

The EP E25SQ is a 2,500 kg capacity manual pallet jack with a quick-lift hydraulic system — reaching maximum fork height in just 7 pumps. The 685 mm standard outer fork width fits Australian Standard, CHEP, and Loscam pallets as well as Euro-style and custom-made narrow pallets.
A heavy-duty integrated pump and frame design provides a rigid, single-unit construction. A single front polyurethane wheel delivers non-marking, anti-slip operation on finished flooring.
Why buyers choose the E25SQ
Quick Lift - 7 Pumps to Max Height
The quick-lift hydraulic system reaches full fork height in just 7 pump strokes - significantly fewer than standard manual pallet jacks. Reduces operator effort and speeds up pallet handling cycles.

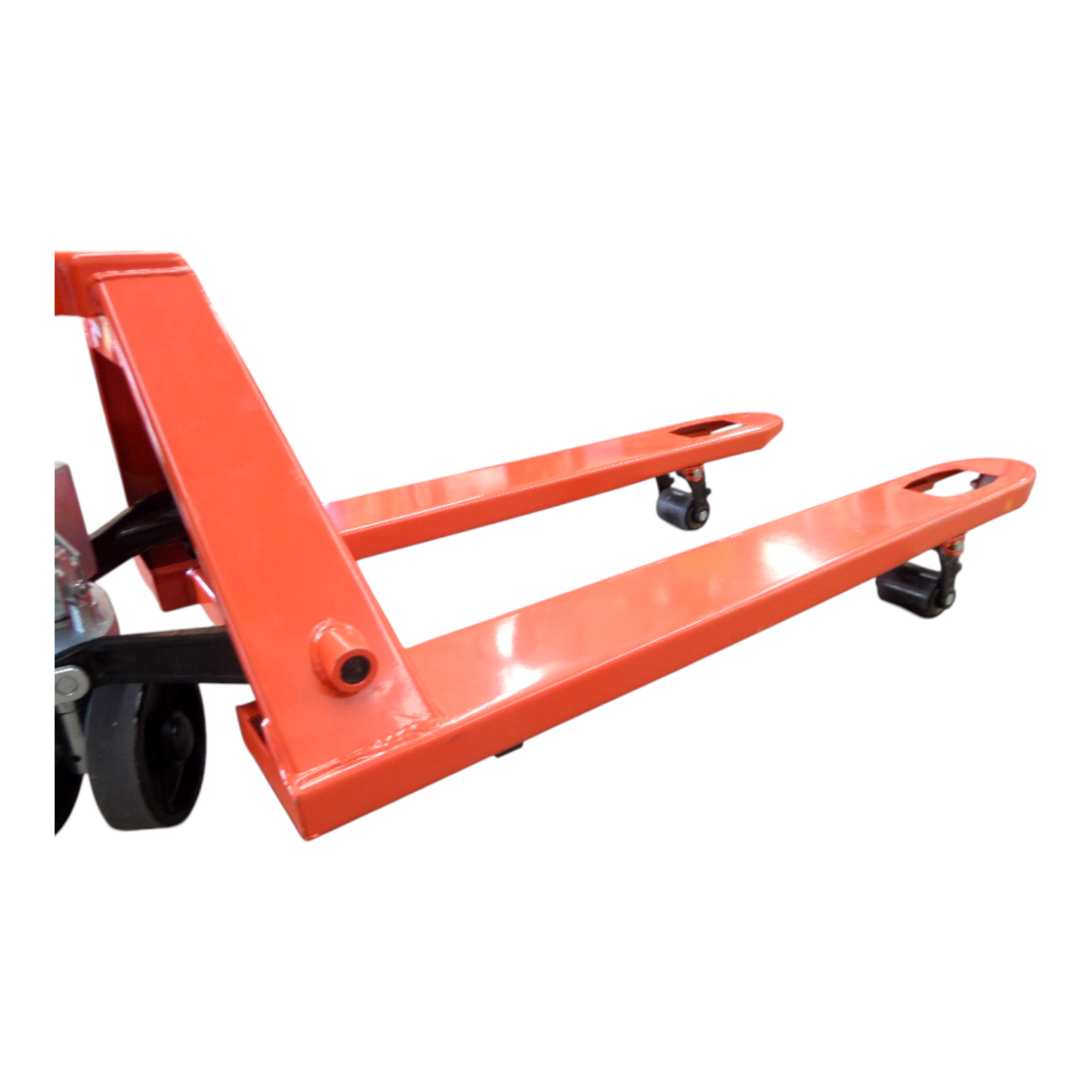

Standard 685 mm Fork Width
The 685 mm outer fork width accommodates Australian Standard pallets (1,165 × 1,165 mm), CHEP pallets, Loscam pallets, Euro pallets (1,200 × 800 mm), and custom narrow pallets. The go-to width for general warehouse use.
Heavy-Duty Integrated Frame
The pump and frame are integrated into a single heavy-duty unit, providing a rigid structure that resists flex under load. No separate pump housing means fewer points of failure.

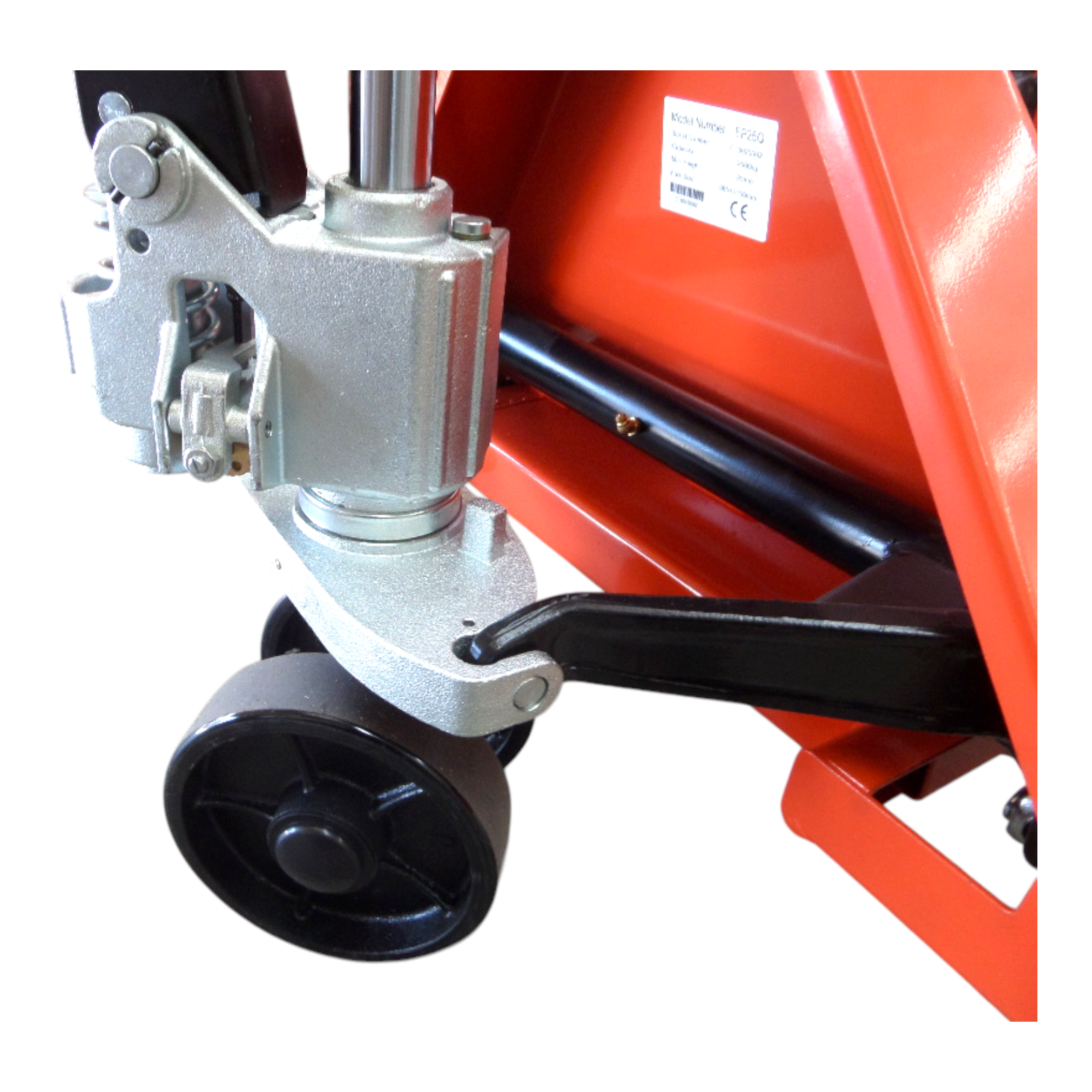

Non-Marking Polyurethane Wheels
Single front polyurethane wheel provides smooth drive and anti-slip grip without marking floors. Suitable for clean indoor environments, retail back-of-house, and finished warehouse flooring.
Specifications
| Specification |
Value |
| Load Capacity |
2,500 kg |
| Operation Type |
Manual - quick lift (7 pumps to max height) |
| Fork Length |
1,150 mm |
| Forks Outer Width |
685 mm (Standard) |
| Clearance Between Forks |
365 mm |
| Min Fork Height |
85 mm |
| Max Fork Height |
195 mm |
| Wheel Material |
Polyurethane - non-marking, anti-slip |
| Wheel Configuration |
Single front |
Dimensions & Weight
| Measurement |
Value |
| Overall Dimensions (L × W × H) |
155 × 68.5 × 124 cm |
| Unit Weight |
75 kg |
| Shipping Dimensions (skid) |
155 × 70 × 58 cm |
| Shipping Weight |
85 kg |
About EP Equipment
EP Equipment is a global material handling manufacturer producing pallet jacks, electric pallet jacks, stackers, and forklifts.
