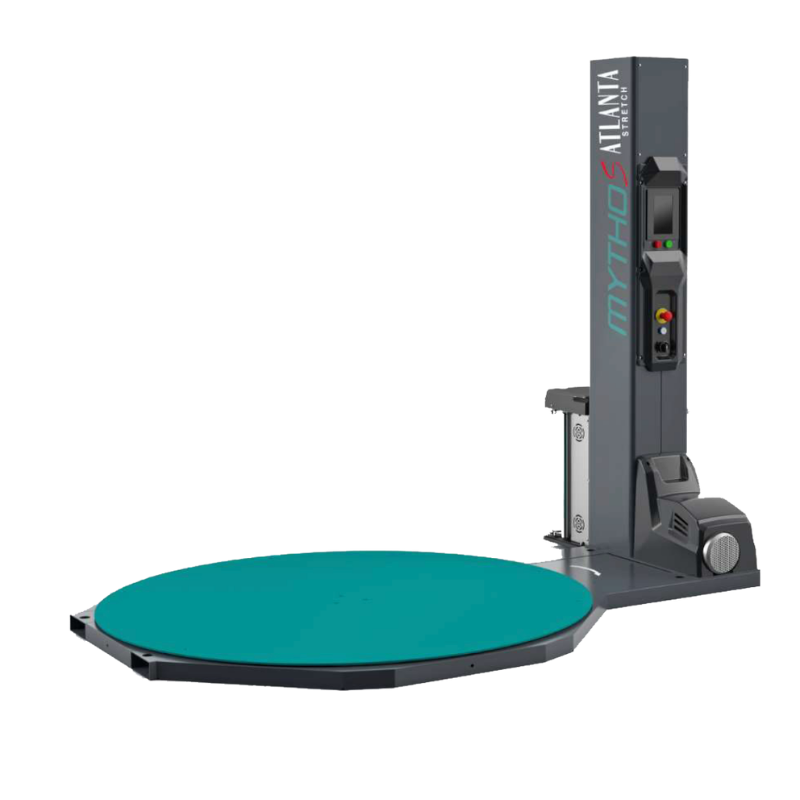

The Atlanta Stretch Mytho S XF-5113S is a semi-automatic pallet wrapping machine equipped with the PRS (Powered Roller Stretch) film carriage, designed to significantly reduce film consumption and save thousands in wrapping costs. The Mytho S is Industry 4.0 ready, featuring an LED touchscreen interface with advanced wrapping programs and adjustable parameters for precise control over every wrap cycle.
Manufactured in Italy by Atlanta Stretch. The 1,650 mm turntable diameter is sized for Australian pallets. Auto height detection, 6 programmable cycles, and semi-auto or manual mode are all standard. Powered by a standard 230V/10A Australian plug - no special electrical installation required.

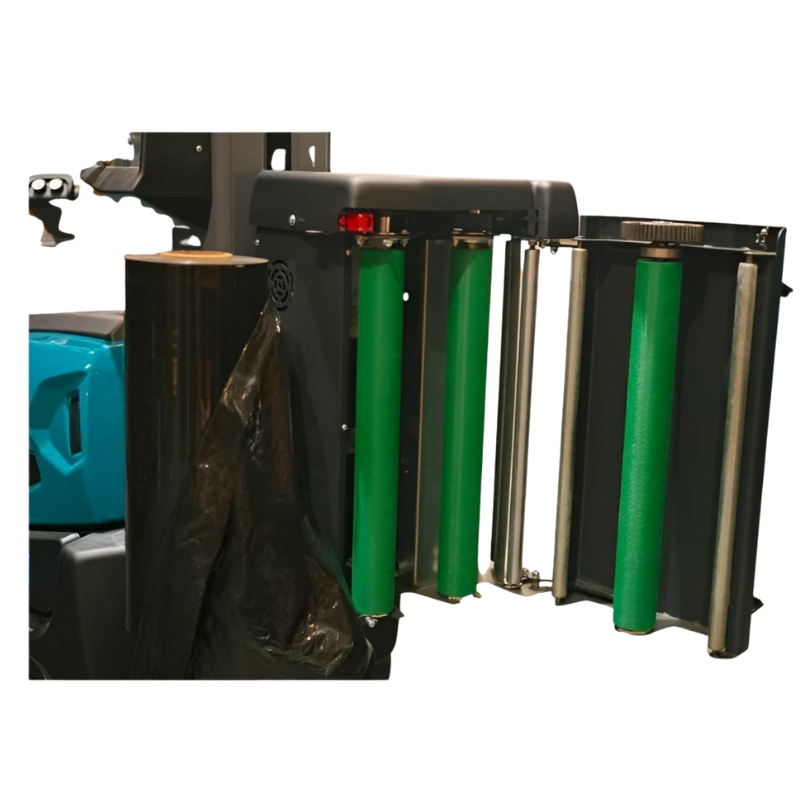

Powered Prestretch (PRS) - Save Up to 50% on Film
The PRS film carriage delivers 150%–250% stretch (350% with PS carriage option), stretching film electronically before application. Tension is settable from the control panel. Reduces film consumption by up to 50% compared to manual wrapping - paying for the machine through film savings alone.

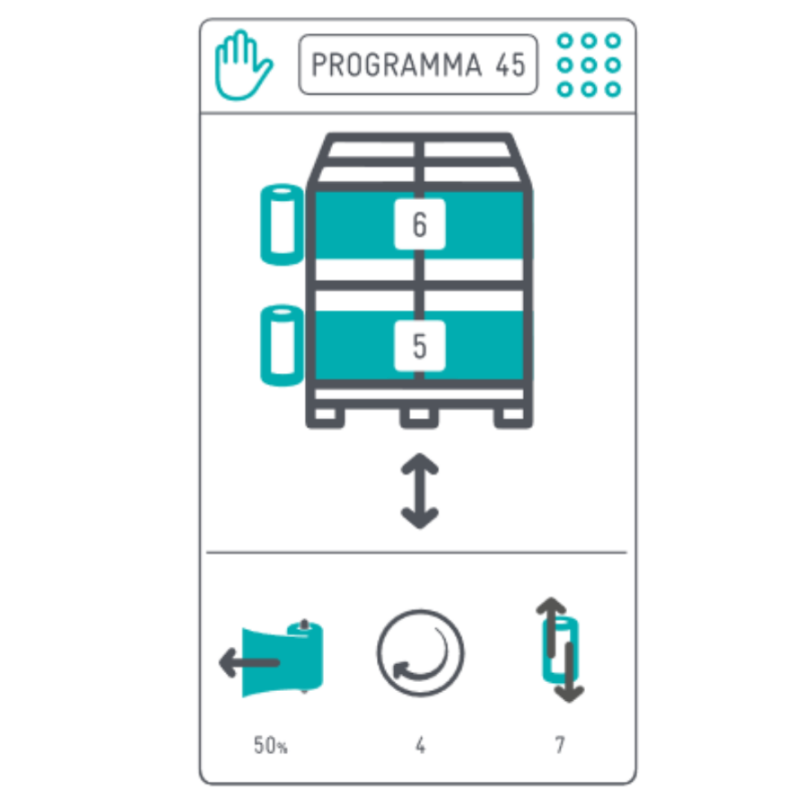

LED Touchscreen with 6 Programmable Cycles
Industry 4.0 ready. Program and save 6 custom wrapping cycles with independently adjustable top/bottom wrap count (1–10 each), turntable speed (5–12 rpm), carriage speed up/down, and reinforcement zones. Switch between cycles instantly for different pallet types.
Auto Height Detection
A photocell automatically detects pallet height - no manual height setting required. The carriage stops at the correct point every cycle, ensuring consistent wrapping regardless of pallet height variation.
1,650 mm Turntable for AU Pallets
The turntable diameter is specifically sized for Australian Standard pallets (1,165 × 1,165 mm) and CHEP pallets. 2,000 kg turntable capacity. 78 mm turntable height for easy pallet loading by hand truck or forklift.
Semi-Auto and Manual Mode
Semi-auto mode runs the programmed cycle at the press of a button. Manual mode gives the operator full control over turntable rotation, carriage position, and film tension for non-standard loads or one-off wrapping tasks.
| Specification | Value |
|---|---|
| Max Load Weight | 2,000 kg |
| Max Wrapping Height | 2,450 mm |
| Turntable Diameter | 1,650 mm |
| Turntable Height | 78 mm |
| Film Carriage | PRS - 200% powered prestretch (150%–250% range) |
| Film Core Size | 76 mm |
| Turntable Speed | 5–12 rpm (adjustable) |
| Carriage Speed (up/down) | 1.3–5.4 m/min (independently adjustable) |
| Top / Bottom Wraps | 1–10 each (independently settable) |
| Programmable Cycles | 6 |
| Height Detection | Auto — photocell |
| Power | 230V / 10A - standard Australian plug |
| Turntable Drive | Chain |
| Mast Drive | Internal chain |
| Inverters | Siemens |
| Mast Type | Fully enclosed |
| Forklift Transportable | Yes |
| Safety | Emergency mushroom stop, beeper at start/stop, safety crush device under carriage |
| Cycle | Description |
|---|---|
| Double Cycle | Upwards then downwards |
| Single Cycle | Upwards only or downwards only |
| Top Sheet | Top sheet application cycle |
| Altimeter | Height-based cycle with photocell off |
| Reinforcement | Additional wraps at settable zones |
| Step Rising | Incremental carriage rise during wrap |
| Pre-Programmed | Start and stop height pre-set |
| Manual | Full operator control via push buttons |
| Measurement | Value |
|---|---|
| Overall Dimensions (L × W × H) | 230 × 165 × 256.5 cm |
| Manufactured In | Italy - Atlanta Stretch |
Atlanta Stretch is an Italian manufacturer of pallet wrapping machines and stretch film systems.
