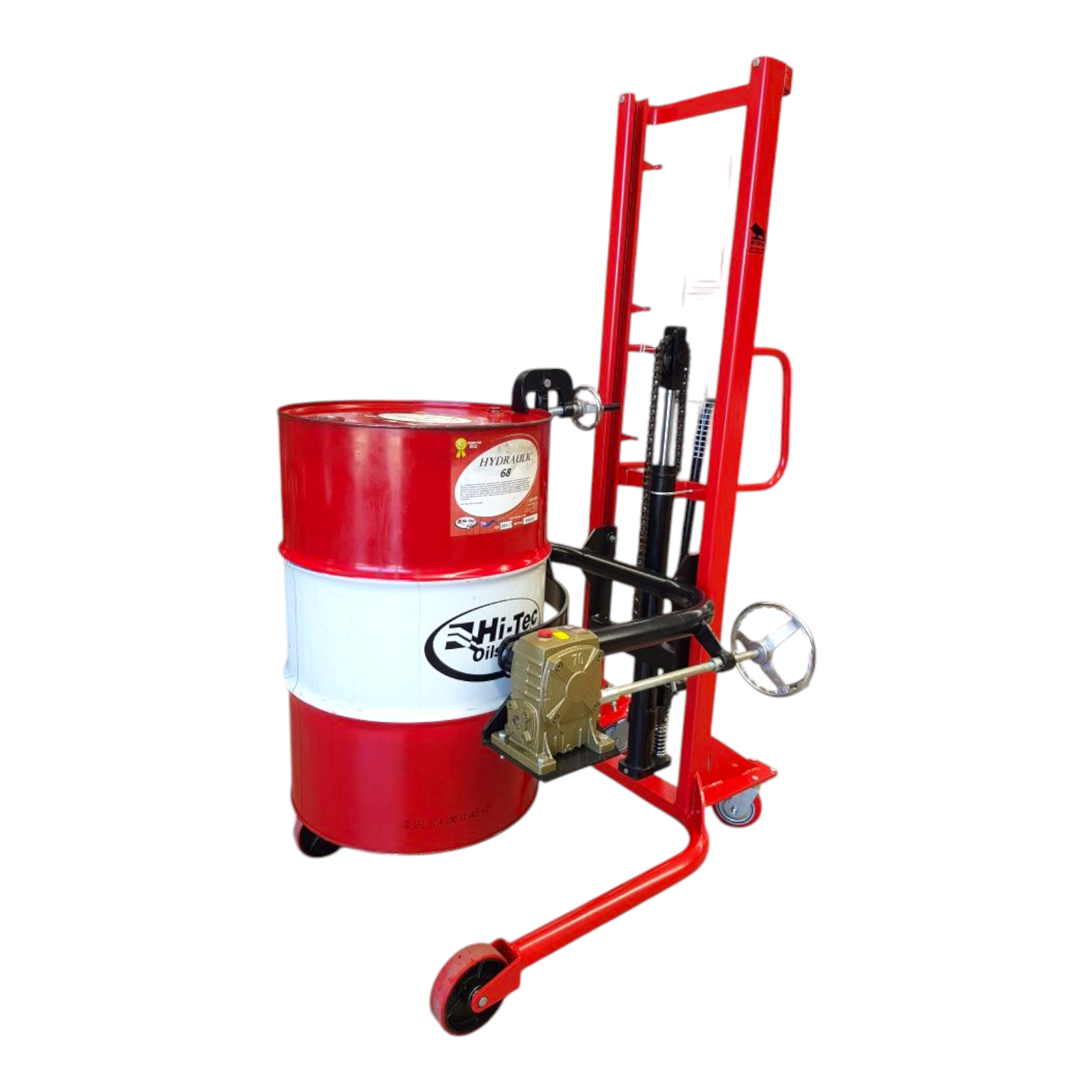

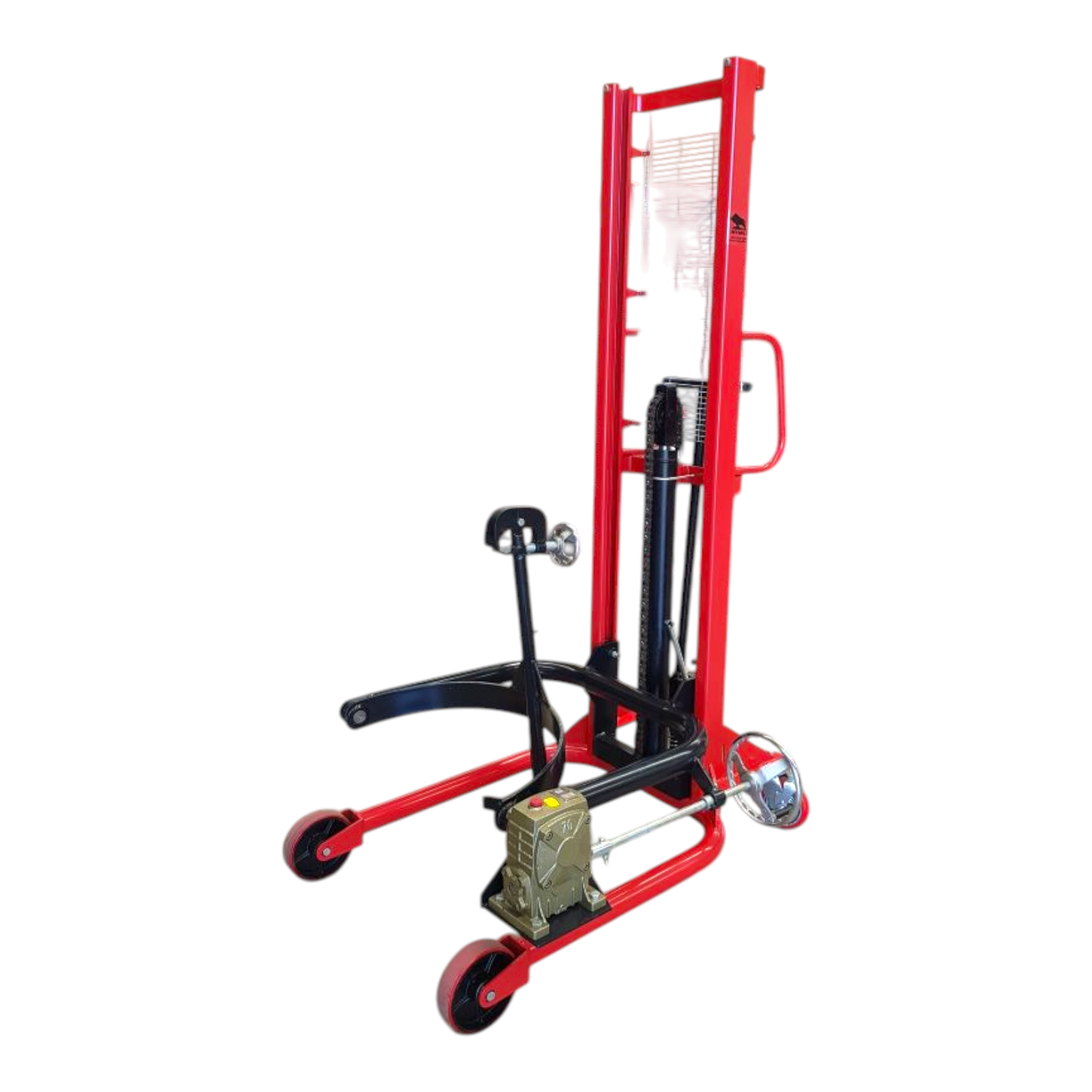

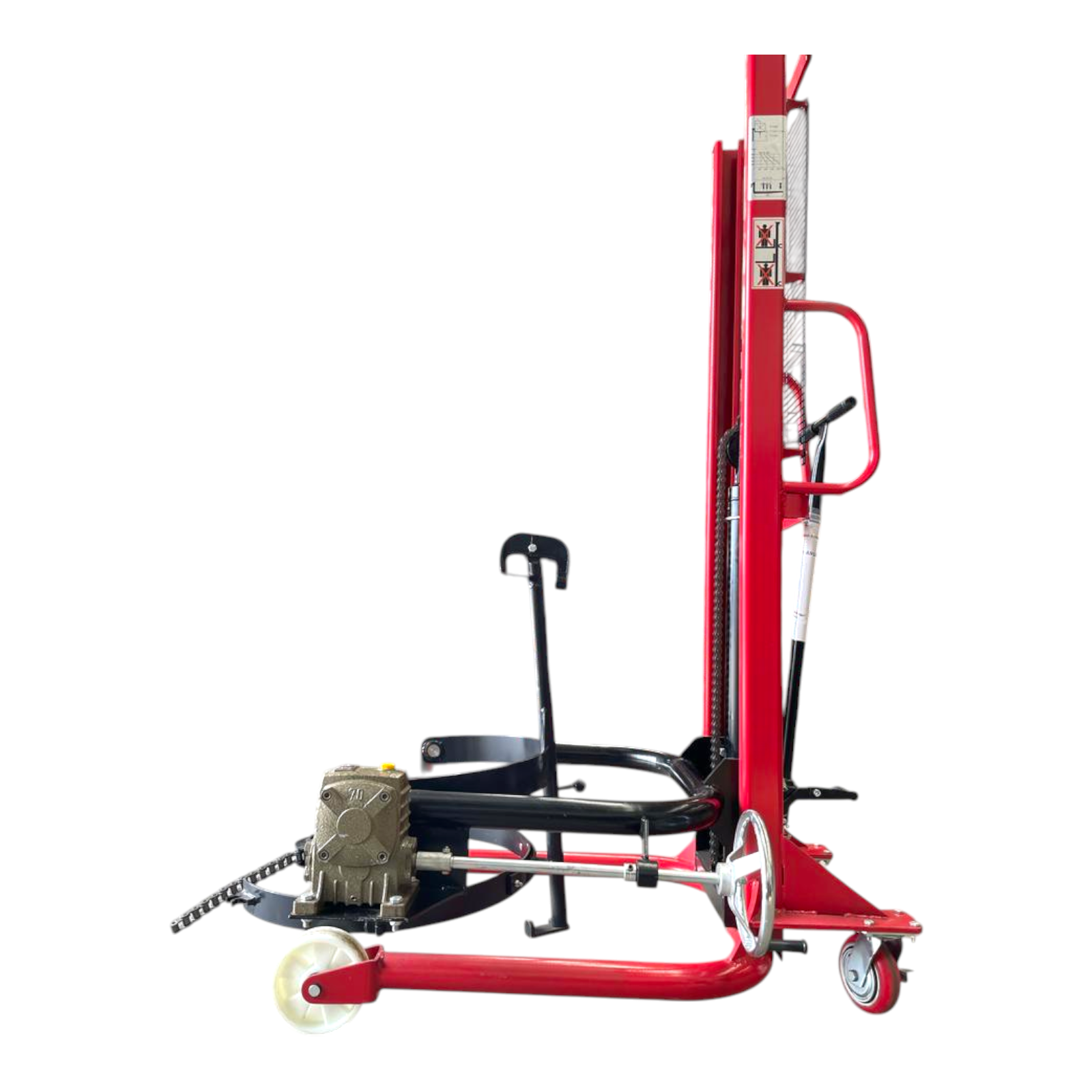

The Niuli DPT35 is a 350 kg capacity drum picker and tipper designed for lifting, tipping, positioning, and moving 200-litre metal drums or any drum with a metal top lip. A multi-gear tilting system requires very little effort for drum tipping, making it an economical and practical solution for heavy drum handling without powered equipment.
Manual operation via hand or foot pedal pump with manual push/pull movement. Available in Standard configuration or with an added bottom cage (DPT35C) for extra drum security during transport.
Why buyers choose the DPT35

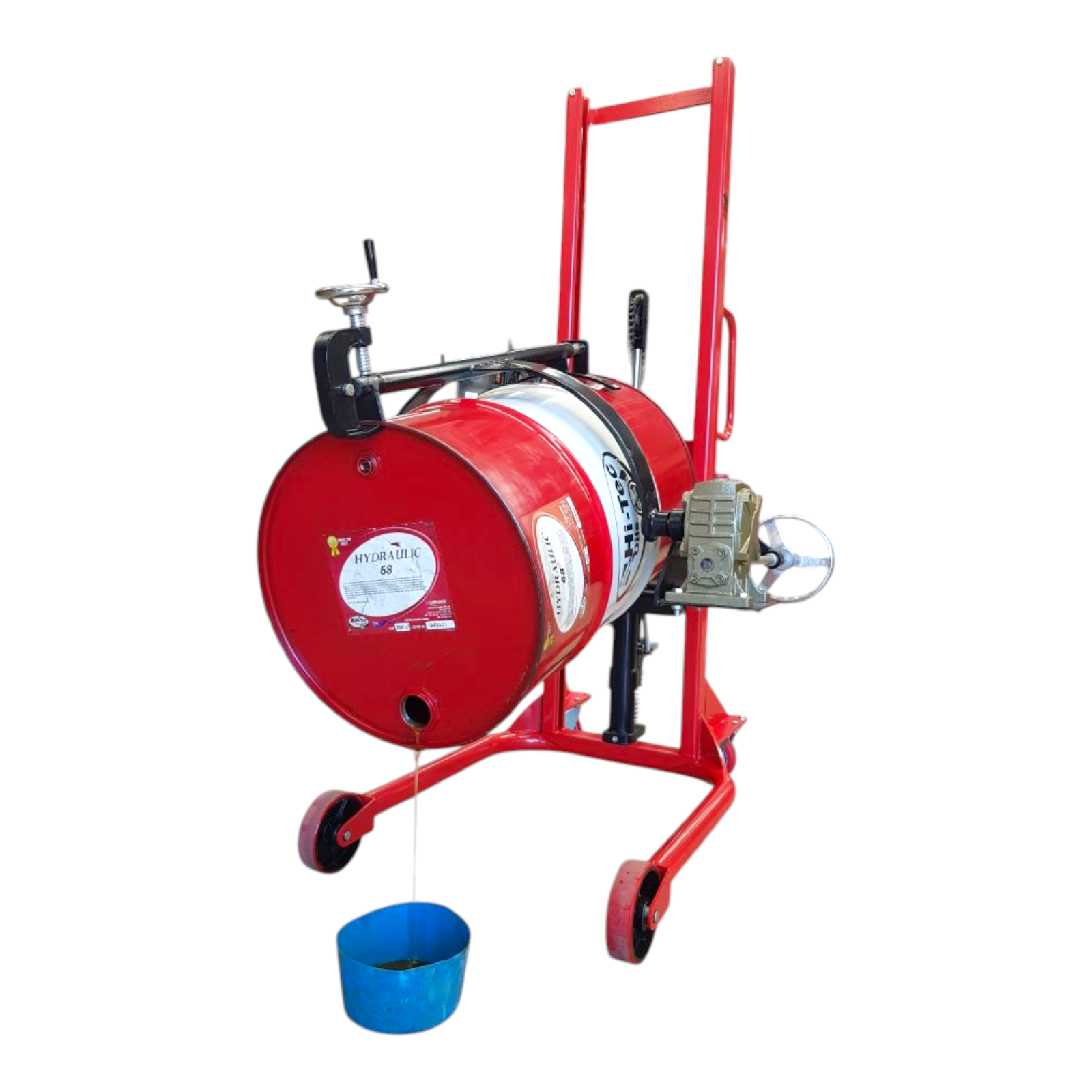

Lift, Tip, and Move
Combines three functions in one unit - lift drums vertically, tip them for pouring or positioning, and move them across the floor. Eliminates the need for separate lifting and tipping equipment.

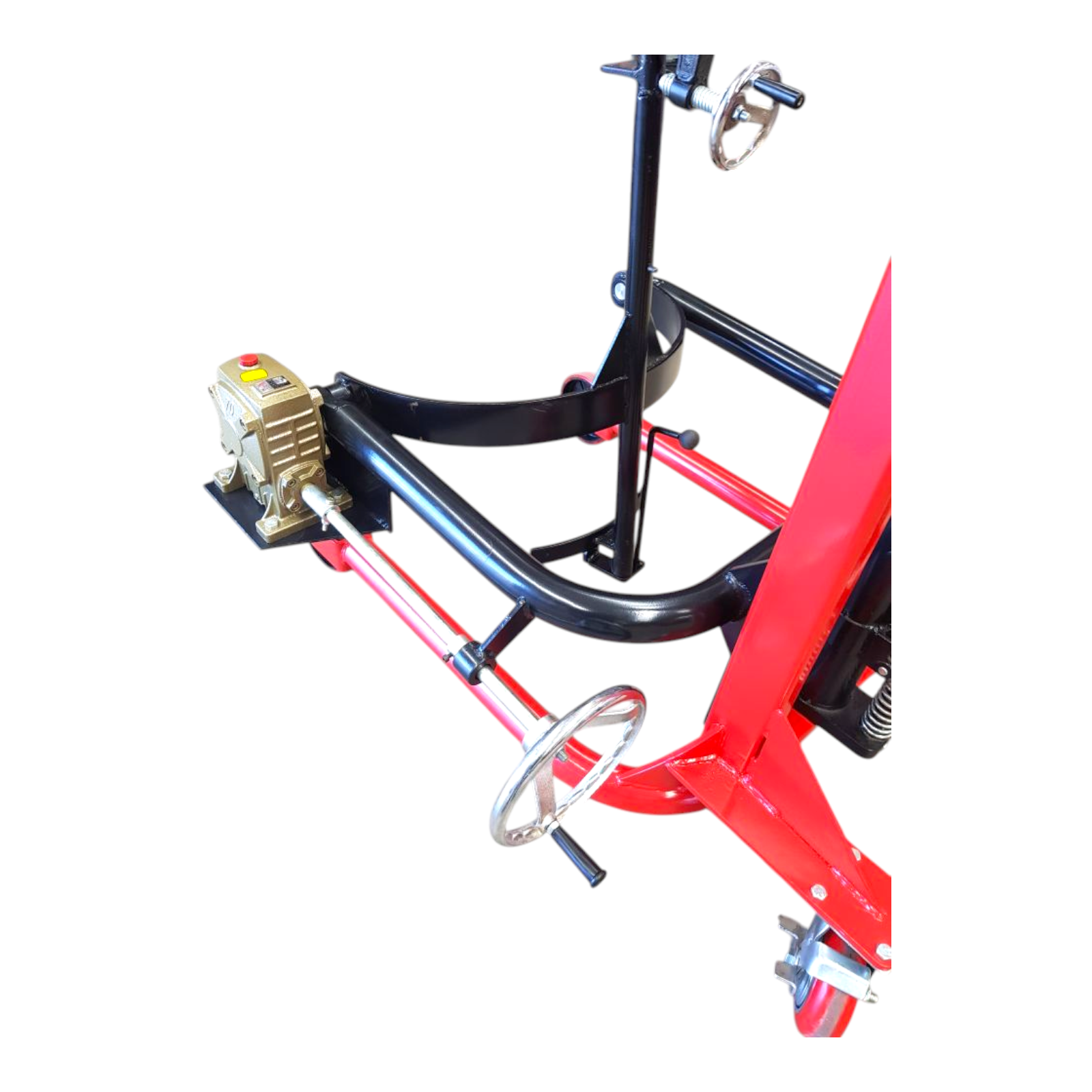

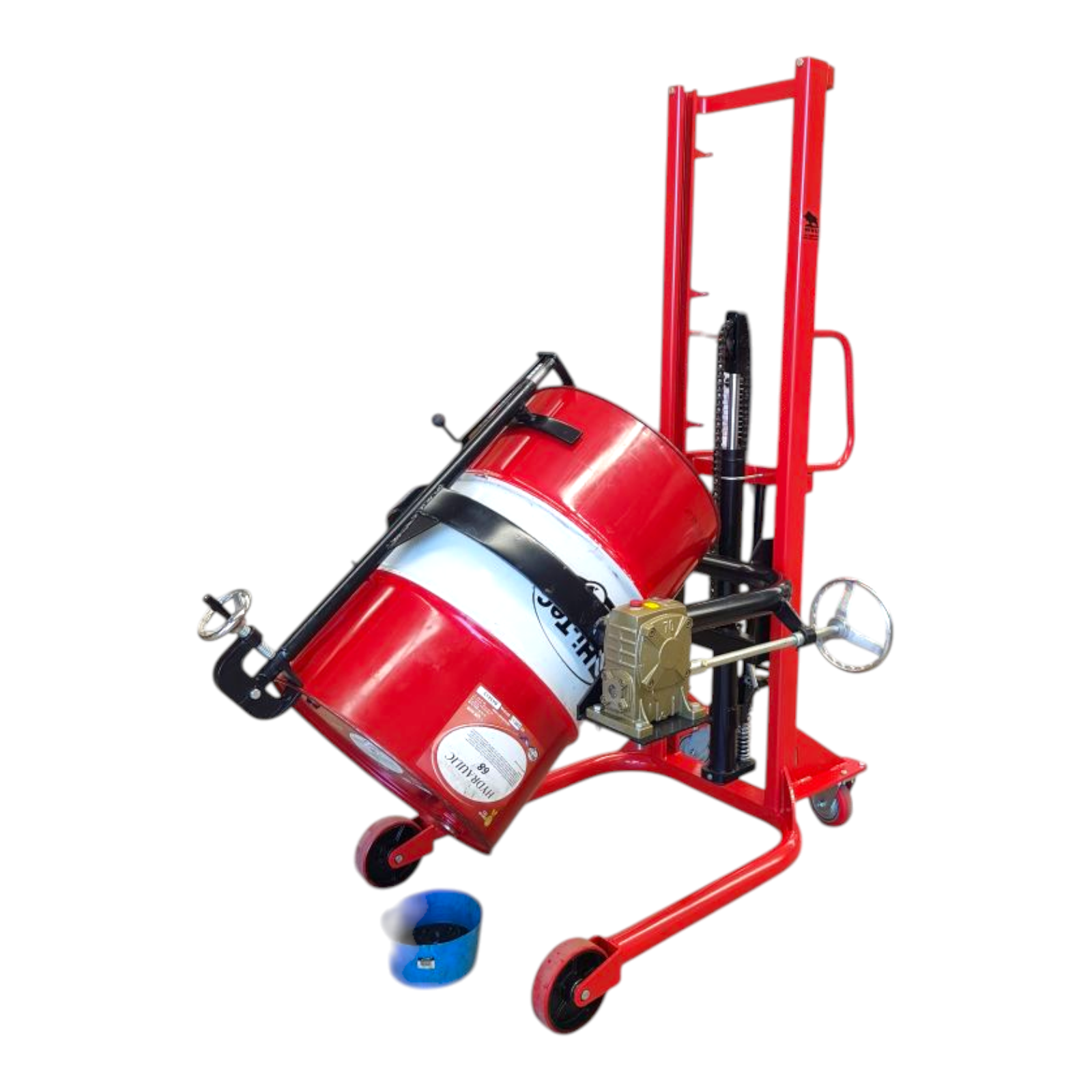

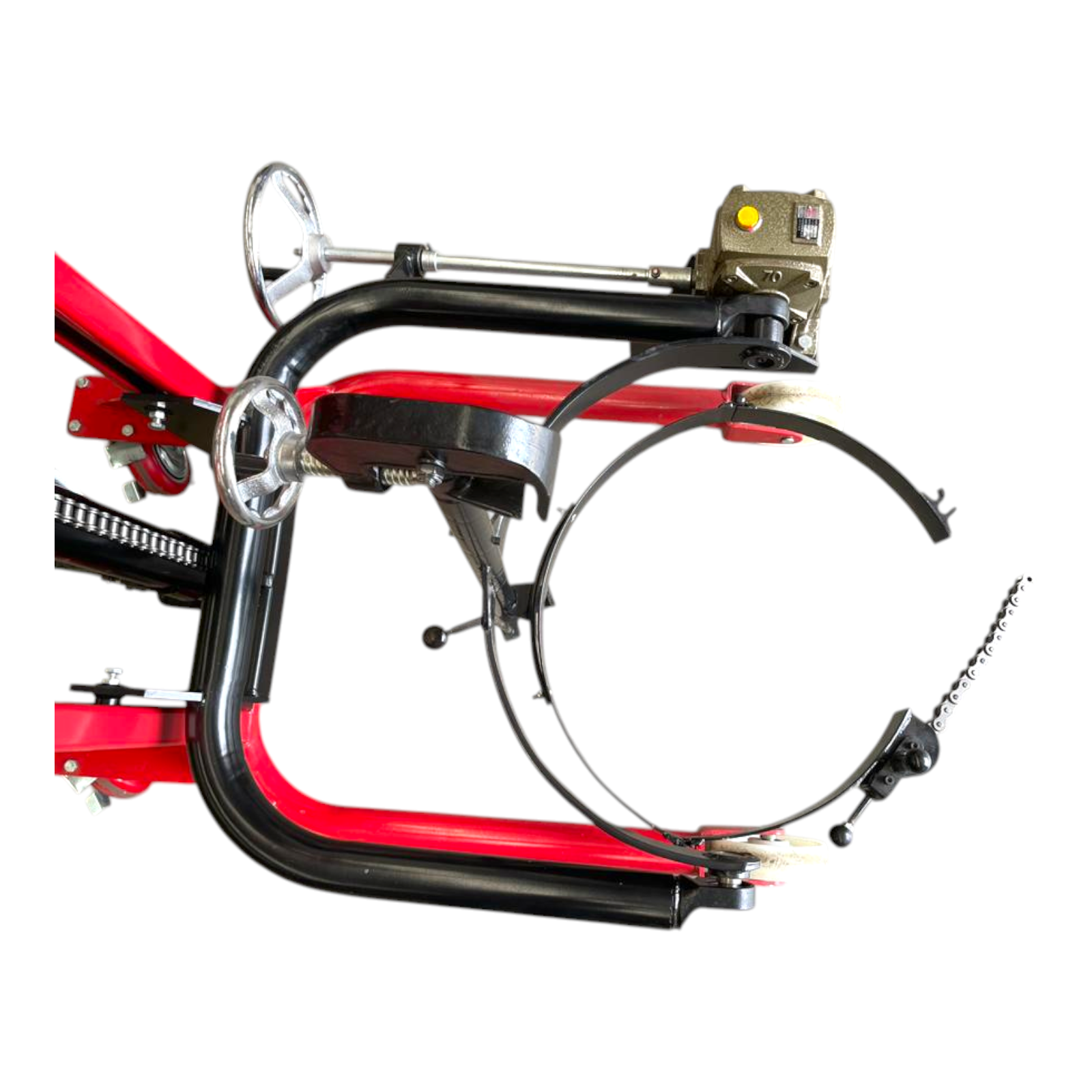

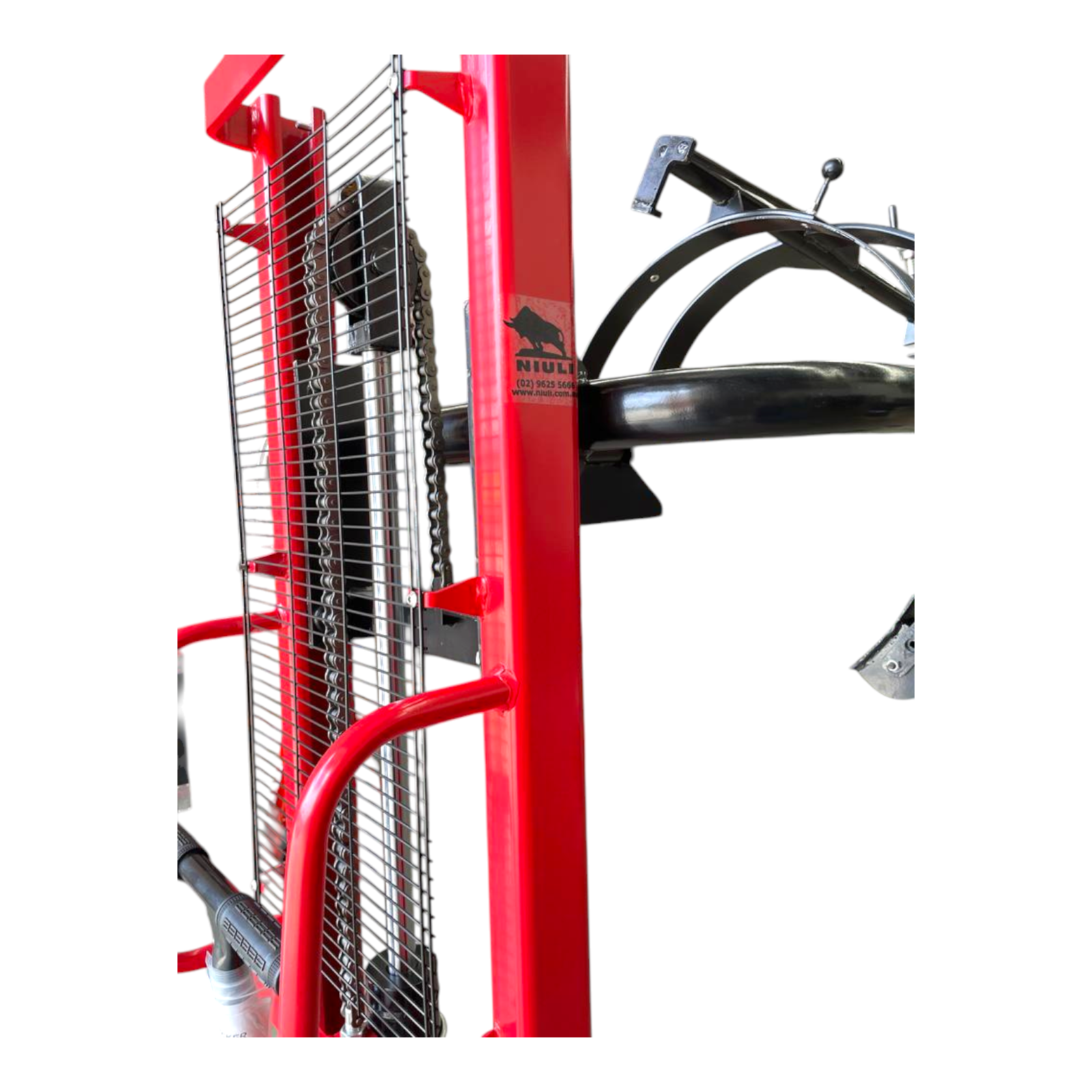

Multi-Gear Tilting System
The geared tilting mechanism requires very little effort to tip even full 200-litre drums. Controlled, gradual tipping for precise pouring and positioning.

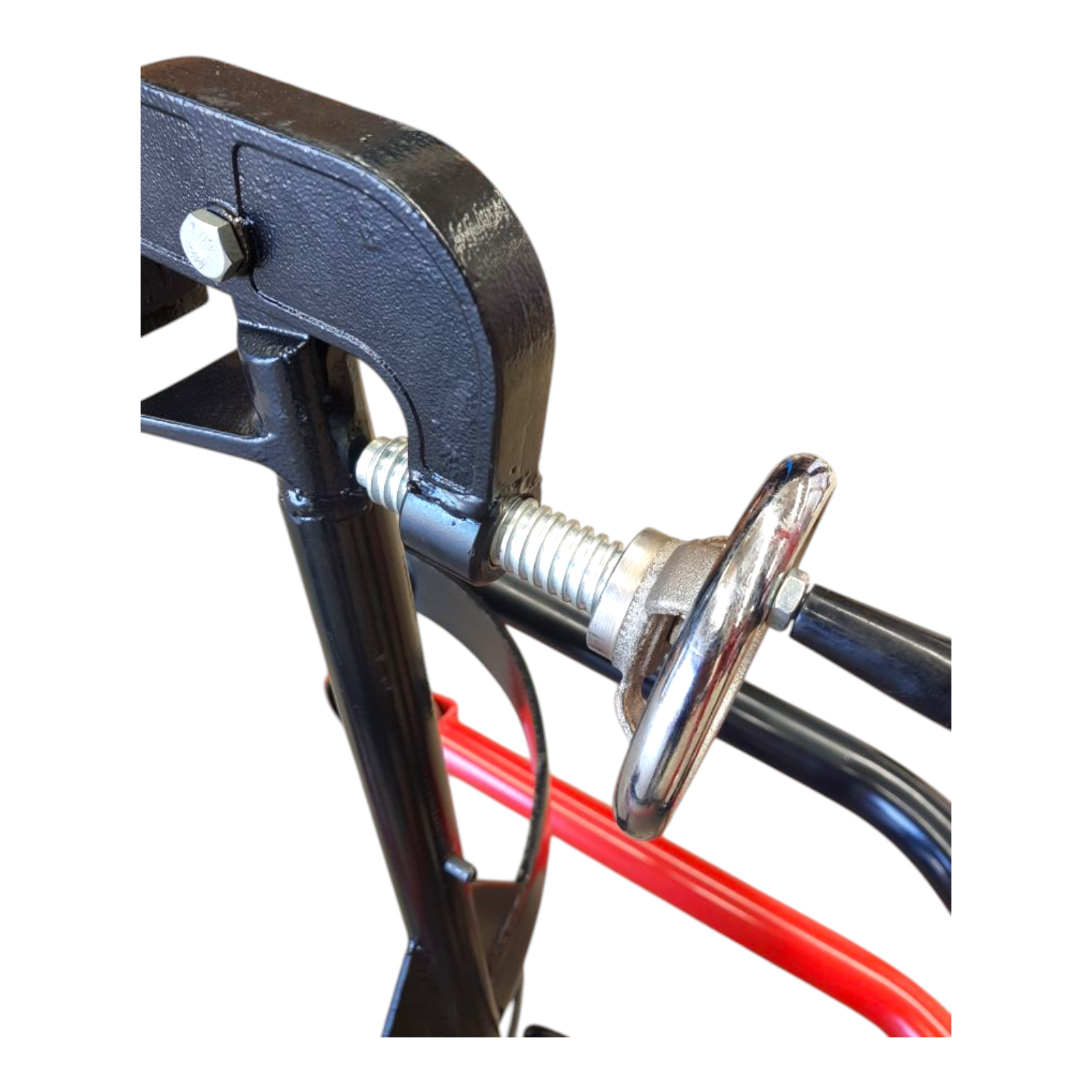

Dual Safety Locks

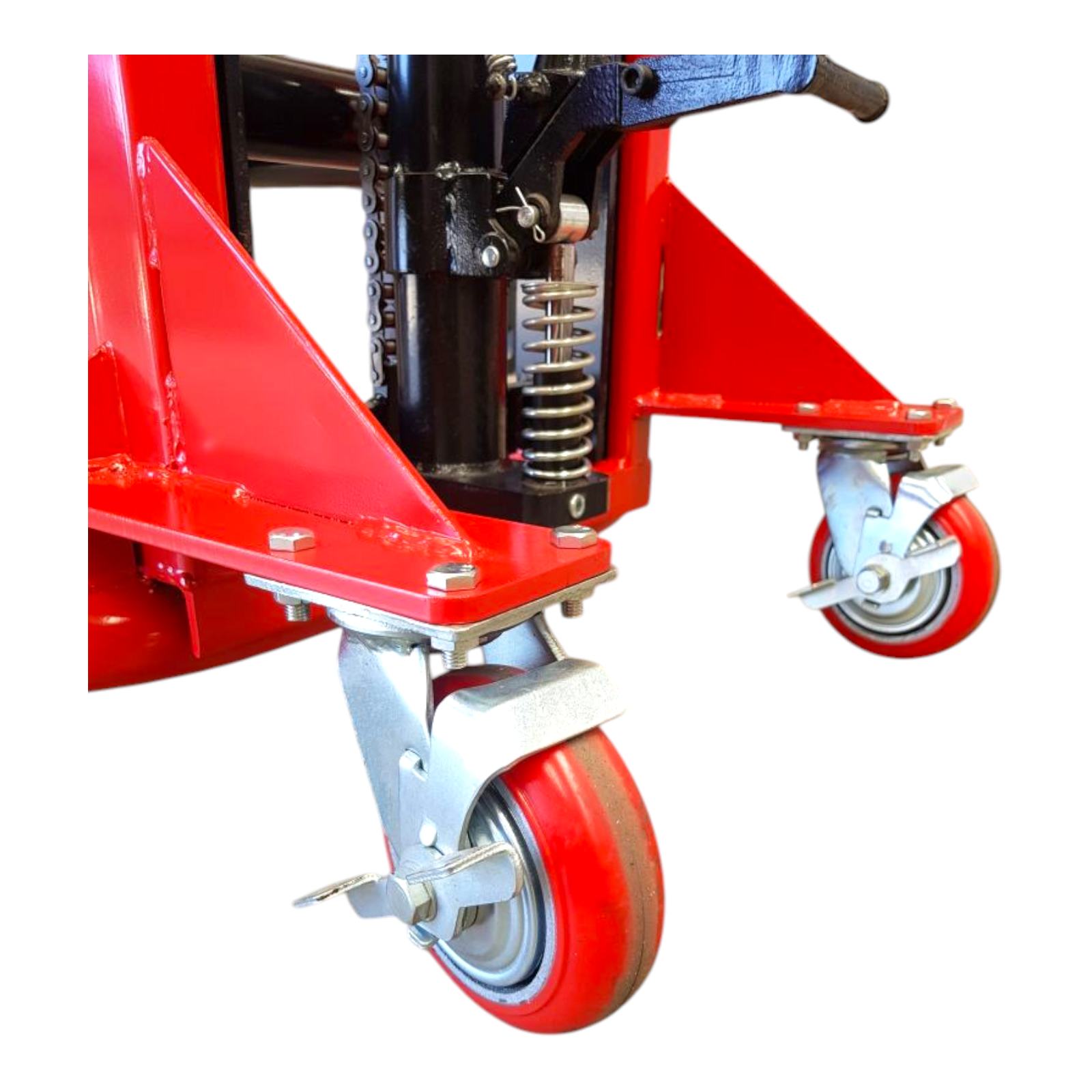

Top drum lip lock secures the drum from above during lifting and tipping. Bottom drum lock and support mechanism prevents the drum from shifting during transport. Rear wheel lock brakes hold the unit in position.

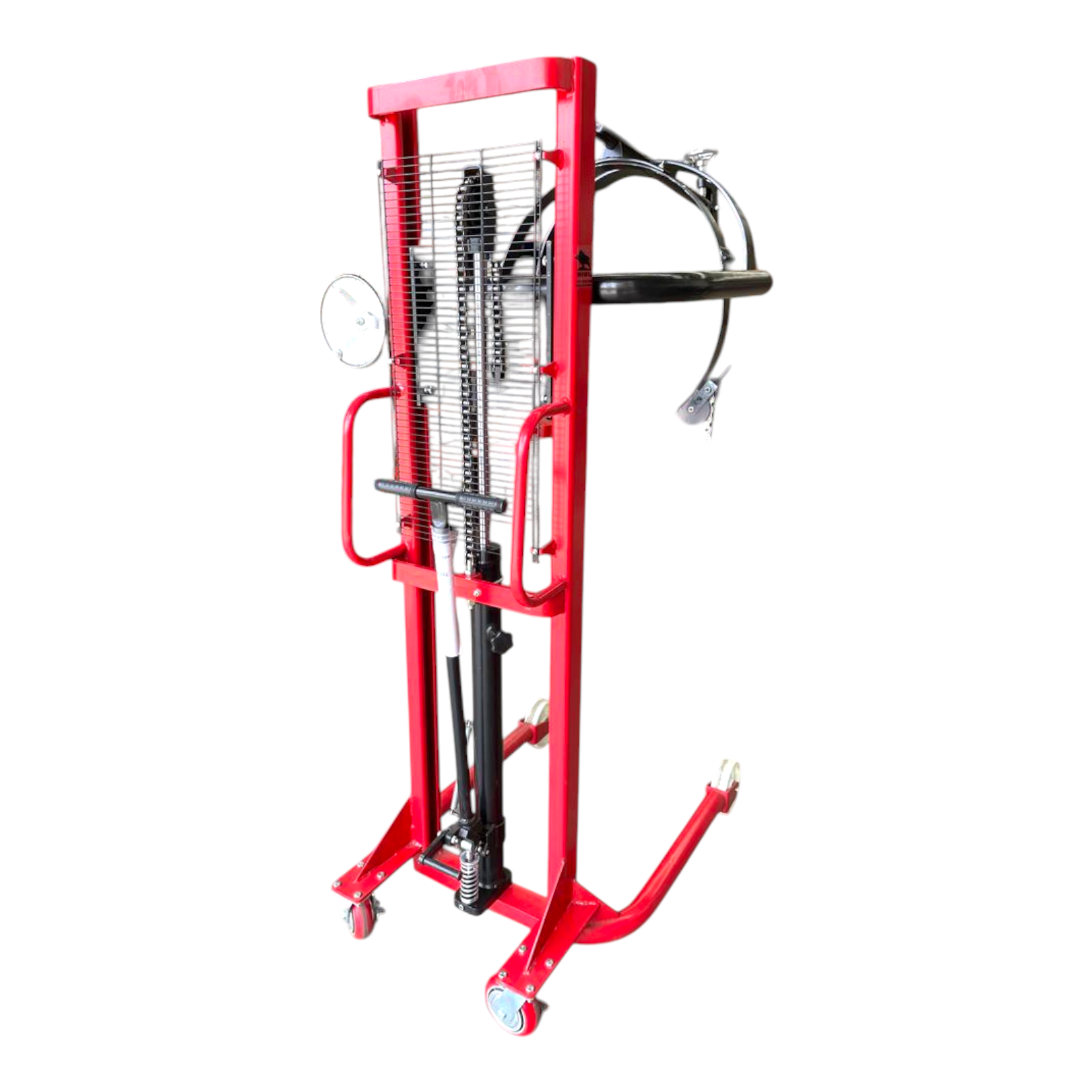

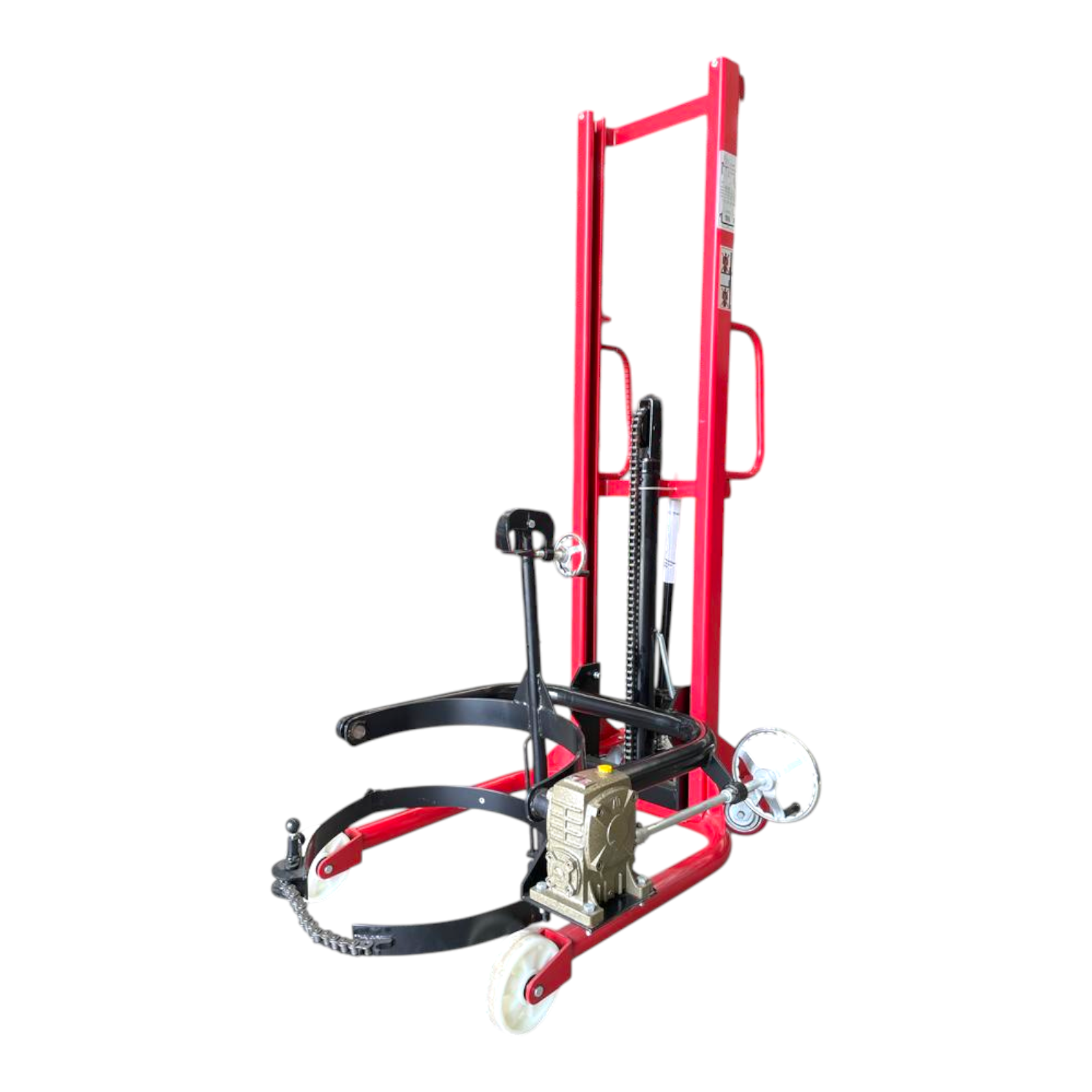

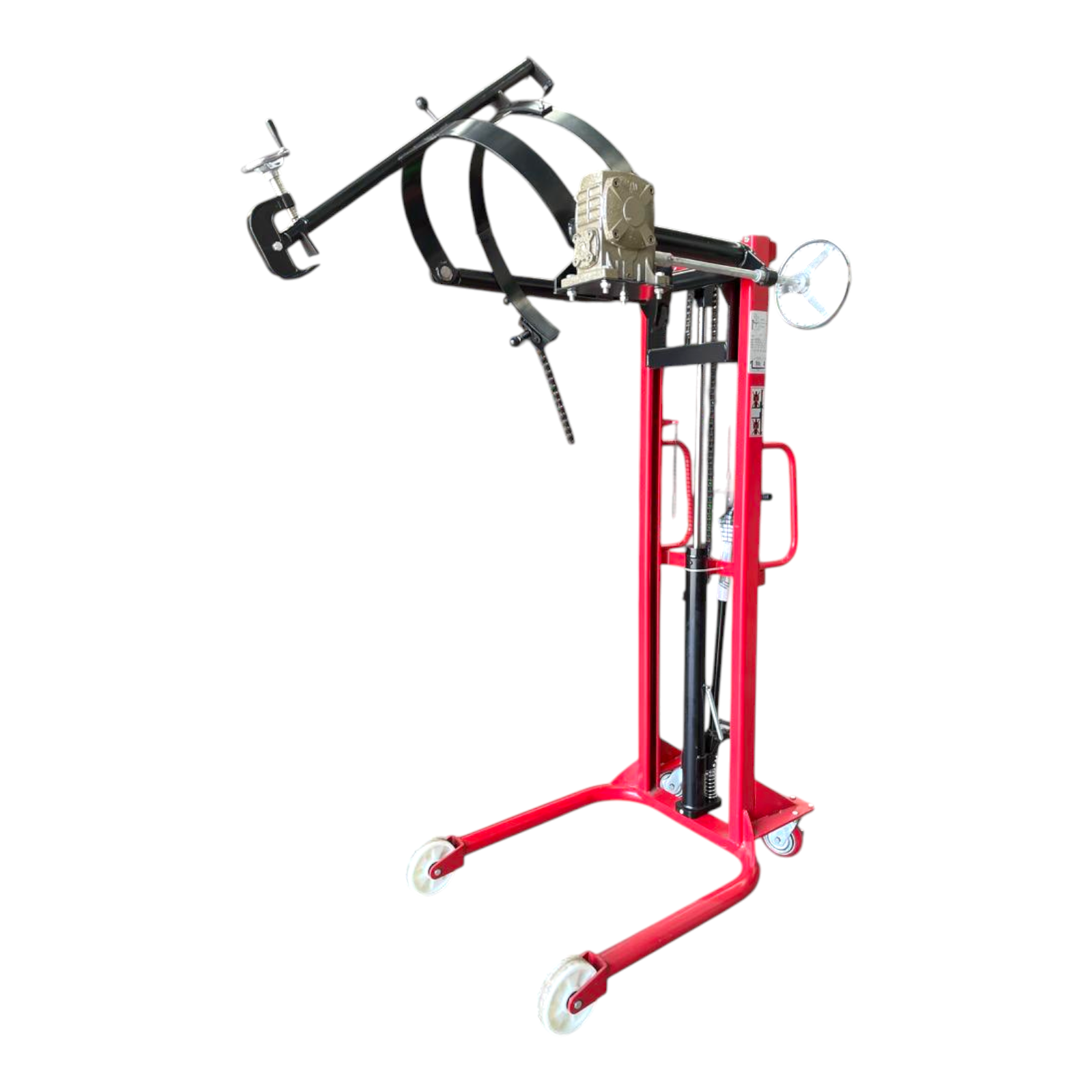

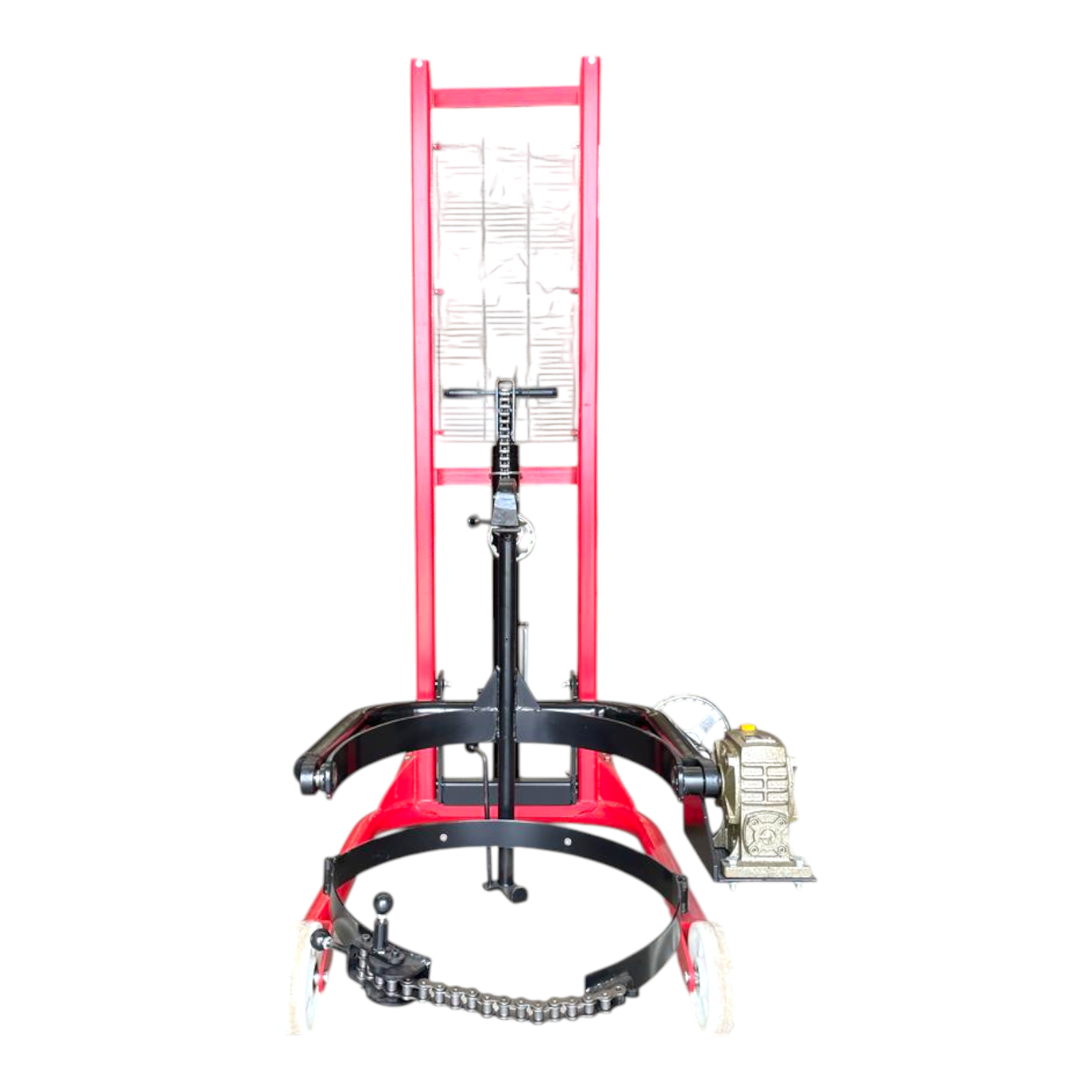

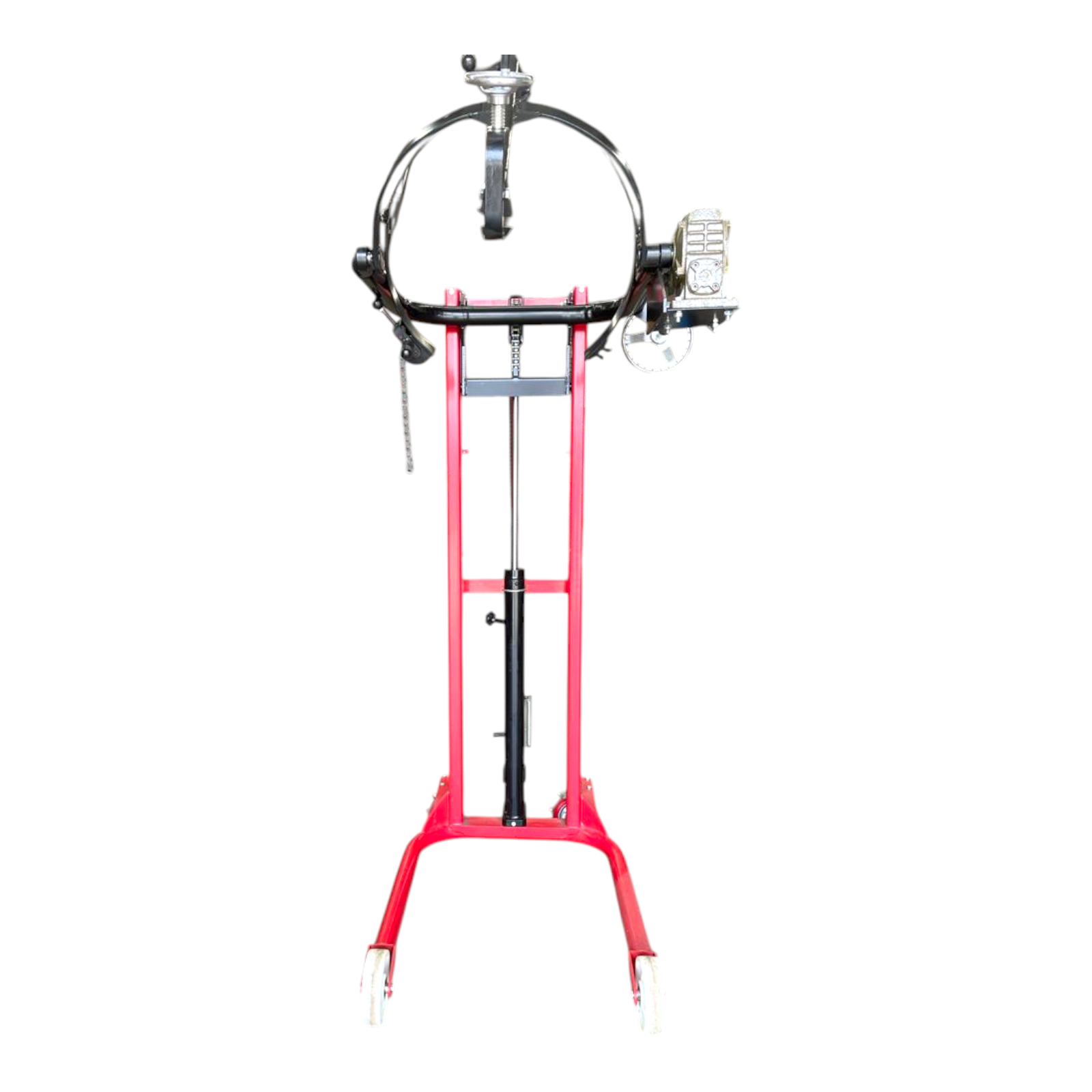

Optional Bottom Cage (DPT35C)
The DPT35C variant adds a bottom cage that fully encloses the drum base for additional security during transport and tipping - ideal for operations where drum stability is critical.
253 cm Vertical Lift Height
Lifts the drum top to 253 cm from ground level in the vertical position, and the drum top to 227 cm in the horizontal (tipped) position. Sufficient for loading drums onto elevated surfaces, racking, and vehicle trays.
Specifications
| Specification |
Value |
| Load Capacity |
350 kg |
| Suitable Drums |
200L metal drums, or drums with metal top lip |
| Lift Height — Drum Top (vertical) |
253 cm from ground |
| Lift Height — Drum Bottom (vertical) |
161 cm from ground |
| Lift Height — Drum Top (horizontal) |
227 cm from ground |
| Lift Height — Cradle Pivot (horizontal) |
193 cm from ground |
| Operation |
Hand or foot pedal pump, manual push/pull |
| Tilting |
Multi-gear system |
| Safety |
Top drum lip lock, bottom drum lock/support, rear wheel lock brakes |
Dimensions & Weight
| Measurement |
Value |
| Overall Dimensions (L × W × H) |
125 × 94 × 205 cm |
| Unit Weight |
163 kg |
| Shipping Dimensions (pallet) |
125 × 120 × 219 cm |
| Shipping Weight |
193 kg |
