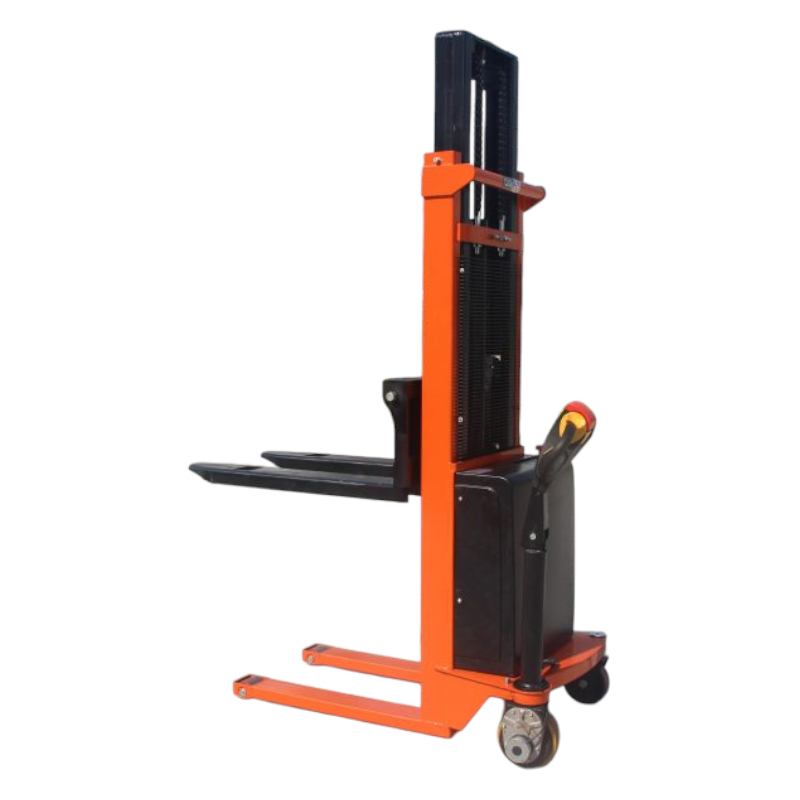

The Niuli FE30 is a 1,500 kg capacity full electric pallet stacker with a 3,000 mm maximum lift height. Full electric drive handles forward, reverse, lift, and drop - with 600 kg capacity retained at maximum height. The extra heavy-duty steel frame with chain and ram mast provides a stable, durable lifting platform for daily warehouse use.

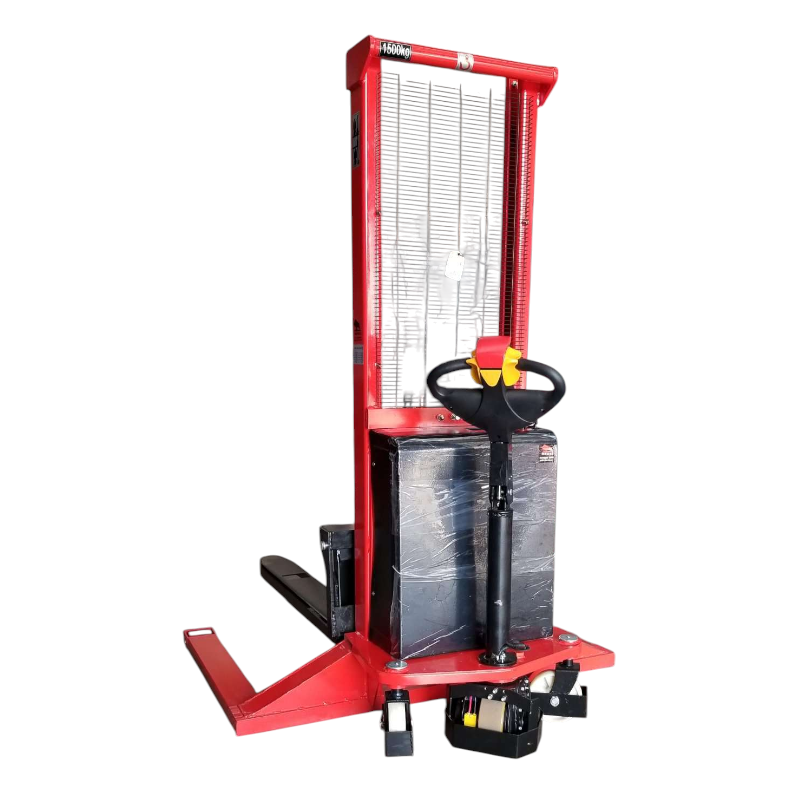

Available in Narrow or Straddle base configurations. The narrow base suits open one-faced pallets, narrow plastic pallets, and skids. The straddle base accommodates standard closed pallets with its wider leg clearance. An external charger (2 kg) plugs into a standard power point. Automatic magnetic brake system, emergency stop switch, and safety reverse are all standard.
Why buyers choose the FE30
3,000 mm Lift Height

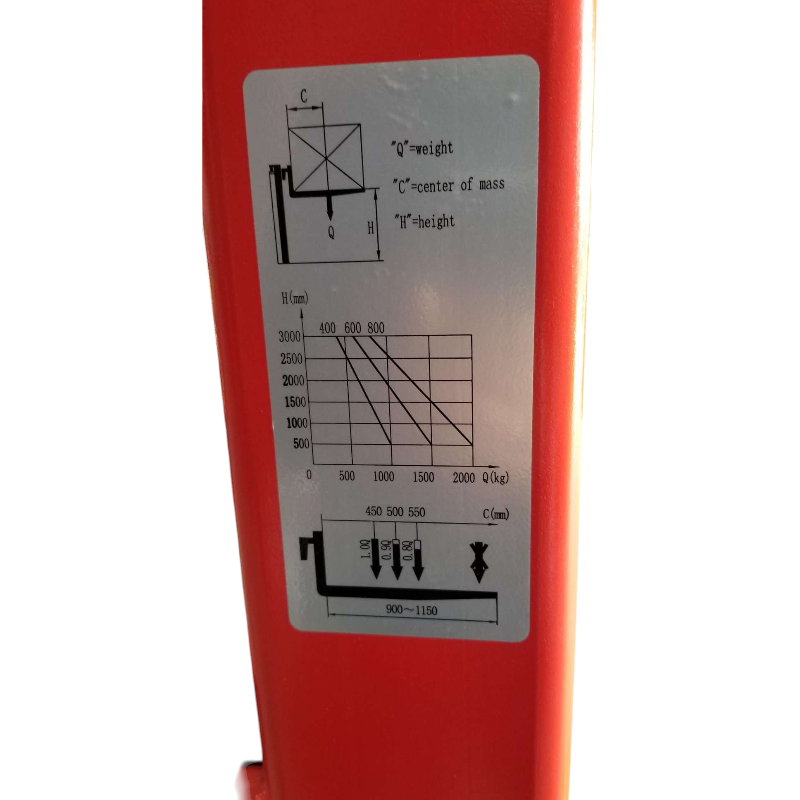

Lifts loads from 90 mm to 3,000 mm with 600 kg retained at maximum height and 1,500 kg at ground level. Suitable for racking, shelving, truck loading, and elevated storage positioning.
Full Electric Operation

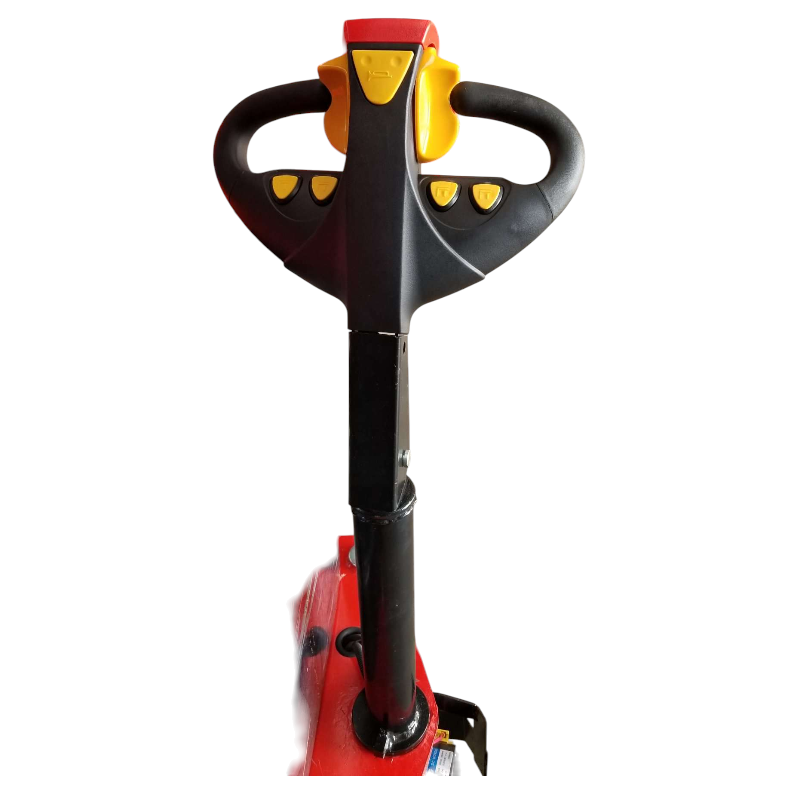

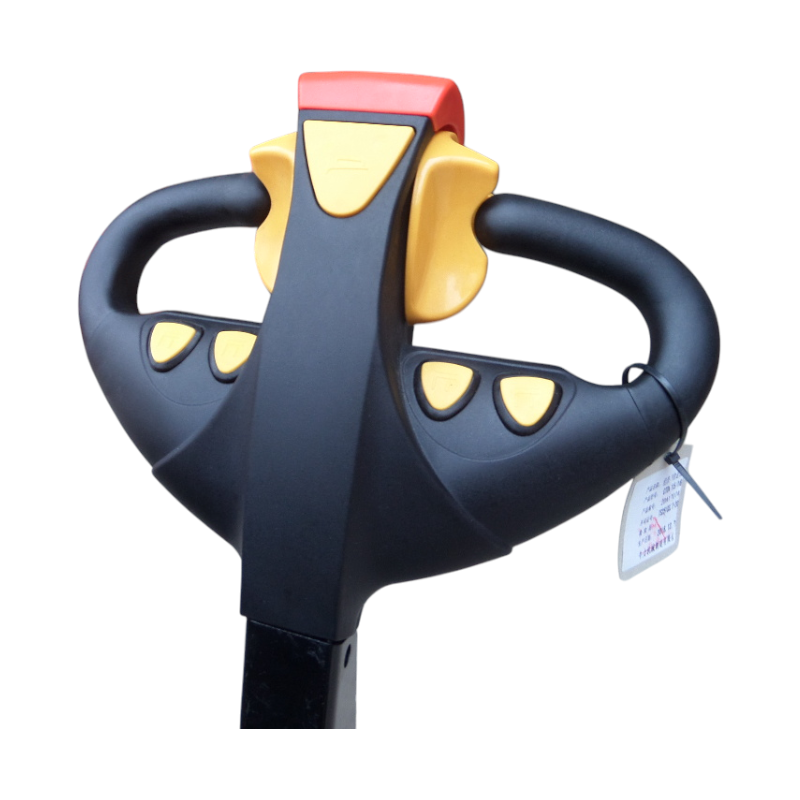

Forward, reverse, lift, and drop are all powered - no manual effort required. Reduces operator fatigue across full shifts.

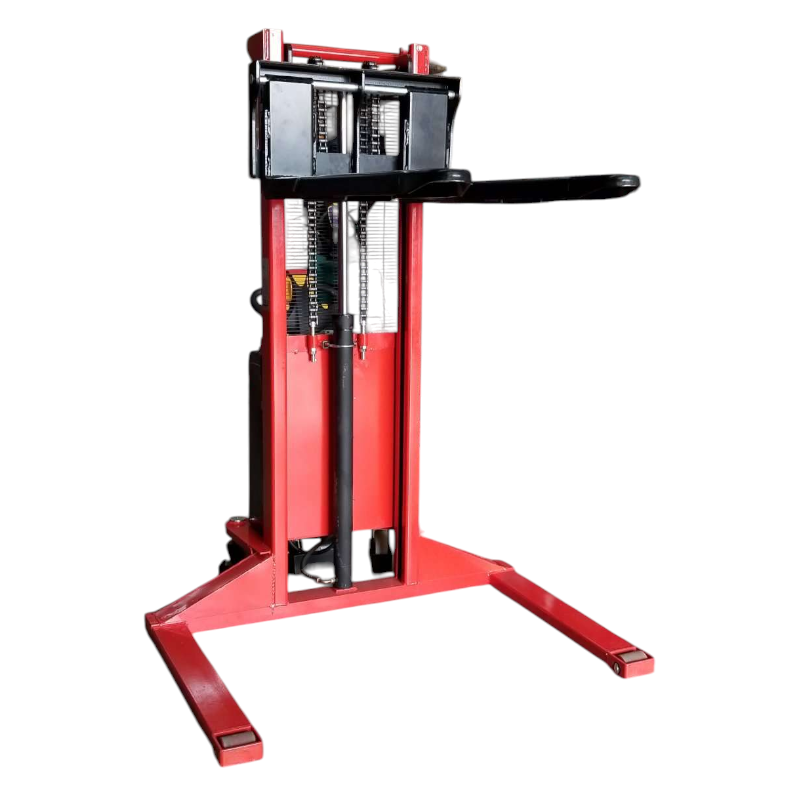

Narrow or Straddle Base

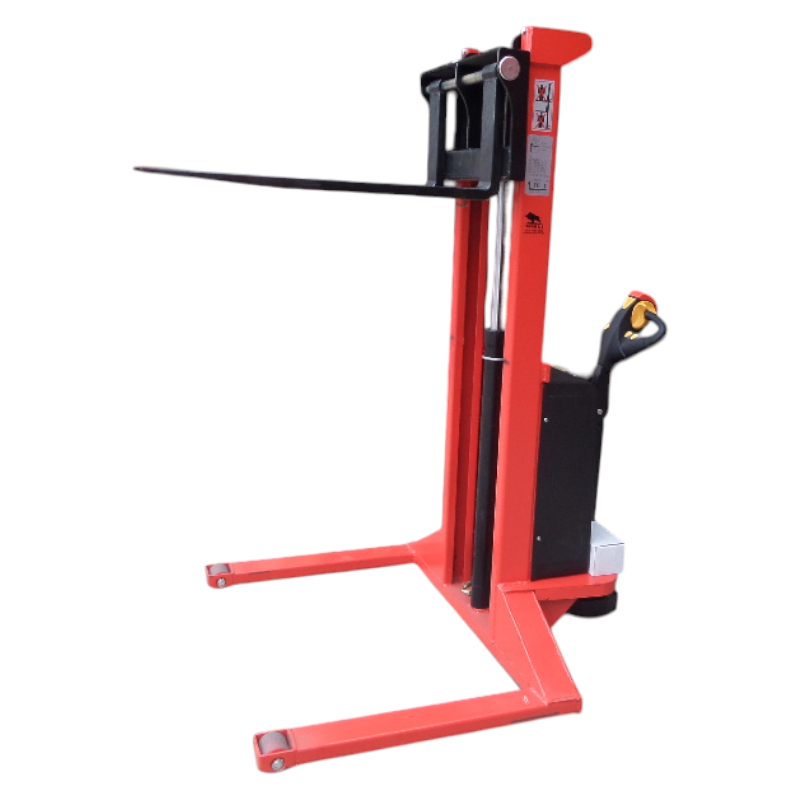

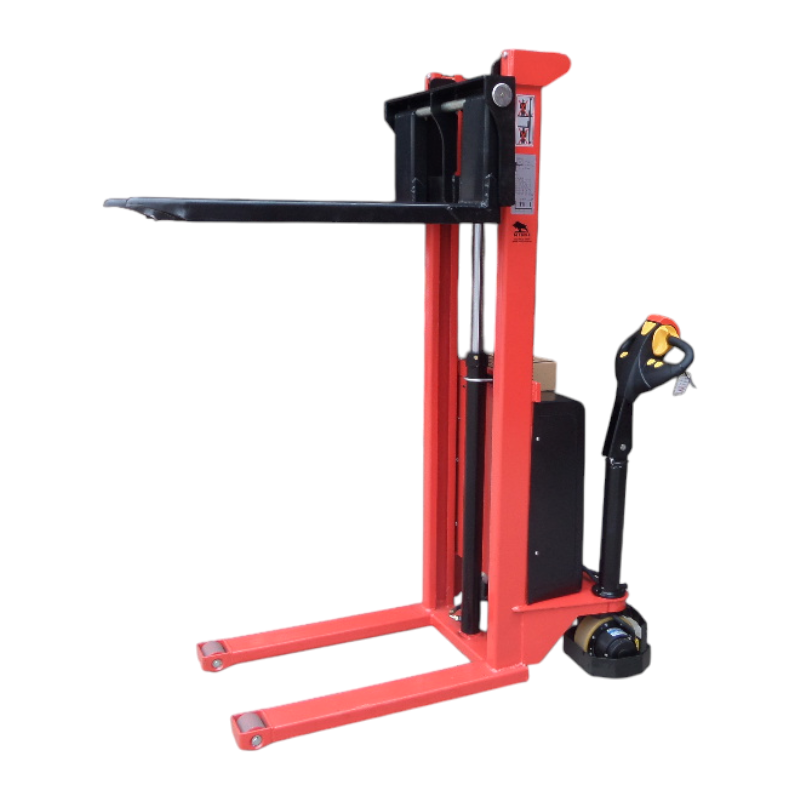

Choose Narrow for open one-faced pallets, narrow plastic pallets, skids, equipment, boxes, and machinery. Choose Straddle for standard closed pallets where the wider leg clearance allows the base to straddle the pallet.
Dual Use - Stacker and Pallet Jack
At minimum height (90 mm), the unit functions as a standard pallet jack for floor-level transport. Lift the mast to stack. One piece of equipment covers both tasks.
Safety Features

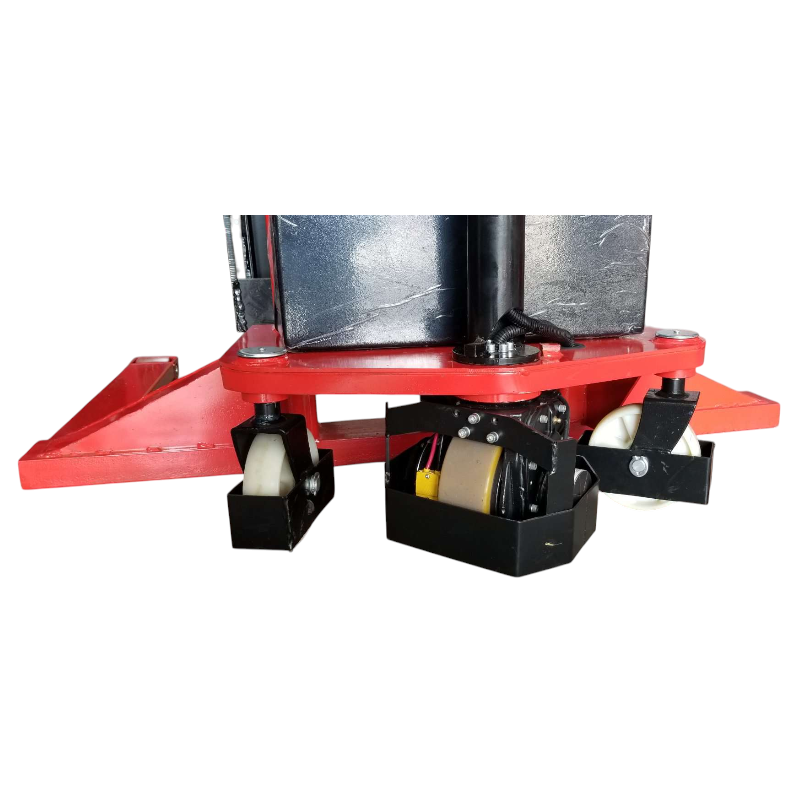

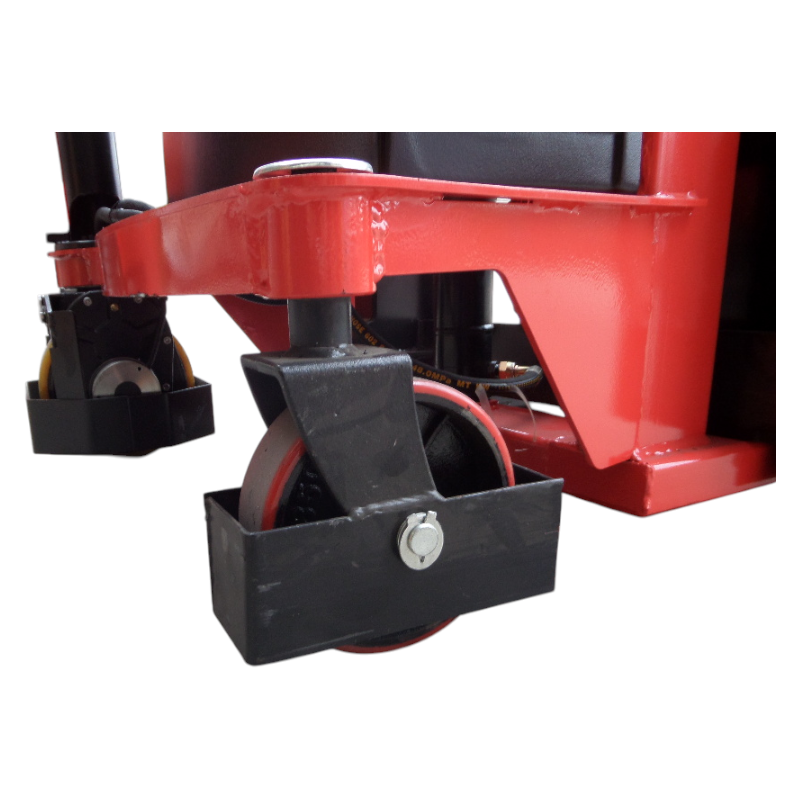

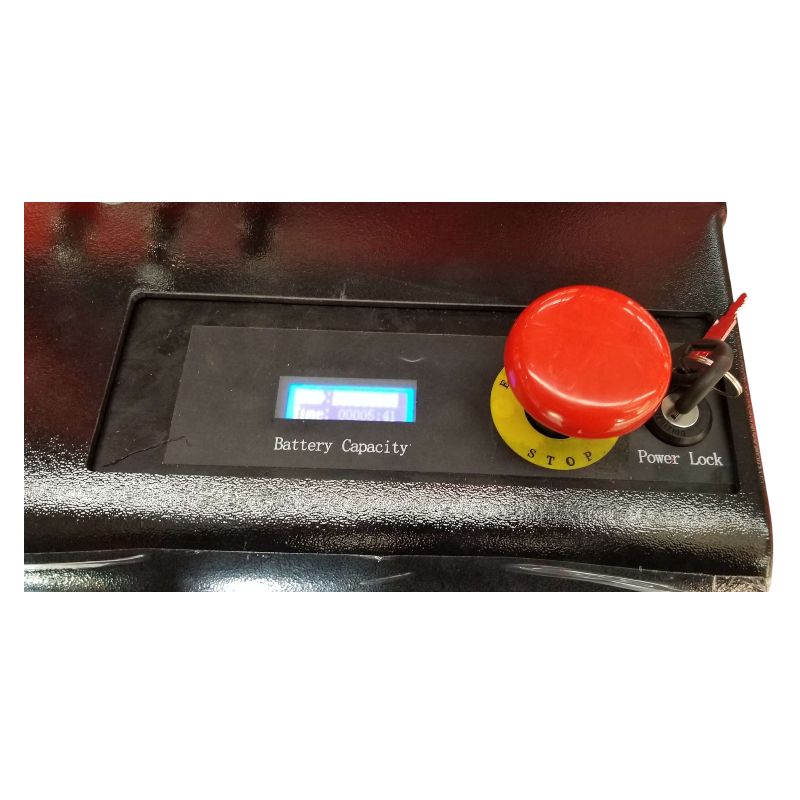

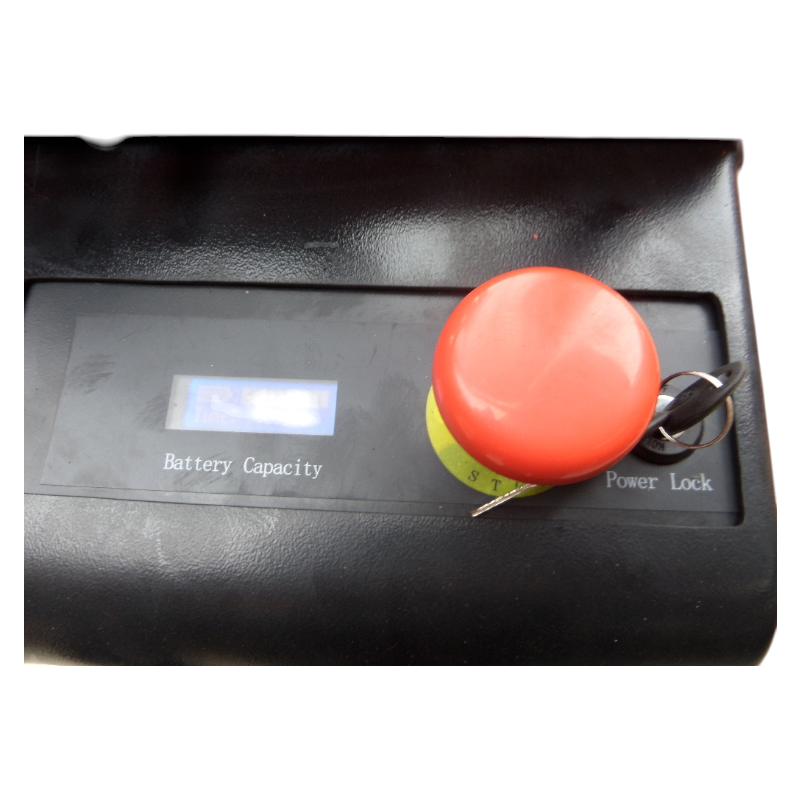

Automatic magnetic brake system holds the mast at any height. Emergency stop switch and safety reverse electric switch are standard. Polyurethane wheels provide non-marking, anti-slip operation.
Note: Narrow base legs cannot enter closed (double-faced) pallets — pallet must be one-faced for narrow configuration.
Specifications
| Specification |
Narrow (FE30N) |
Straddle (FE30W) |
| Load Capacity |
1,500 kg (ground) / 600 kg (at 3,000 mm) |
| Operation Type |
Full Electric - drive, lift, and drop |
| Max Lift Height |
3,000 mm |
| Min Fork Height |
90 mm |
| Single Fork Dimensions (L × W × T) |
1150 × 150 × 65 mm |
1150 × 150 × 65 mm |
| Adjustable Forks Width (outer tips) |
360–690 mm |
360–690 mm |
| Clearance Between Forks |
0–550 mm |
0–550 mm |
| Clearance Between Legs |
360 mm |
1,220 mm |
| Overall Legs Width |
670 mm |
1,460 mm |
| Turning Radius |
2,800 mm |

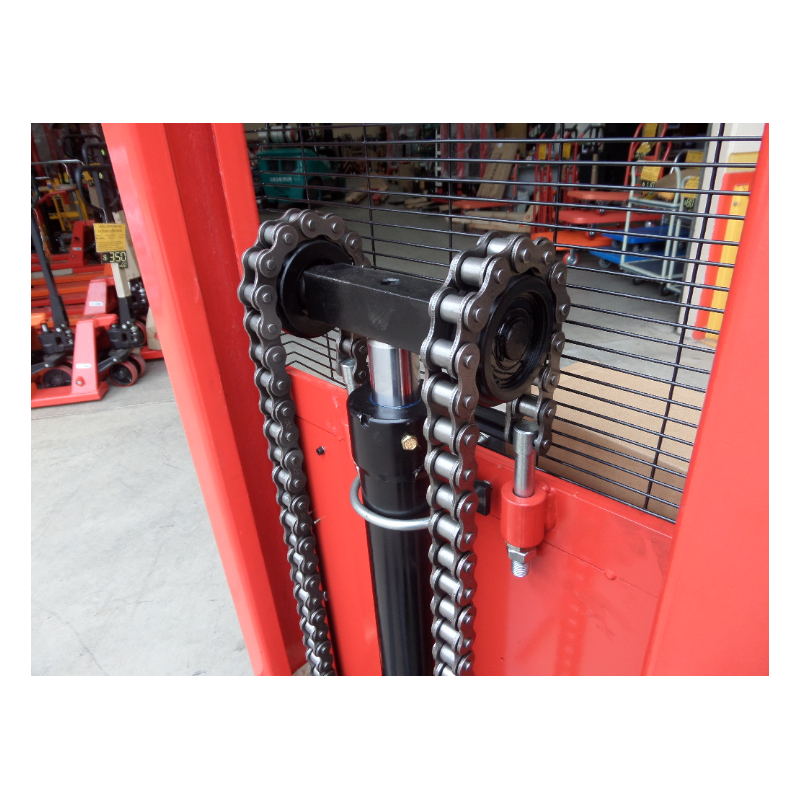

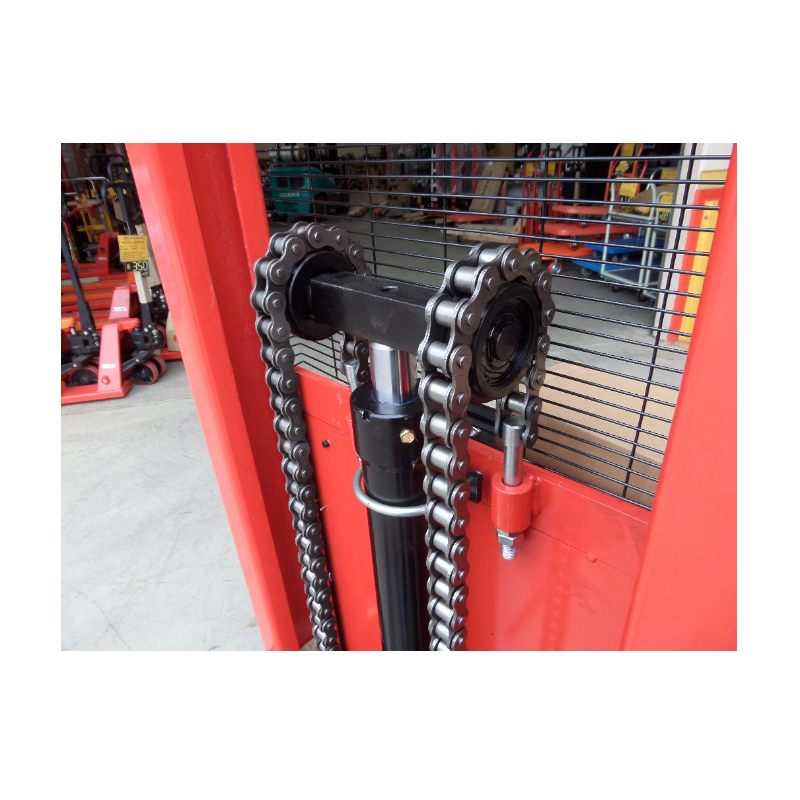

| Mast Construction |
Extra heavy-duty steel frame, chain and ram |
| Brake System |
Automatic magnetic brake |
| Charger |
External charger (2 kg), plugs into standard power point |
| Wheel Material |
Polyurethane - non-marking, anti-slip |
Dimensions & Weight
| Measurement |
Narrow (FE30N) |
Straddle (FE30W) |
| Overall Dimensions (L × W × H) |
187 × 69 × 208 cm |
187 × 146 × 208 cm |
| Unit Weight |
385 kg |
405 kg |
| Shipping Dimensions (pallet) |
190 × 120 × 227 cm |
190 × 150 × 227 cm |
| Shipping Weight |
415 kg |
445 kg |
