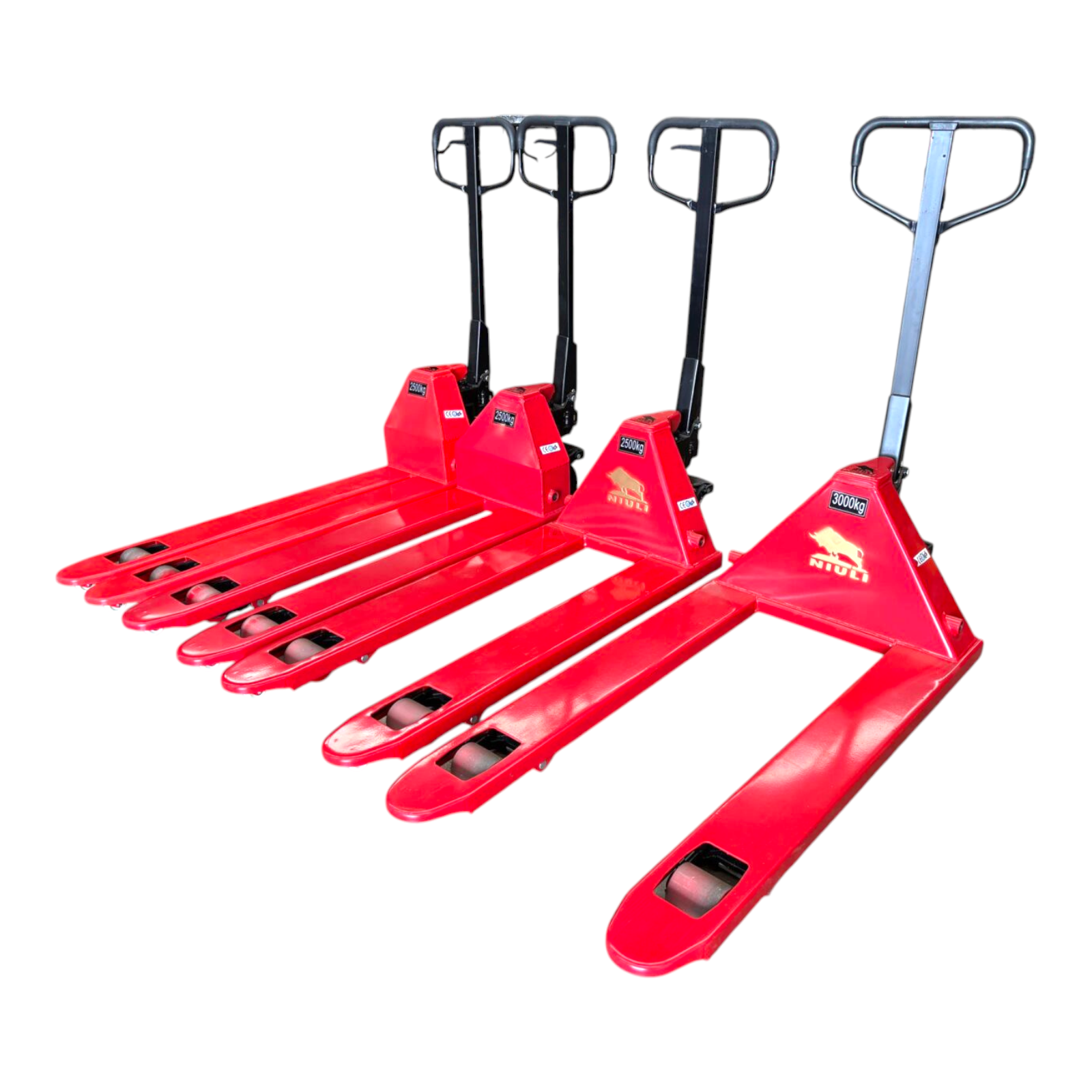

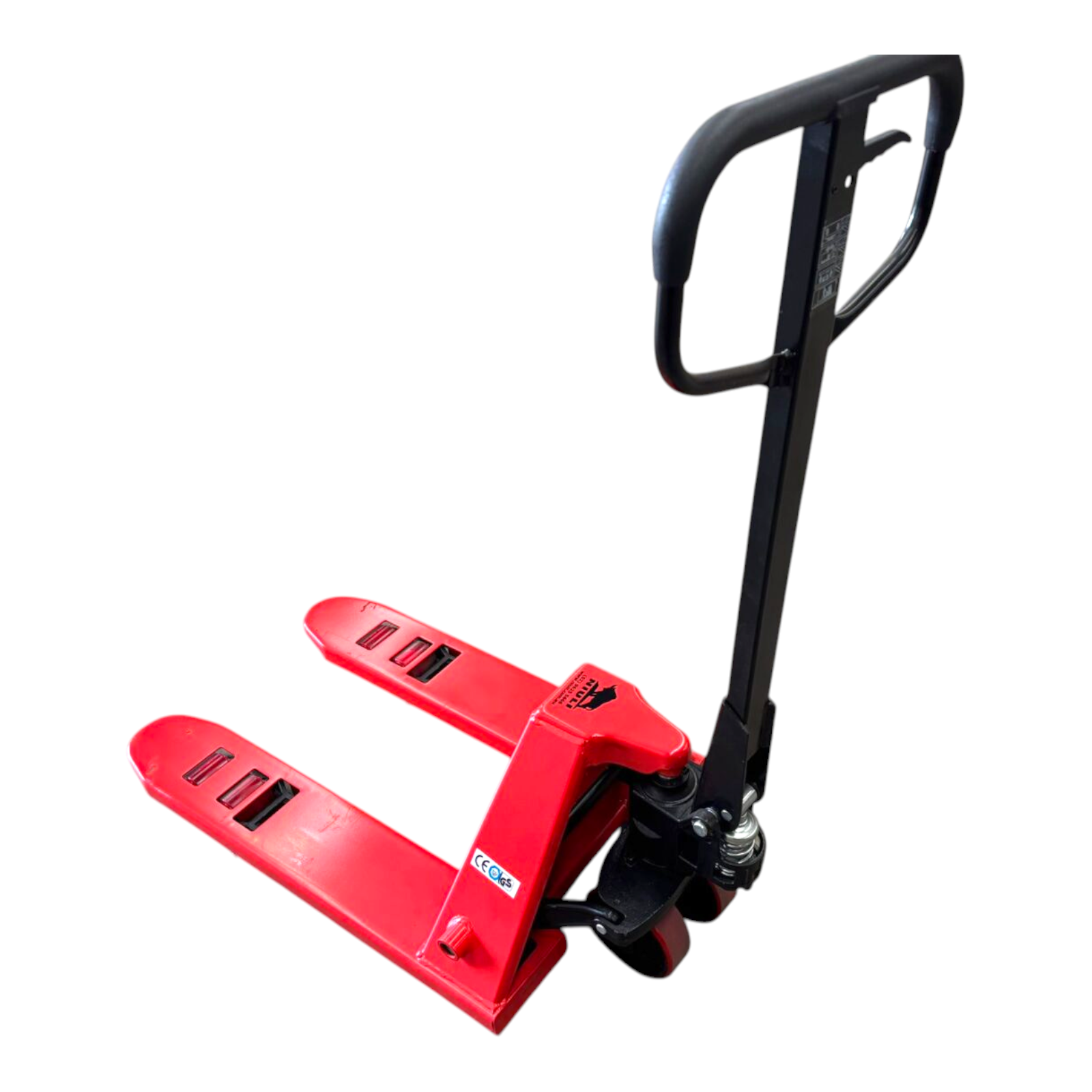

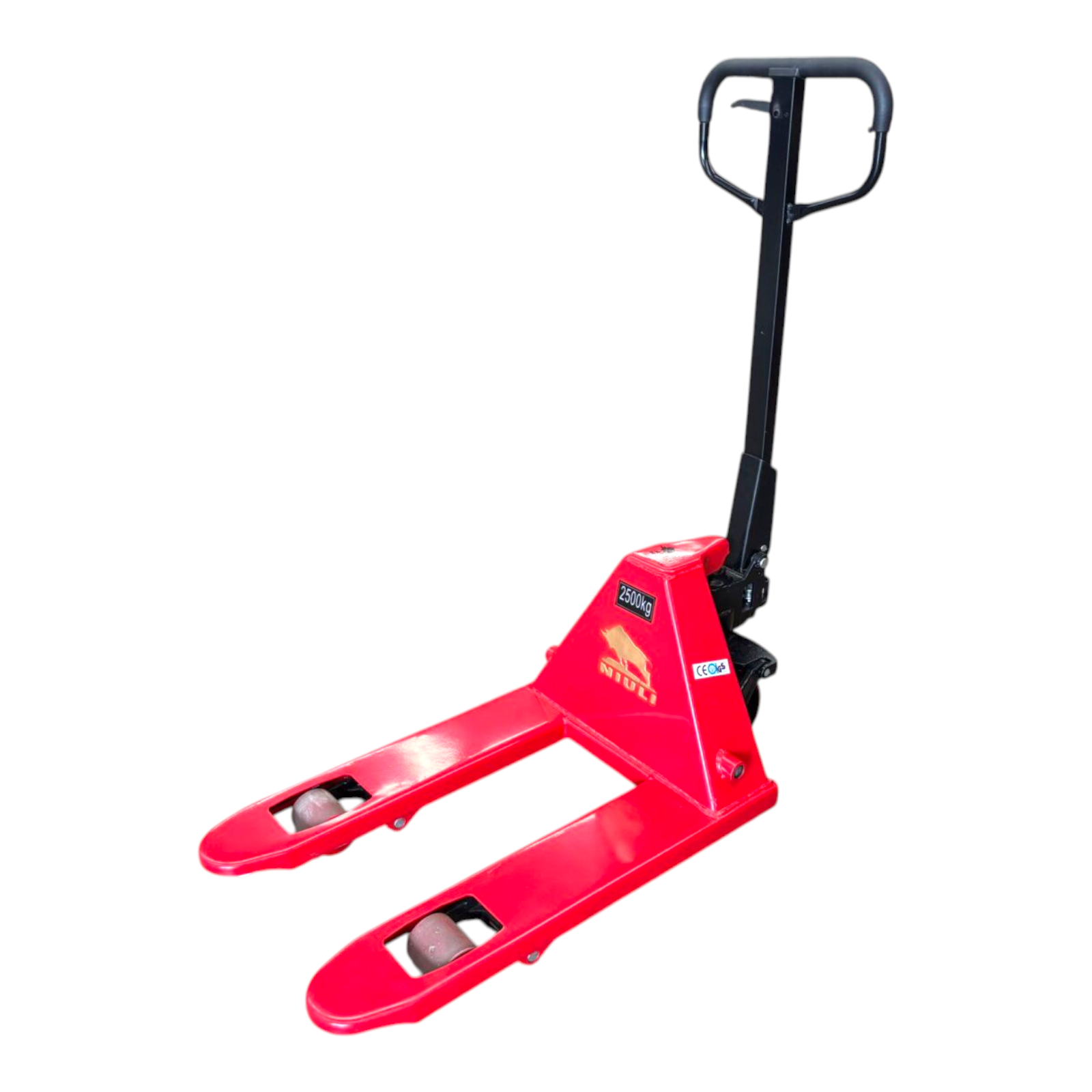

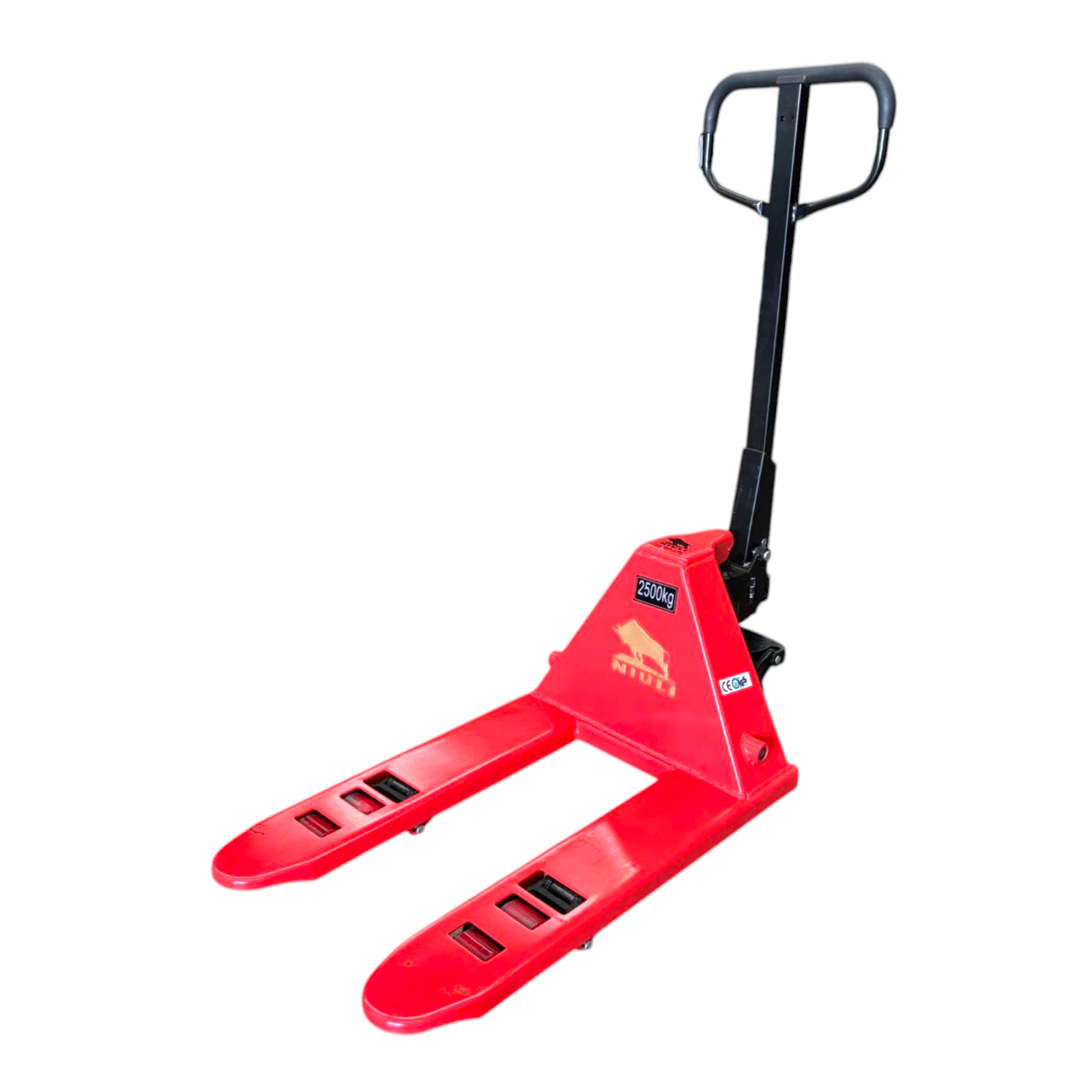

The Niuli SN25 is a 2,500 kg capacity short narrow manual pallet jack with 700 mm forks - designed for moving vending machines, machinery, safes, short pallets, equipment, and packaging where standard 1,150 mm forks are too long. The narrow 550 mm fork width suits tight spaces and non-standard loads.

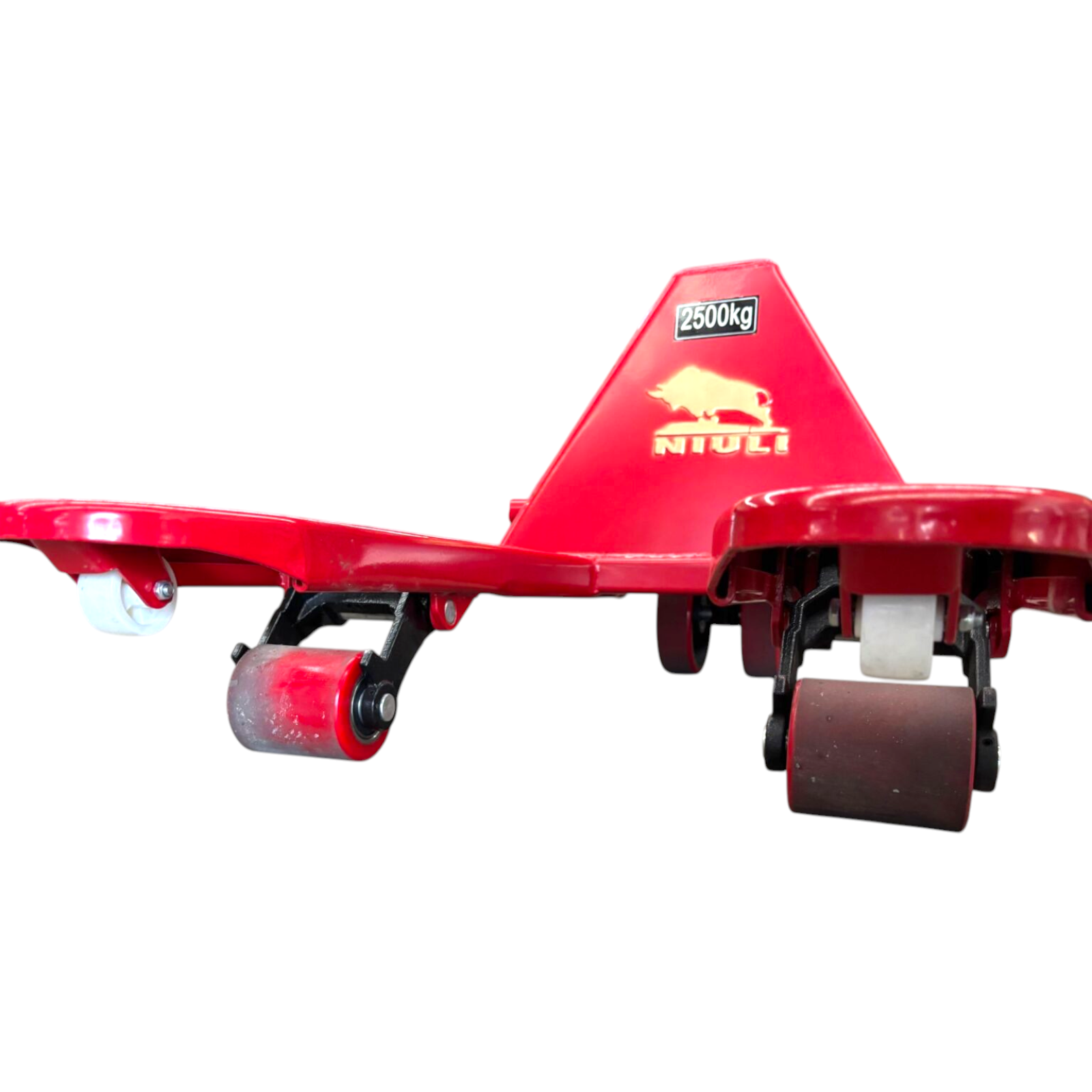

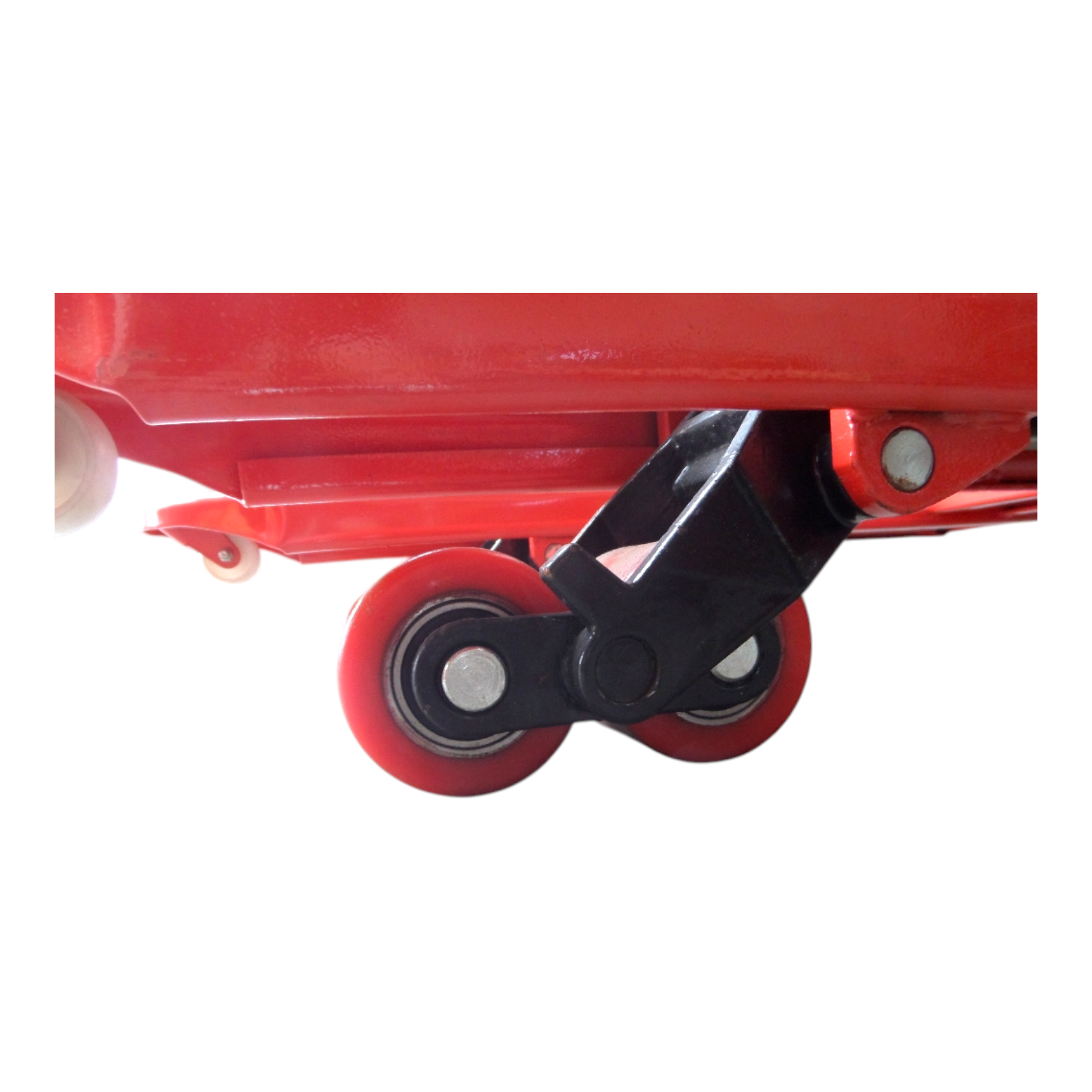

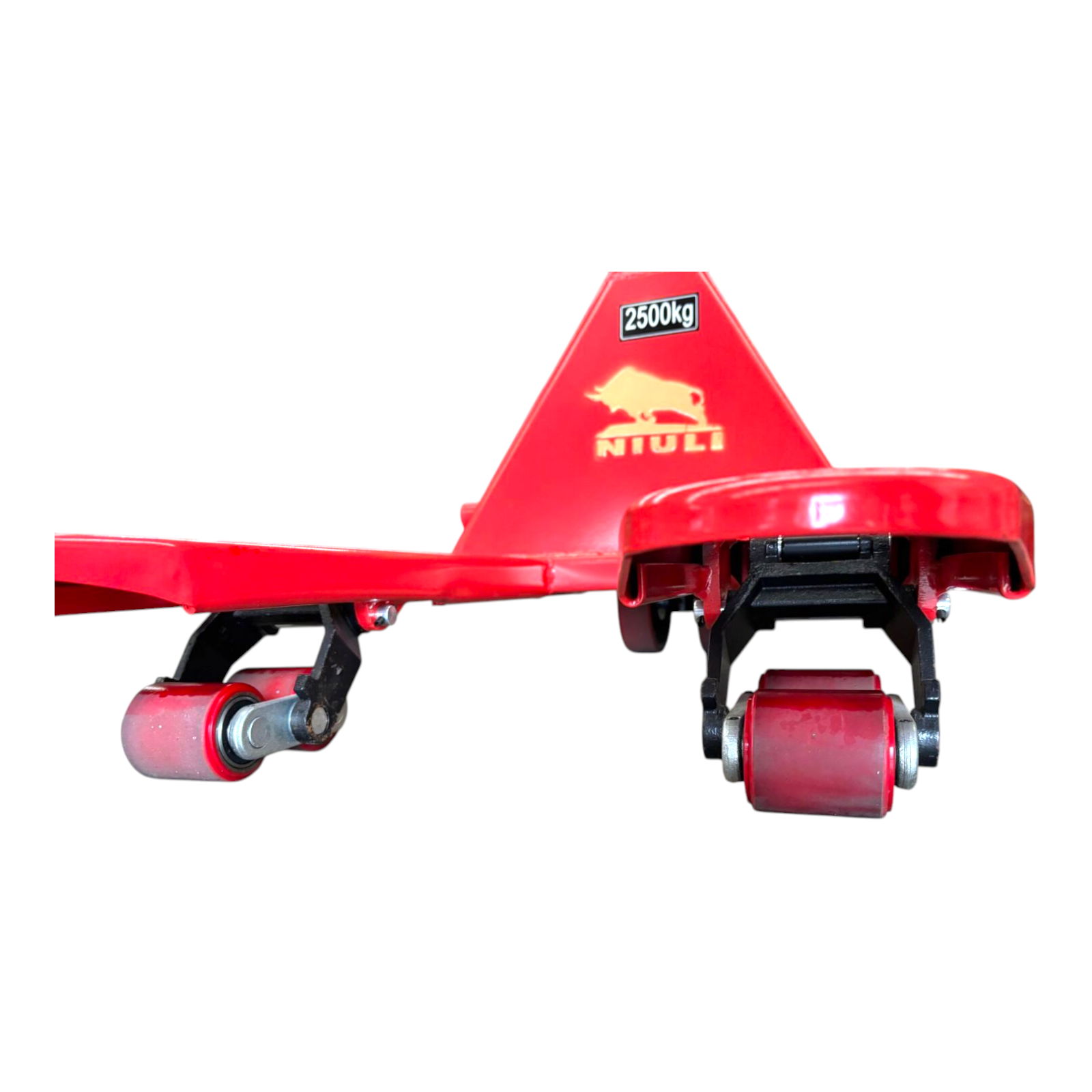

Available in Standard (85–195 mm fork height) or Low Profile (65–190 mm fork height) for equipment and loads with restricted ground clearance. Single front polyurethane wheels provide non-marking, anti-slip operation.
700 mm Short Forks
Purpose-built for loads that don't require full-length forks. Handles vending machines, ATMs, safes, short pallets, compressors, and other compact heavy loads that are difficult to manage with standard-length jacks.
Low Profile Option (SN25L)
The low profile variant starts at just 65 mm minimum fork height - getting under equipment and loads with restricted ground clearance that standard 85 mm forks can't reach.
2,500 kg Capacity
Full heavy-duty capacity in a compact format. Handles the weight of vending machines (typically 200–400 kg), commercial safes (100–1,500 kg), and industrial machinery.
Narrow 550 mm Width
The 550 mm outer fork width and 230 mm clearance between forks suit tight doorways, corridors, and confined installation spaces.
| Specification | Standard (SN25) | Low Profile (SN25L) |
|---|---|---|
| Load Capacity | 2,500 kg | |
| Fork Length | 700 mm | |
| Forks Outer Width | 550 mm | |
| Clearance Between Forks | 230 mm | |
| Min Fork Height | 85 mm | 65 mm |
| Max Fork Height | 195 mm | 190 mm |
| Wheel Material | Polyurethane - non-marking, anti-slip | |
| Wheel Configuration | Single front | |
| Measurement | Value |
|---|---|
| Overall Dimensions (L × W × H) | 109 × 55 × 121 cm |
| Unit Weight | 73 kg |
| Shipping Dimensions (skid) | 130 × 58 × 58 cm |
| Shipping Weight | 83 kg |
Niuli Machinery Manufacture Co., Ltd. is a specialist material handling equipment manufacturer founded in 1999 and based in Heshan City, Guangdong Province, China. Operating from a 330,000 m² production facility certified to ISO 9001:2015, Niuli exports to more than 120 countries and produces over 100 models of material handling equipment.
