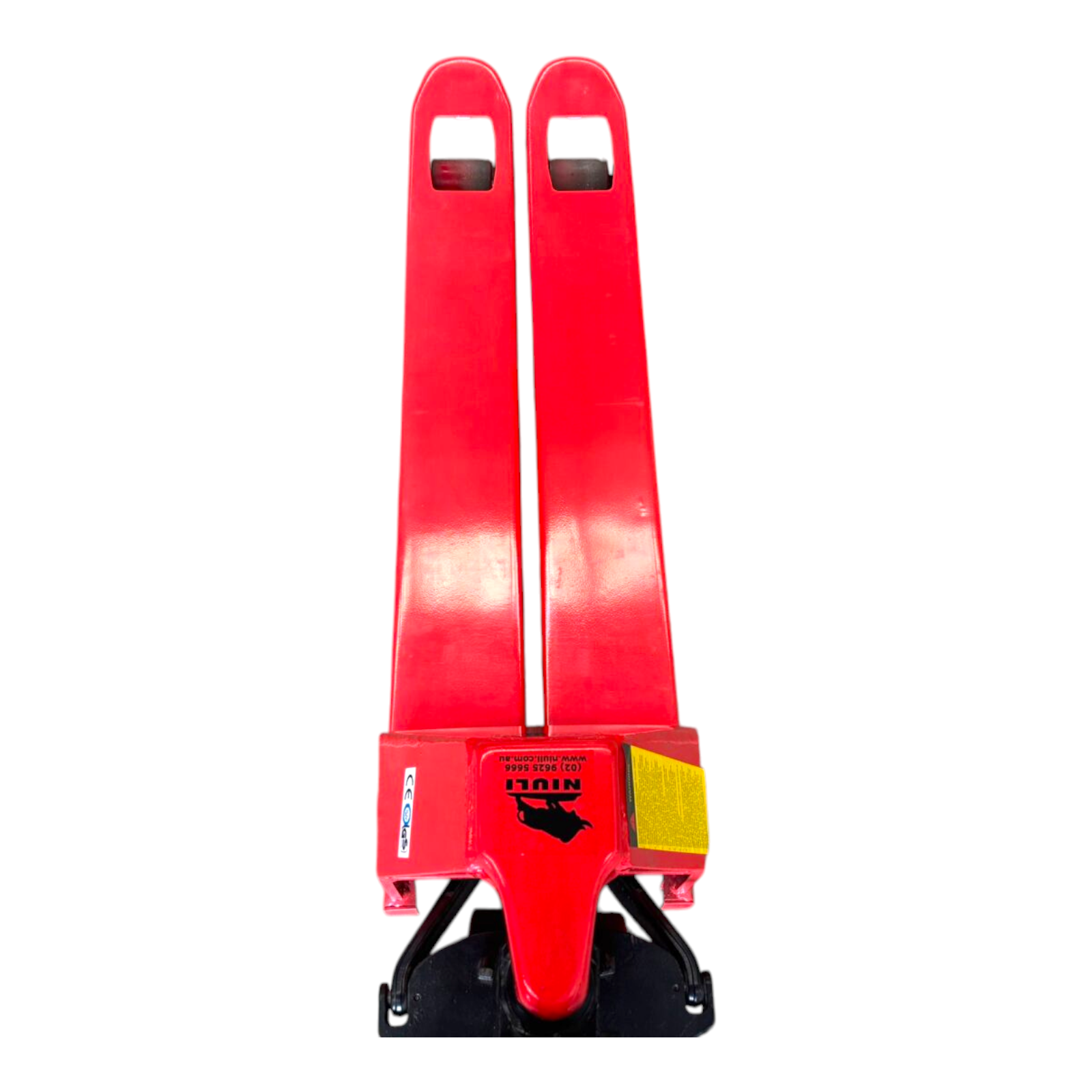

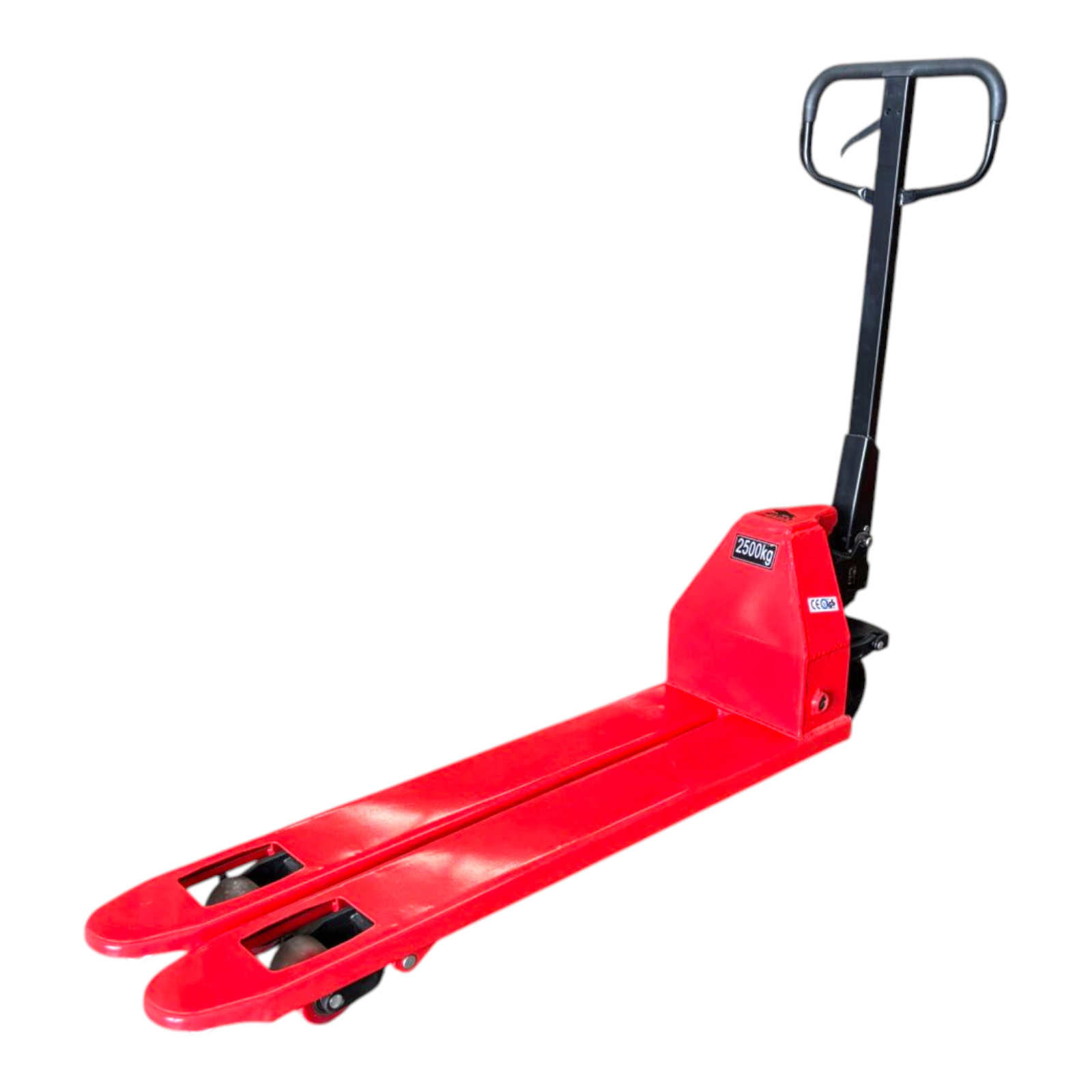

The Niuli EN34 is a 2,500 kg capacity extra narrow manual pallet jack with a 340 mm outer fork width - the narrowest pallet jack in the Niuli range. Built with heavy-duty steel construction and a sturdy frame, the EN34 is designed for narrow aisles, tight spaces, narrow pallets, boxes, cartons, and machinery that standard-width jacks can't access.

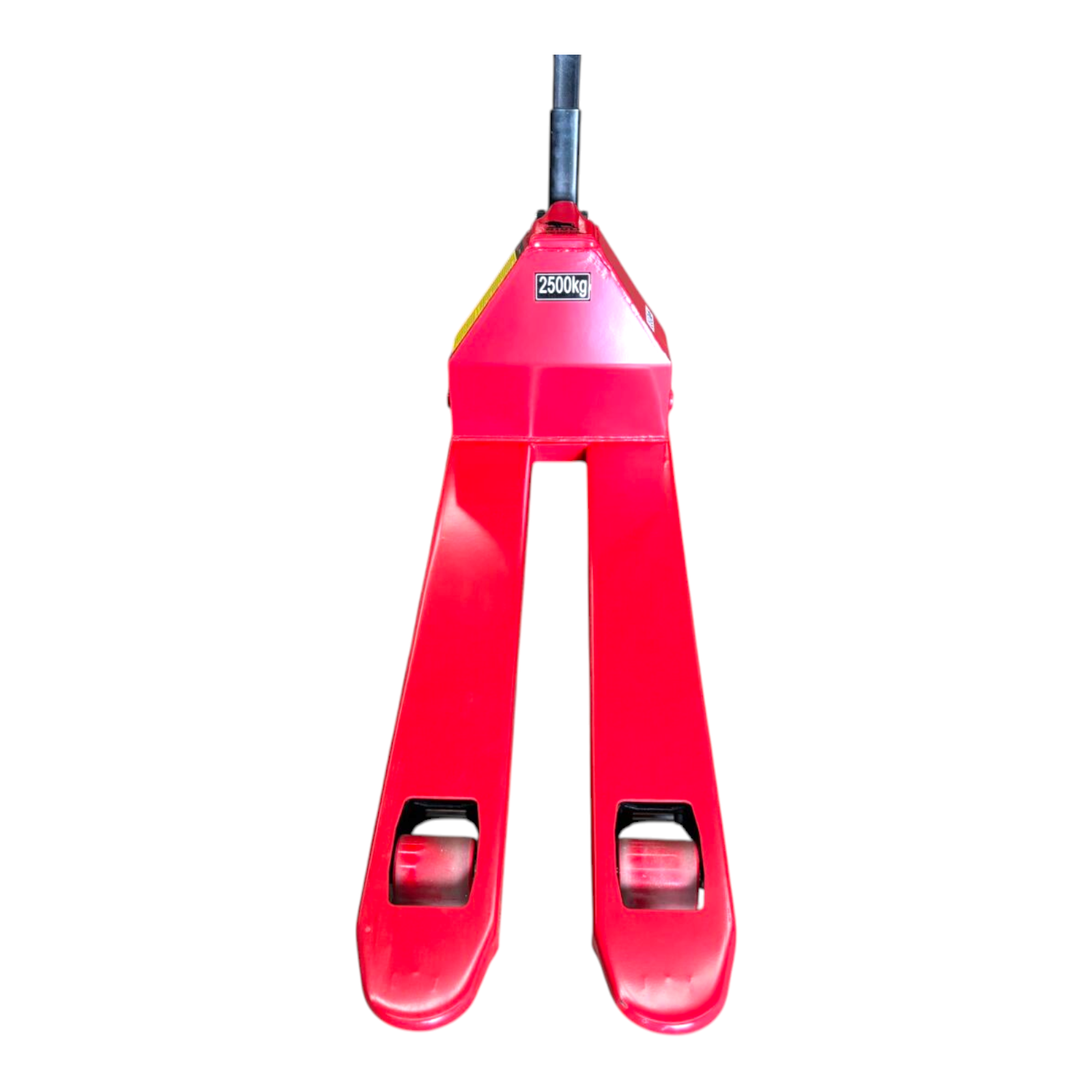

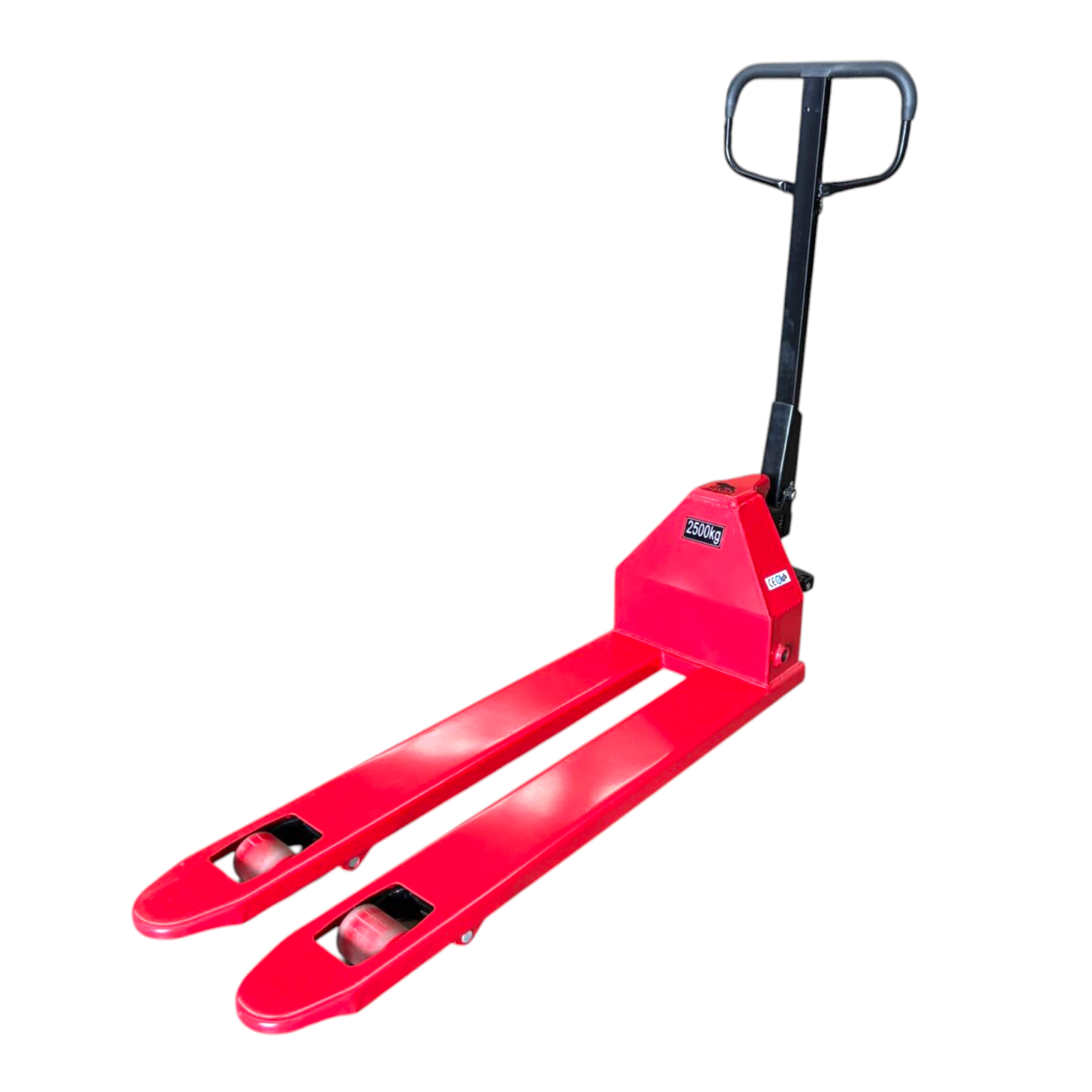

Also available in 420 mm width (EN42) at the same price. Single front polyurethane wheels provide non-marking, anti-slip operation. Standard 1,150 mm fork length.
340 mm Extra Narrow Width

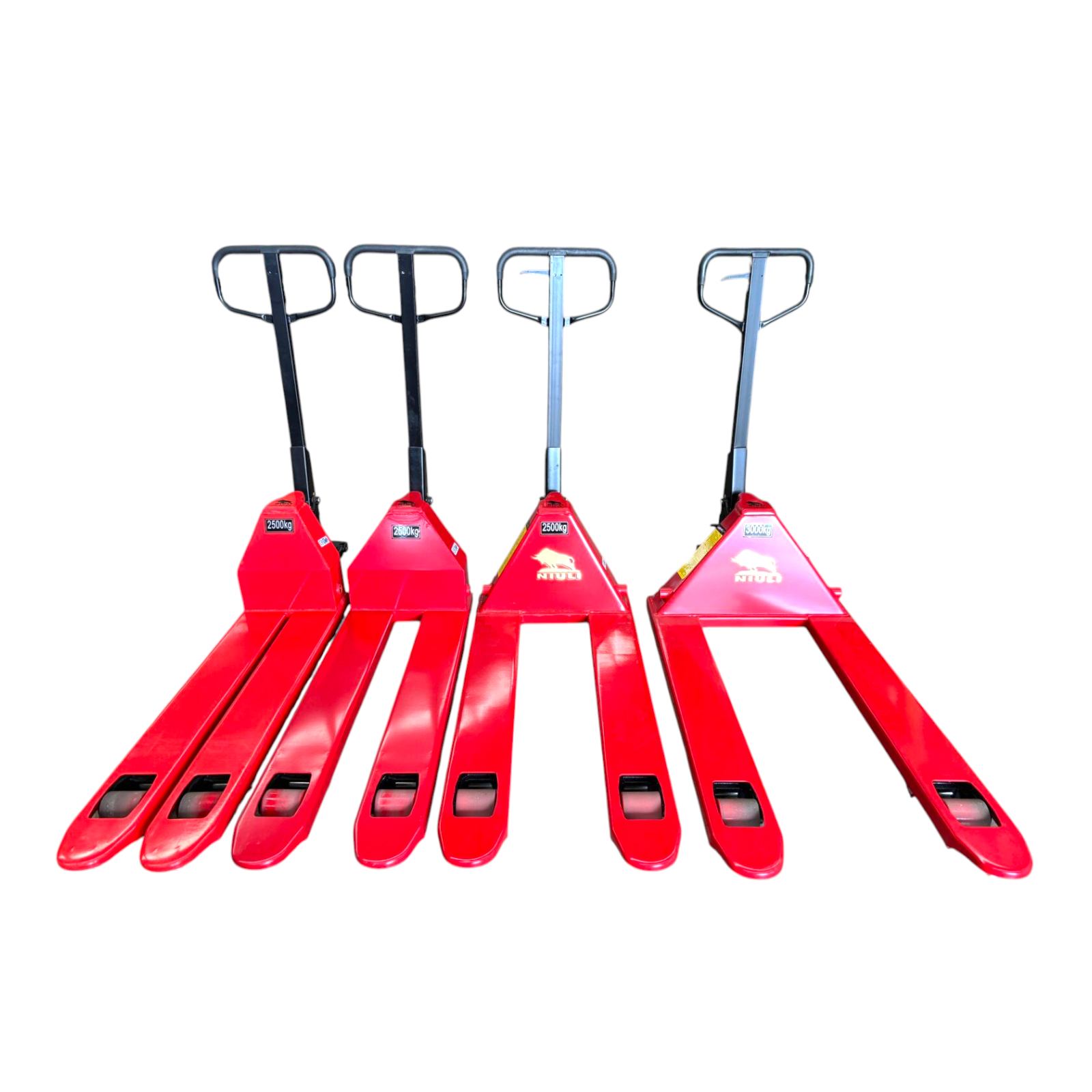

The narrowest pallet jack in the range. Fits through tight doorways, narrow aisles, and between racking where standard 550 mm or 685 mm jacks can't operate. Also available in 420 mm (EN42) for slightly wider loads.
2,500 kg Capacity
Full heavy-duty capacity despite the ultra-narrow profile. Handles heavy machinery, equipment, and industrial loads in confined spaces.
General Warehouse and Truck Use
Suitable for narrow aisles, tight spaces, in-truck manoeuvring, and any application where the load footprint is narrower than standard pallet dimensions.

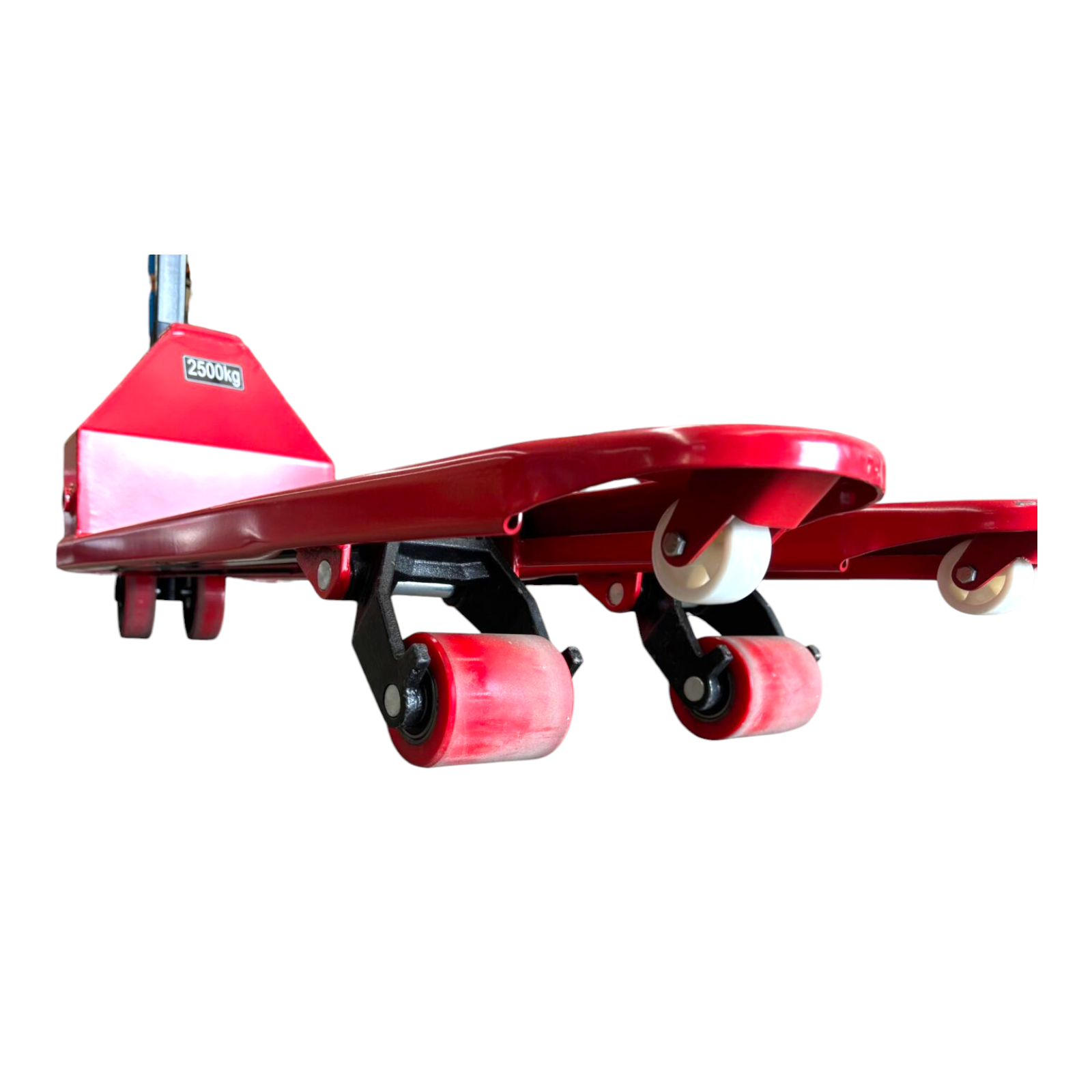

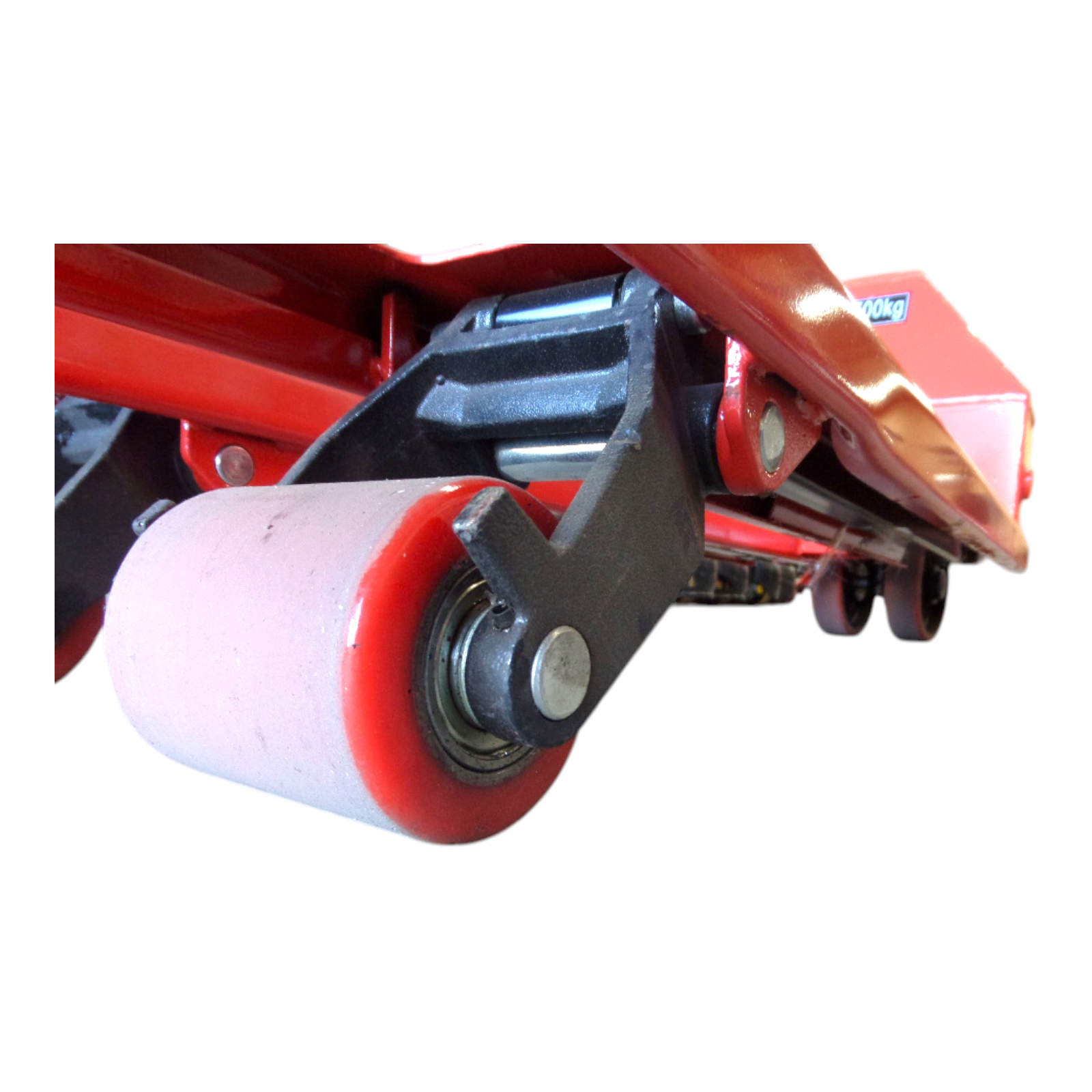

Non-Marking Polyurethane Wheels
Single front polyurethane wheel provides smooth drive and anti-slip grip without marking floors.
| Specification | EN34 | EN42 |
|---|---|---|
| Load Capacity | 2,500 kg | |
| Fork Length | 1,150 mm | |
| Forks Outer Width | 340 mm | 420 mm |
| Clearance Between Forks | 20 mm | 100 mm |
| Min Fork Height | 85 mm | |
| Max Fork Height | 195 mm | |
| Wheel Material | Polyurethane - non-marking, anti-slip | |
| Wheel Configuration | Single front | |
| Measurement | Value |
|---|---|
| Overall Dimensions (L × W × H) | 158 × 34 × 123 cm |
| Unit Weight | 72 kg |
| Shipping Dimensions (skid) | 160 × 60 × 60 cm |
| Shipping Weight | 85 kg |
Niuli Machinery Manufacture Co., Ltd. is a specialist material handling equipment manufacturer founded in 1999 and based in Heshan City, Guangdong Province, China. Operating from a 330,000 m² production facility certified to ISO 9001:2015, Niuli exports to more than 120 countries and produces over 100 models of material handling equipment.
