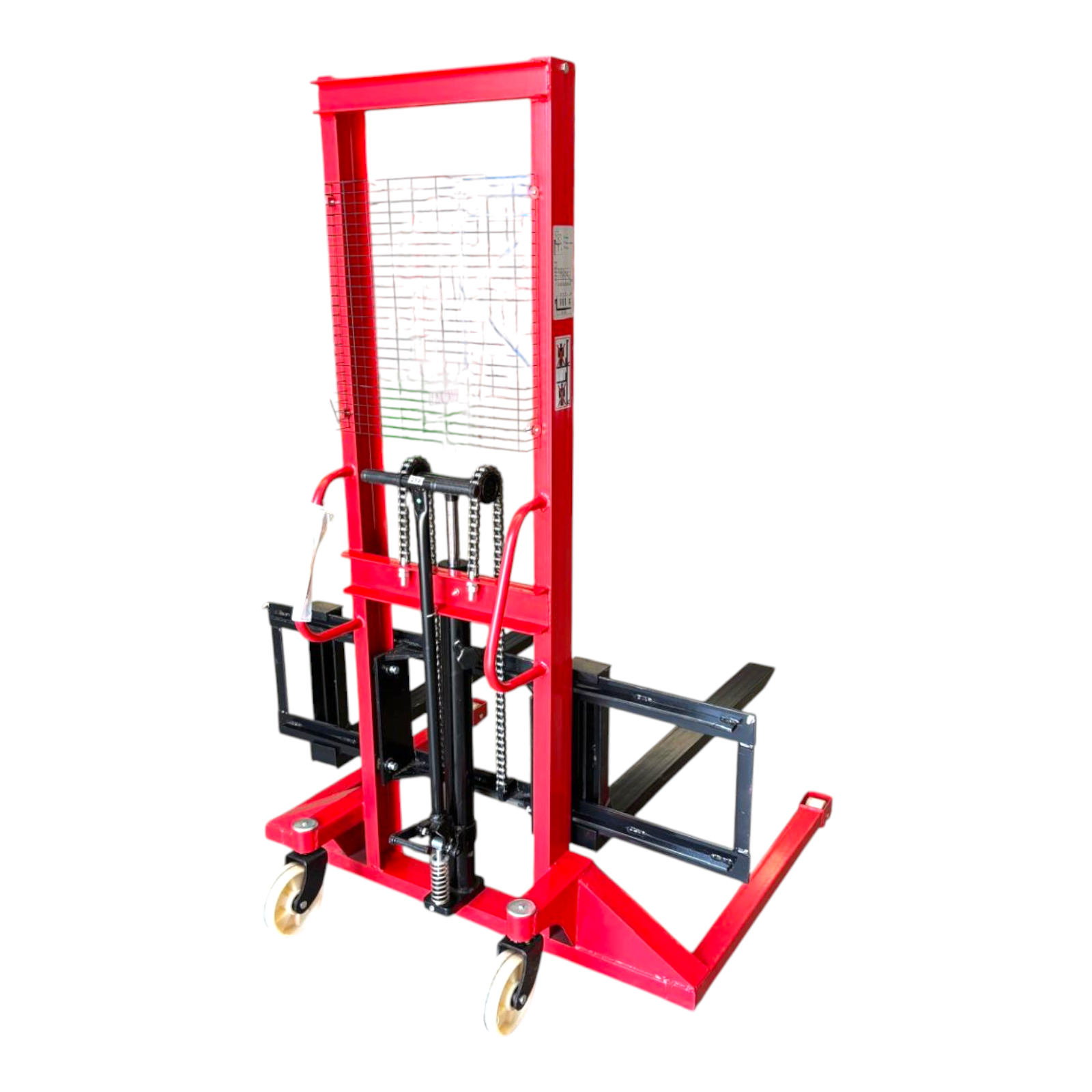

The Niuli S10WL is a 1,000 kg capacity light duty straddle manual pallet stacker with a 1,600 mm maximum lift height. The straddle base with 1,220 mm clearance between legs straddles standard closed pallets, Australian Standard pallets, CHEP pallets, and Loscam pallets. Suitable for light loads or occasional use with heavy loads.
Fully manual operation with hand or foot pedal pump for lifting and manual push/pull for movement. Adjustable fork width from 210 mm to 1,230 mm. At 145 kg, the S10WL is significantly lighter than the heavy-duty S10W (252 kg), making it easier to manoeuvre in tight spaces.

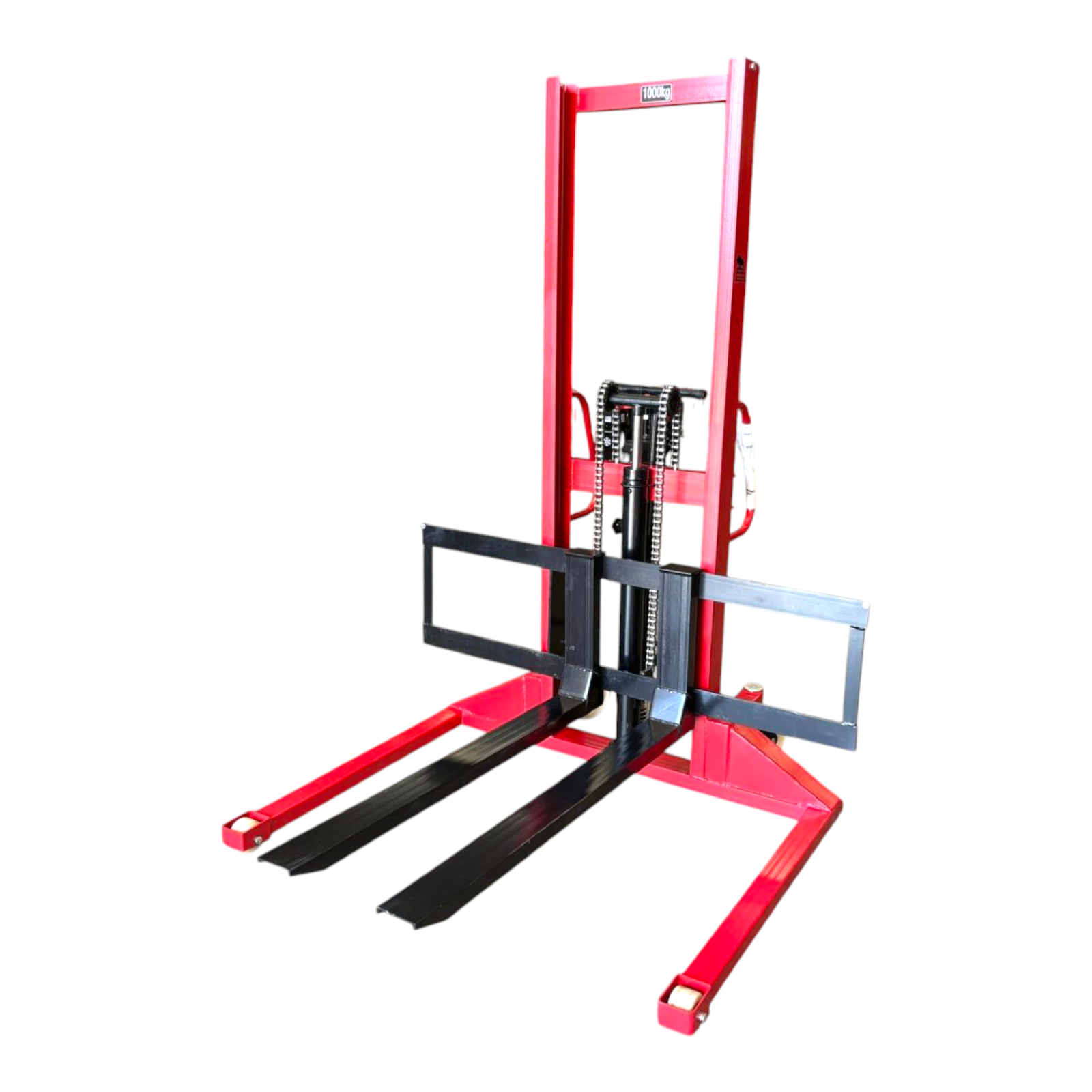

Straddle Base - Works with Closed Pallets
The 1,220 mm clearance between legs straddles standard closed pallets without restriction. No need for open one-faced pallets.
Light Duty - Lower Weight, Lower Price
At 145 kg (vs. 252 kg for the heavy-duty S10W), the S10WL is easier to push and manoeuvre. Suitable for light loads or occasional heavy-load use — not for continuous heavy-duty daily operation.
1,600 mm Lift Height

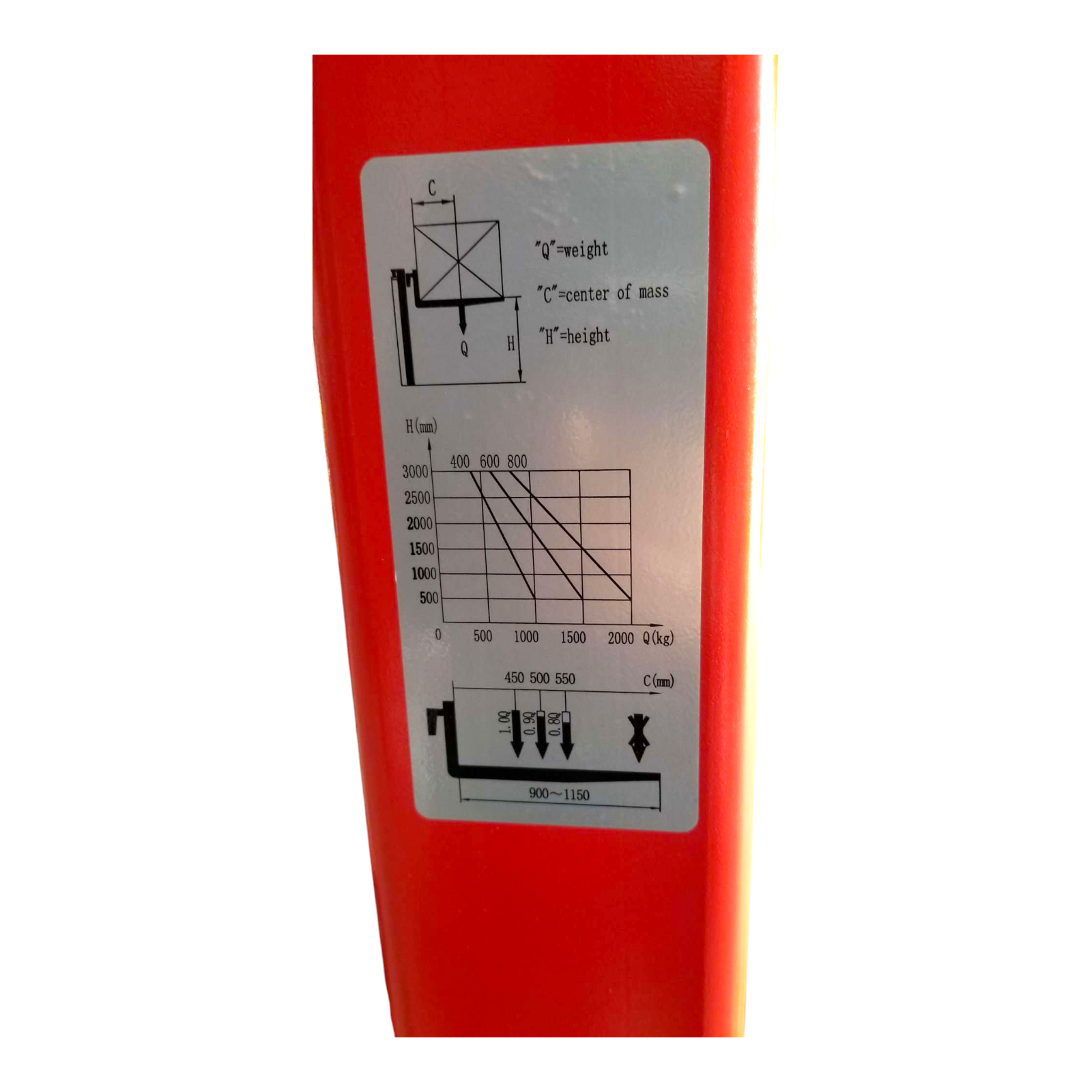

Lifts loads from 120 mm to 1,600 mm with 700 kg retained at maximum height and 1,000 kg at ground level.

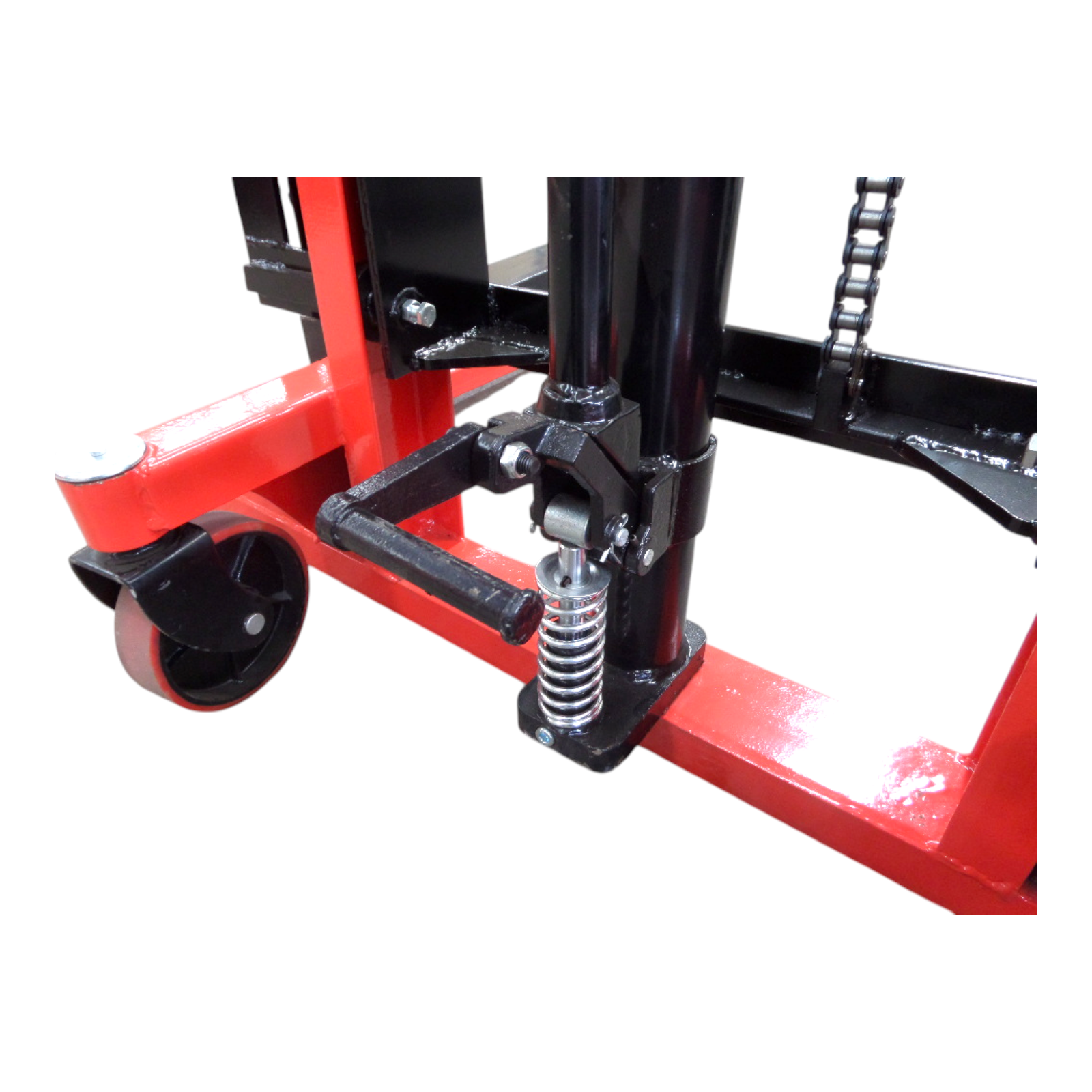

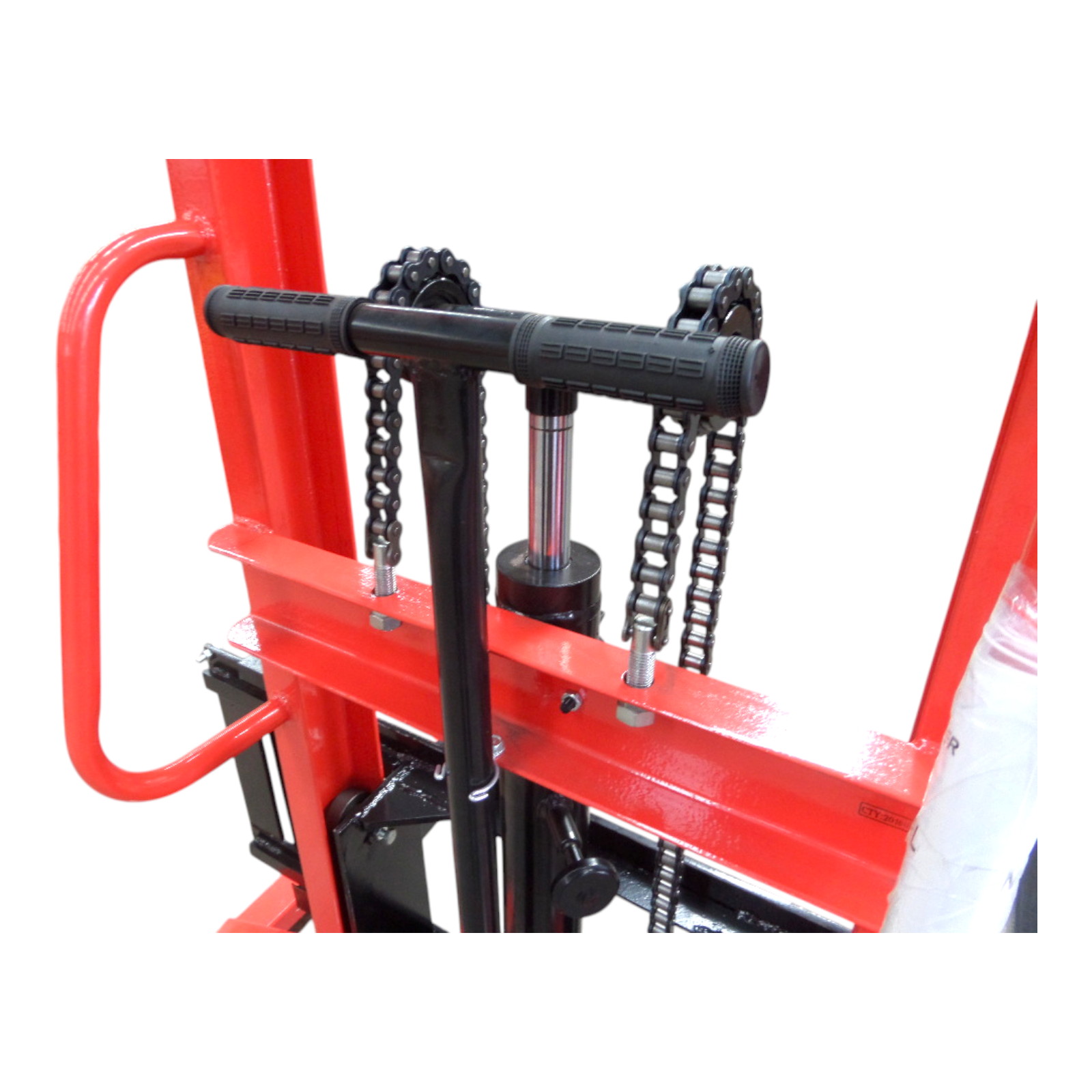

Fully Manual - No Charging Required
Hand or foot pedal pump for lifting. Manual push/pull for floor movement. No batteries, no charging, no electrical maintenance.
| Specification | Value |
|---|---|
| Load Capacity | 1,000 kg (ground) / 700 kg (at 1,600 mm) |
| Duty Rating | Light Duty - suited to light loads or occasional heavy use |
| Operation Type | Fully Manual - hand/foot pedal pump, manual push/pull |
| Max Lift Height | 1,600 mm |
| Min Fork Height | 120 mm |
| Fork Length | 1,100 mm |
| Fork Width | 90 mm |
| Adjustable Forks Width | 210–1,230 mm (outer tips) |
| Clearance Between Forks | 0–650 mm |
| Clearance Between Legs | 1,220 mm |
| Front Wheels | Ø80 × 50 mm |
| Rear Wheels | Ø180 × 50 mm |
| Measurement | Value |
|---|---|
| Overall Dimensions (L × W × H) | 158 × 146 × 204 cm |
| Unit Weight | 145 kg |
| Shipping Dimensions (skid) | 163 × 149 × 219 cm |
| Shipping Weight | 175 kg |
Niuli Machinery Manufacture Co., Ltd. is a specialist material handling equipment manufacturer founded in 1999 and based in Heshan City, Guangdong Province, China. Operating from a 330,000 m² production facility certified to ISO 9001:2015, Niuli exports to more than 120 countries and produces over 100 models of material handling equipment.
