The Niuli CR10 is a 10,000 kg capacity heavy-duty container loading ramp built from 8 mm thick steel throughout with extra steel beam supports for long-term durability. Designed to bridge the gap between ground level and shipping containers, the CR10 allows forklifts to drive in and out of containers, over curbs, and across loading transitions safely.
A non-slip surface provides traction for forklift tyres under load. Side-mounted forklift pockets allow the ramp itself to be repositioned easily using a forklift, eliminating the need for manual handling of the 260 kg unit.
10,000 kg Rated Capacity
Handles fully loaded forklifts and their cargo up to a combined 10,000 kg. The 8 mm thick steel construction with extra steel beam supports is built for a lifetime of continuous heavy use.

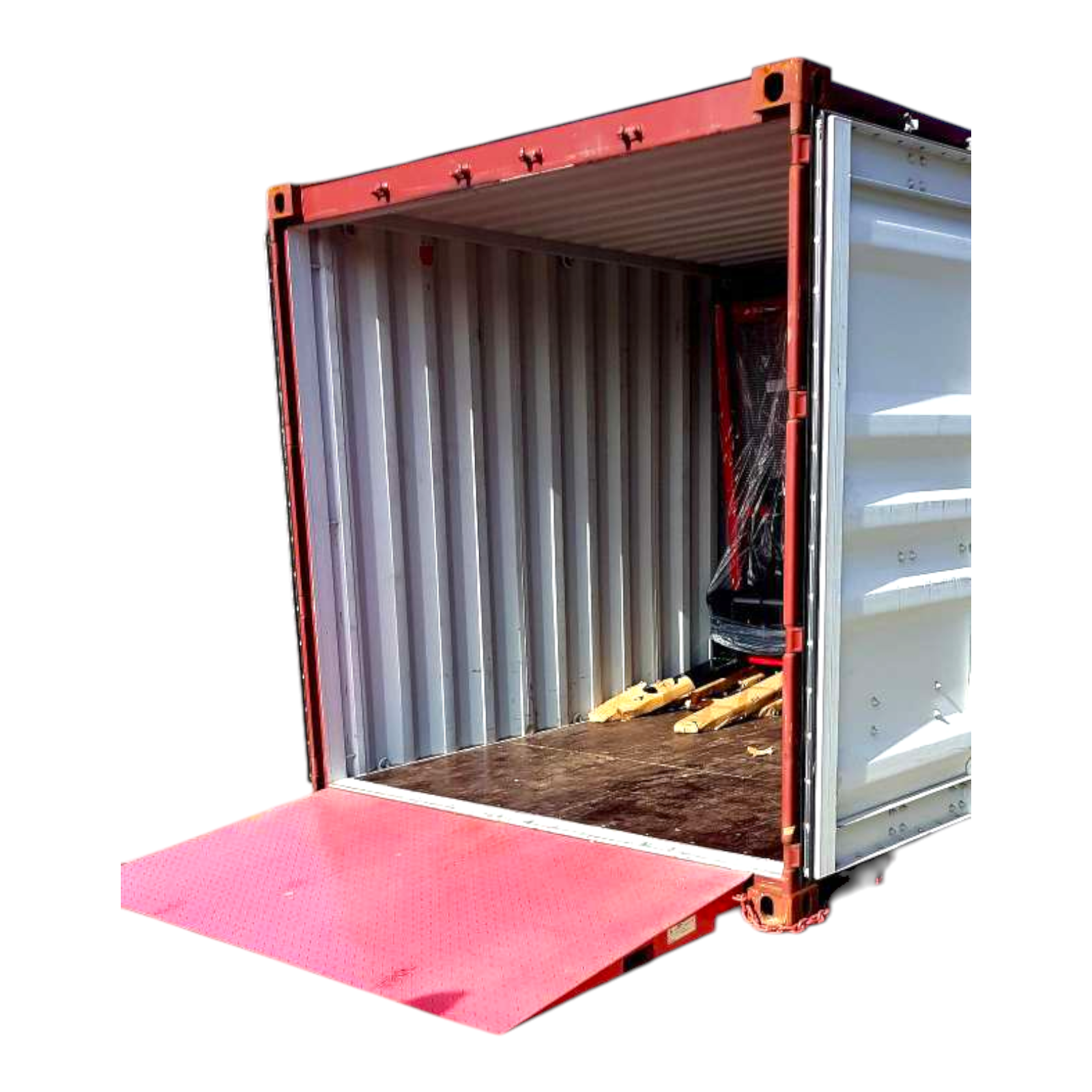

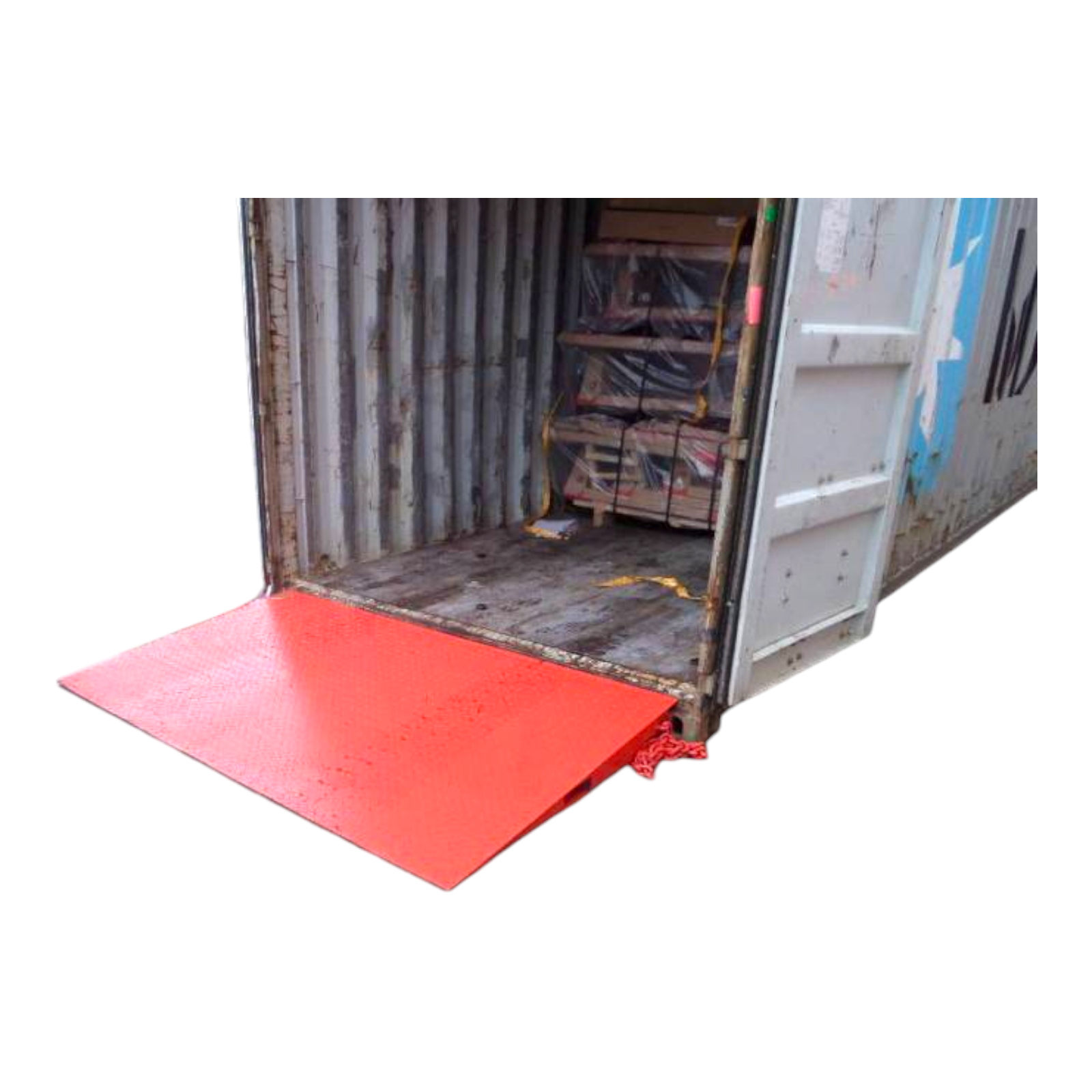

Drive Into Any Container
Bridges the height gap between ground level and shipping containers. Also suitable for driving over curbs, loading dock edges, and any other ground-to-elevated-surface transitions where forklifts need a ramp.

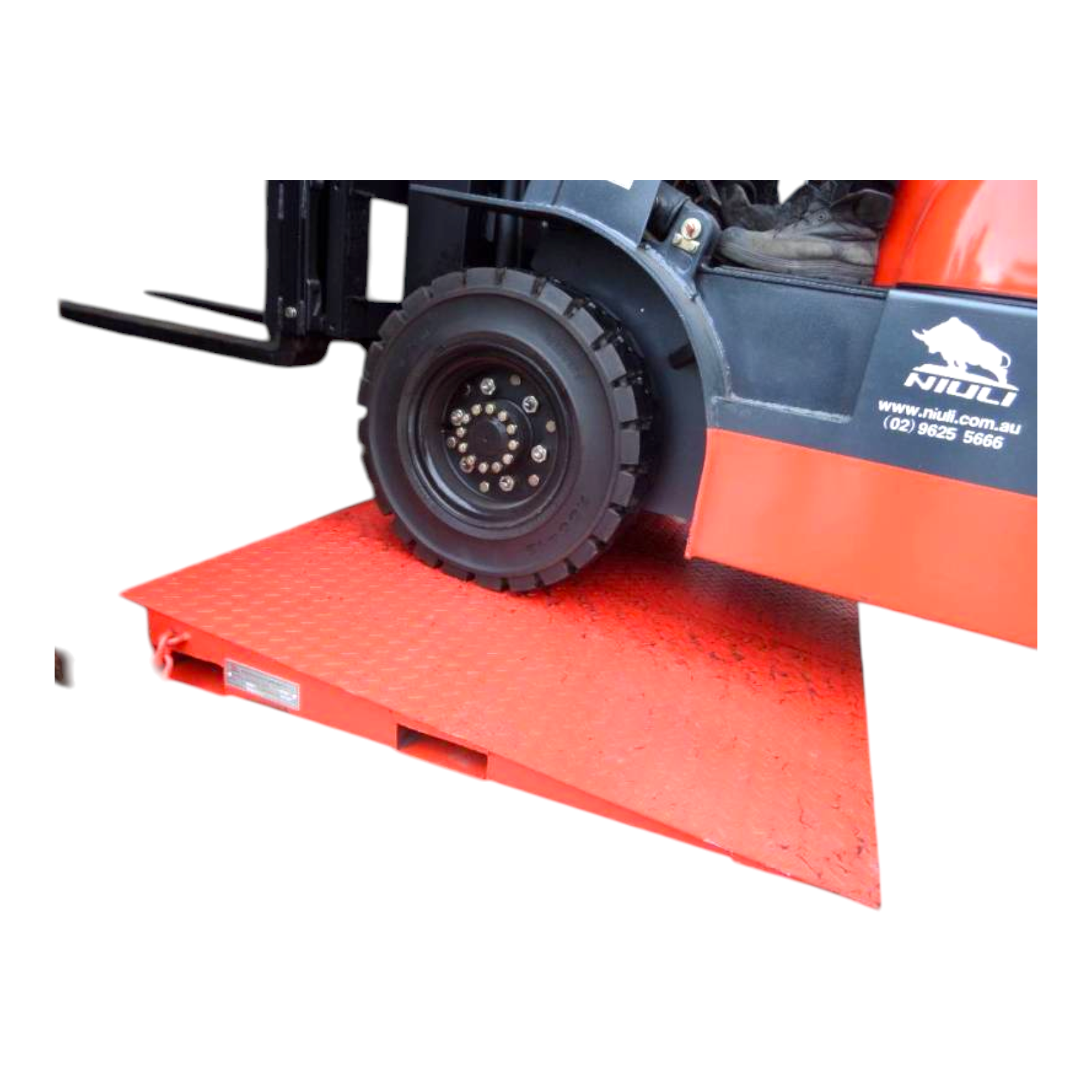

Non-Slip Surface
The ramp surface is textured for traction, providing grip for forklift tyres under load in both dry and wet conditions. Reduces the risk of wheel slip during incline transitions.
Forklift-Movable
Side-mounted forklift entry pockets (155 × 55 mm) allow the ramp to be picked up and repositioned by forklift. No manual lifting of the 260 kg ramp required.
| Specification | Value |
|---|---|
| Load Capacity | 10,000 kg |
| Steel Thickness | 8 mm throughout |
| Construction | Heavy-duty steel with extra steel beam supports |
| Surface | Non-slip |
| Forklift Entry Pockets | Side-mounted, 155 × 55 mm |
| Suitable For | Shipping containers, curbs, loading dock edges |
| Measurement | Value |
|---|---|
| Ramp Dimensions (L × W × H) | 126 × 225 × 16 cm |
| Ramp Weight | 260 kg |
| Shipping Dimensions (pallet) | 232 × 138 × 38 cm |
| Shipping Weight | 290 kg |
Niuli Machinery Manufacture Co., Ltd. is a specialist material handling equipment manufacturer founded in 1999 and based in Heshan City, Guangdong Province, China. Operating from a 330,000 m² production facility certified to ISO 9001:2015, Niuli exports to more than 120 countries and produces over 100 models of material handling equipment.
